TWIST Mount EVF Spud

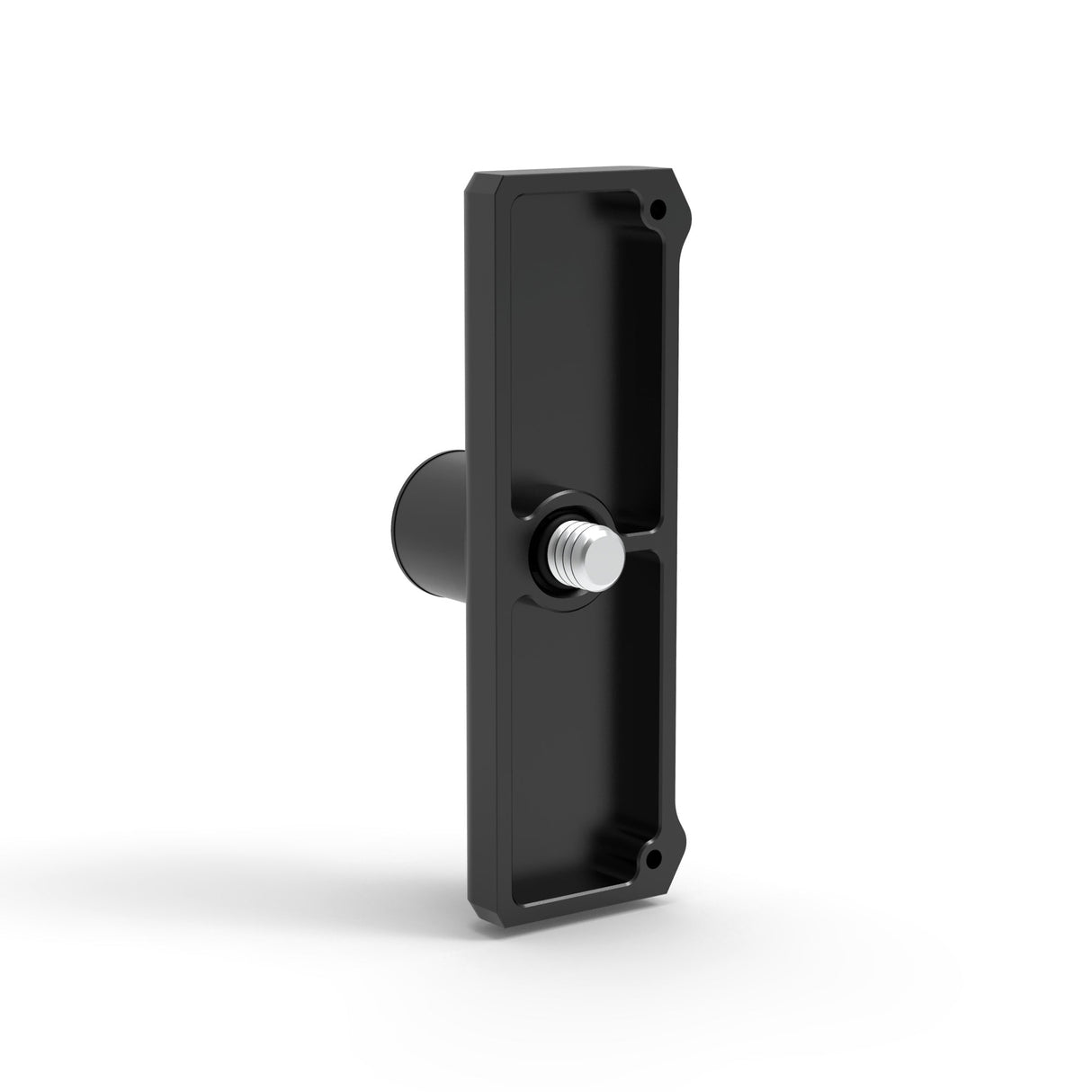

• TWIST Mount EVF Spud for Canon C400, C300mkIII, C500mkII, LM-V2
  • Works with Canon C400, C300mkIII, C500mkII, and LM-V2

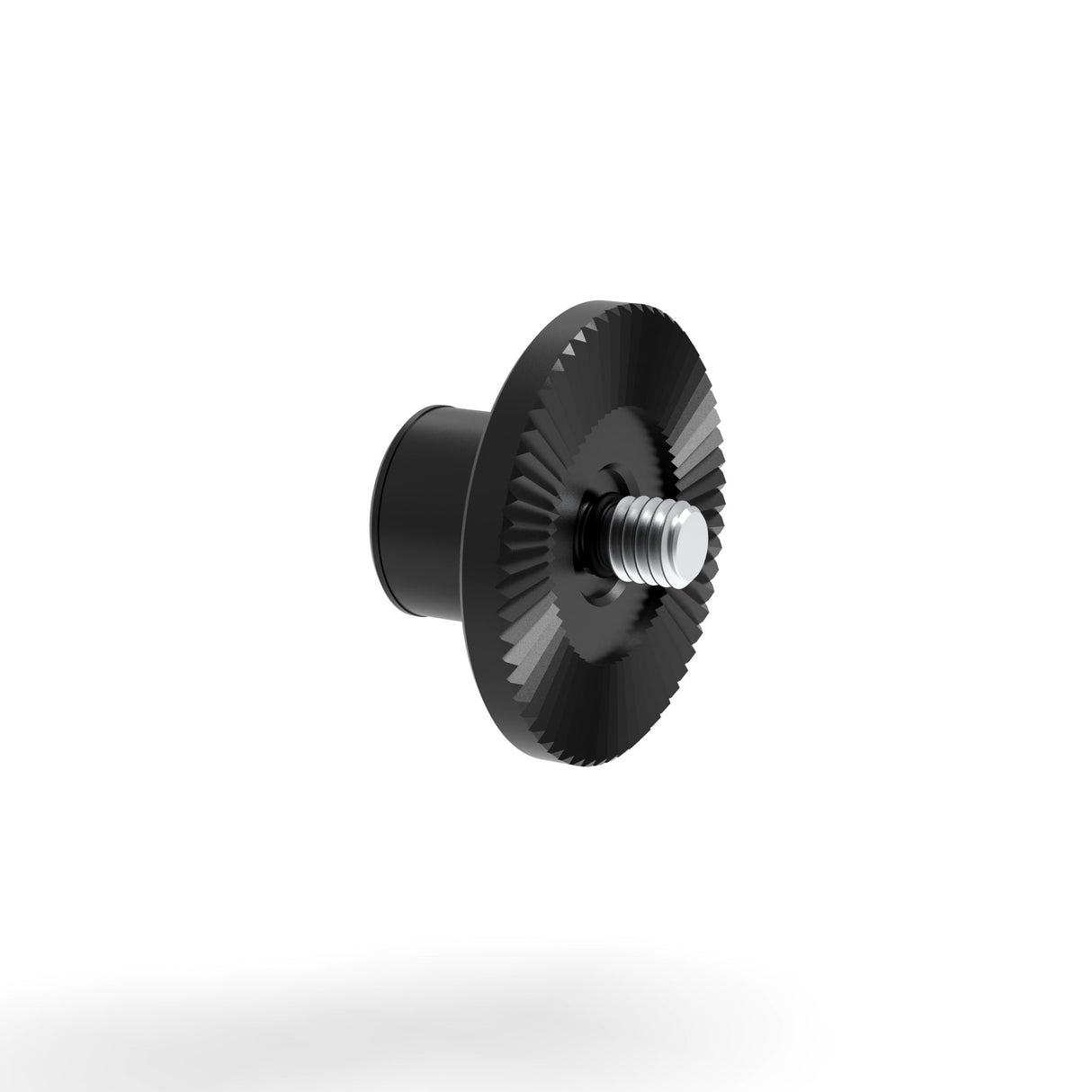

• TWIST Mount EVF Spud with ARRI M6 Rosette

  • Works with Z CAM 2.89" EVF101
  • Works with original PORTKEYS OEYE

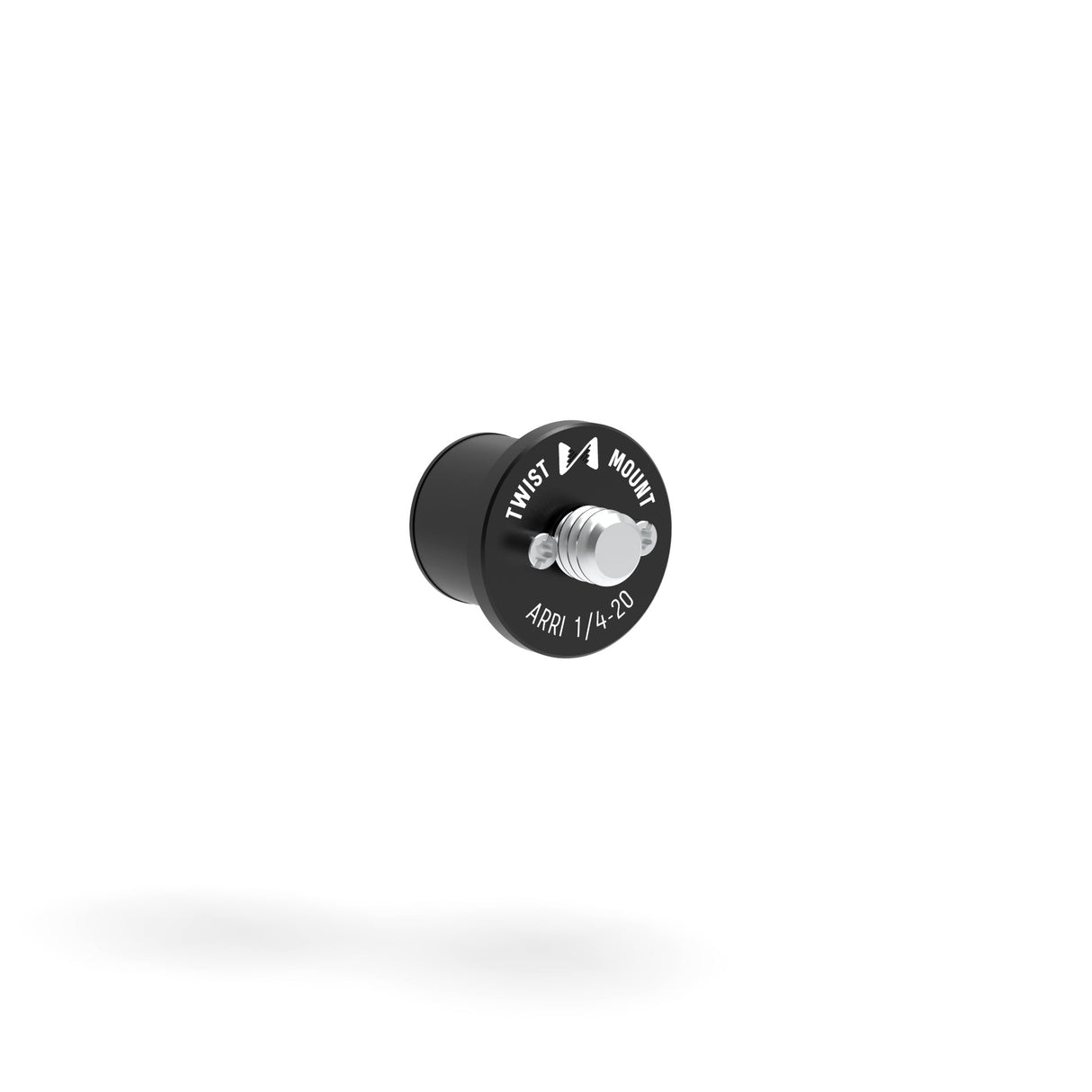

• TWIST Mount EVF Spud with ARRI 1/4-20
  • Works with Blackmagic Design PYXIS Monitor
  • Works with recent SmallHD monitors like Indie 5, Cine 5, and Ultra 5
  • Works with ARRI Camera Control Monitor CCM-1

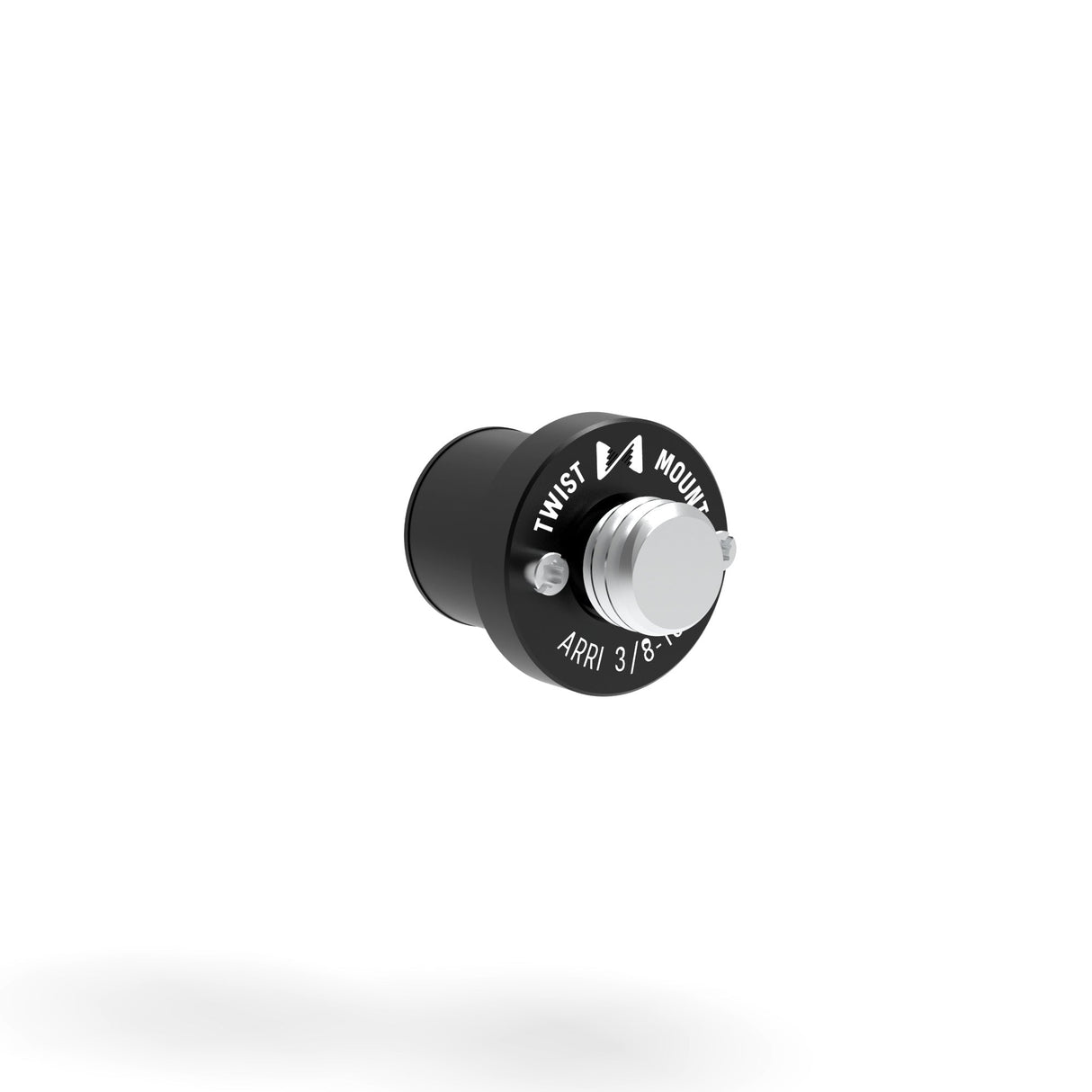

• TWIST Mount EVF Spud with ARRI 3/8-16

  • Works with Atomos Shogun Ultra Monitor-Recorder (ATOMSHG002)

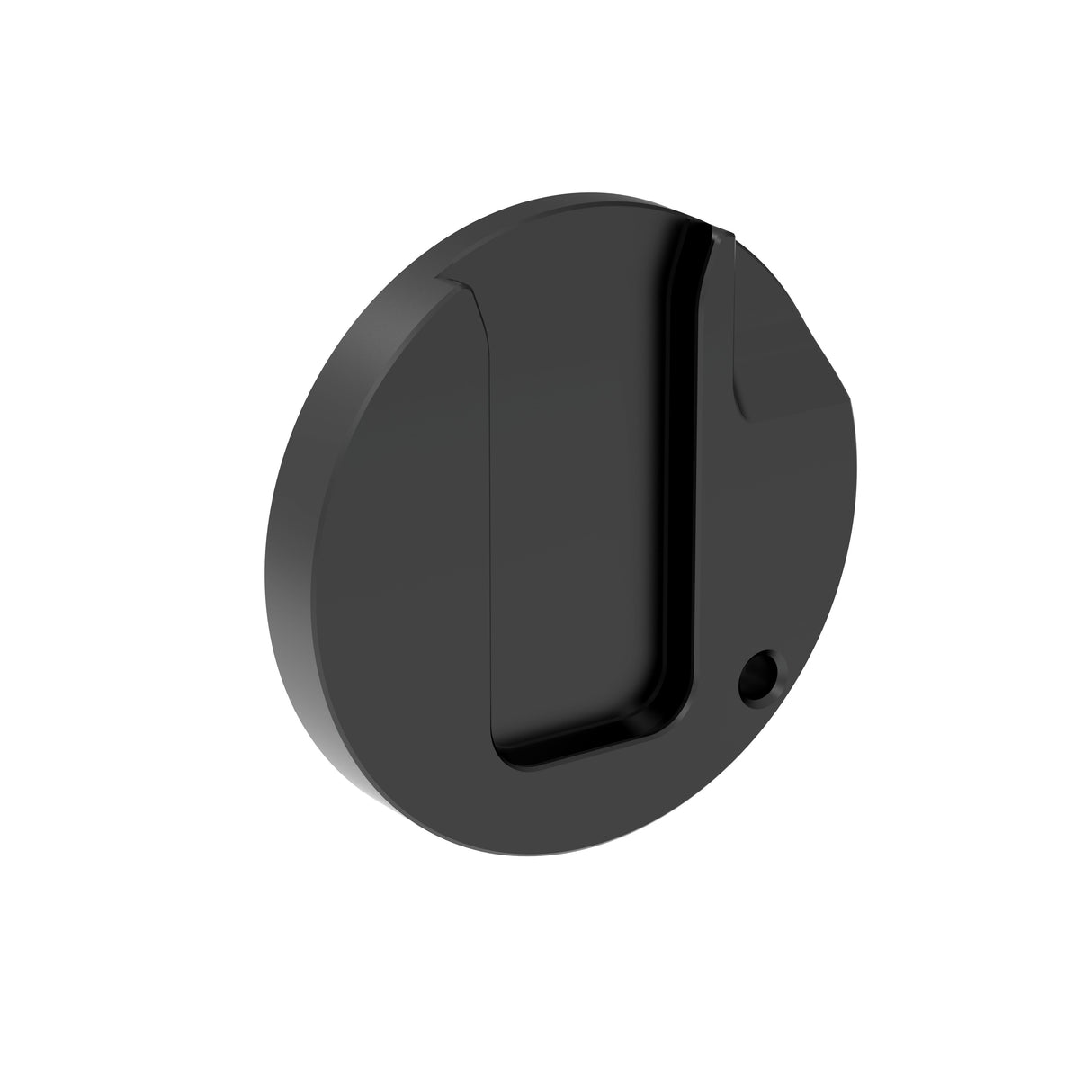

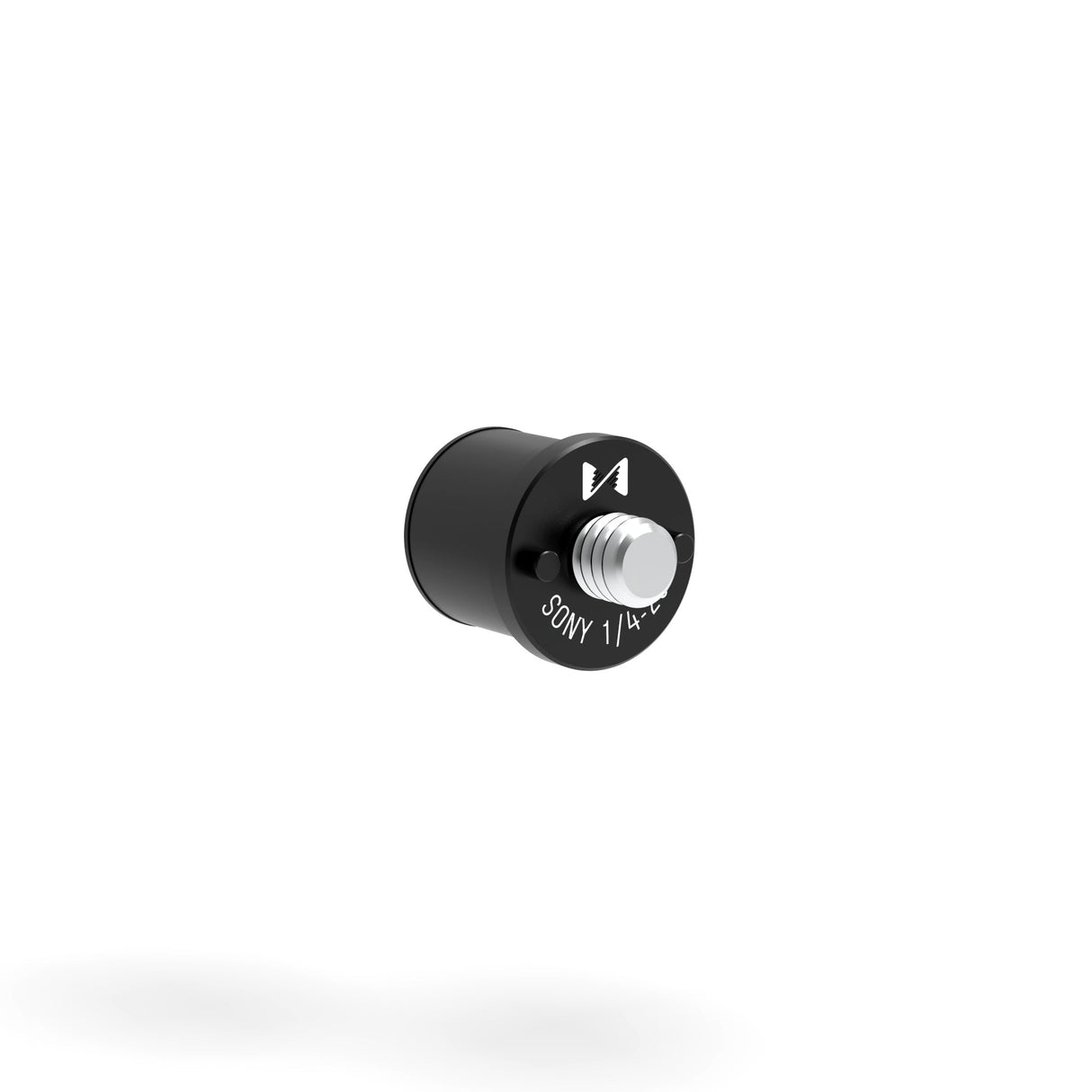

• TWIST Mount EVF Spud with Sony / PortKeys 1/4-20

  • Works with Sony Burano directly and also the EVF Pivot Adapter

  • Works with PORTKEYS LH7P (be careful, the monitor is plastic)
    Works with PORTKEYS 5” BM5 IV

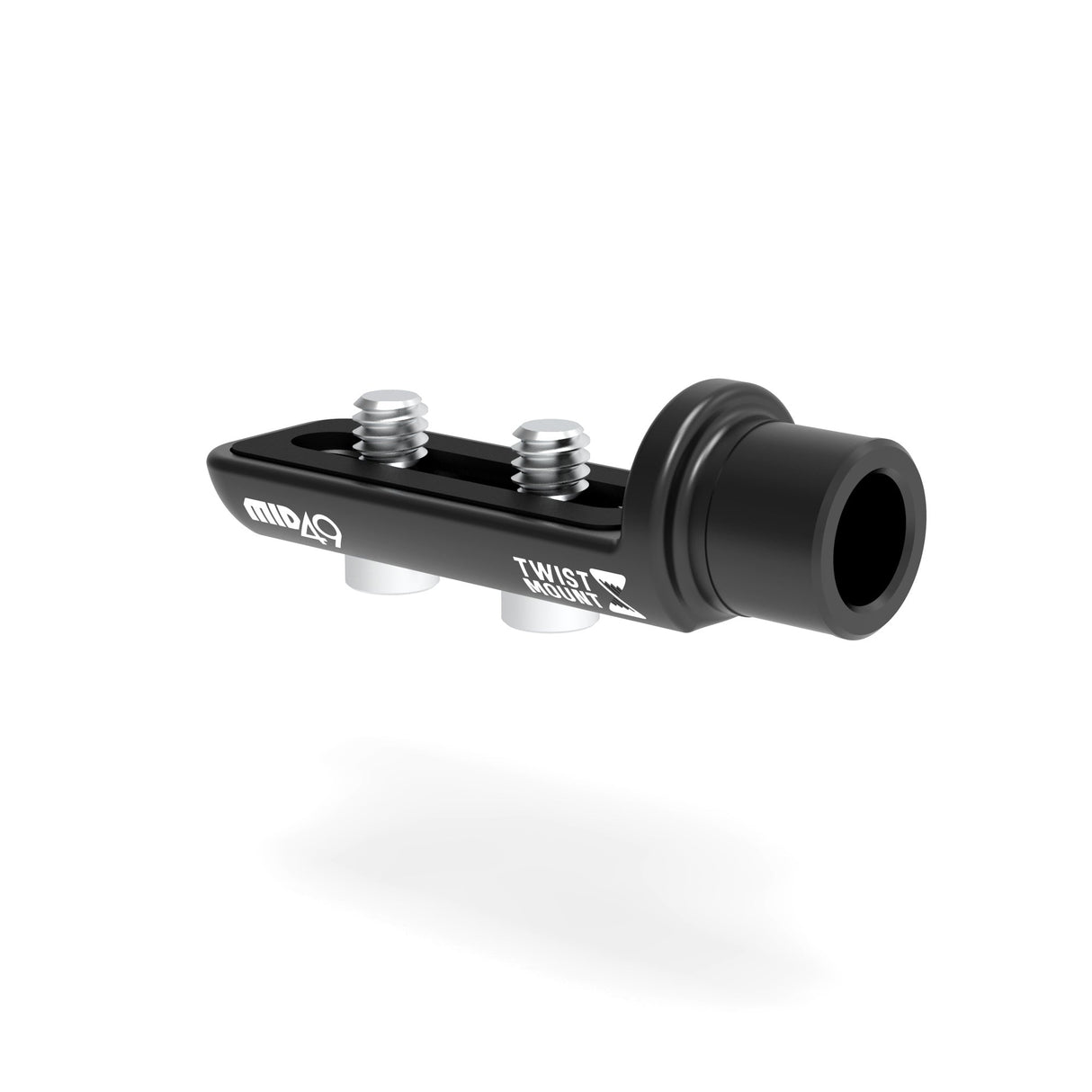

• TWIST Mount EVF Spud with L Bracket 1/4-20

  • Includes the L Bracket with two 1/4-20 screws

  • Works with PORTKEYS LEYE III (note their HDMI cable may conflict with NATO rail in certain positions)

  • Works with original RED DSMC1 EVF

  • This can also be used in combination with the Knuckle to mount wireless transmitters and other accessories to a NATO rail

• TWIST Mount EVF Spud with Female ARRI 1/4-20

  • Works with any 1/4-20 product including those with ARRI spaced locating pins (3mm diameter pin on 10.4mm spacing center to center)

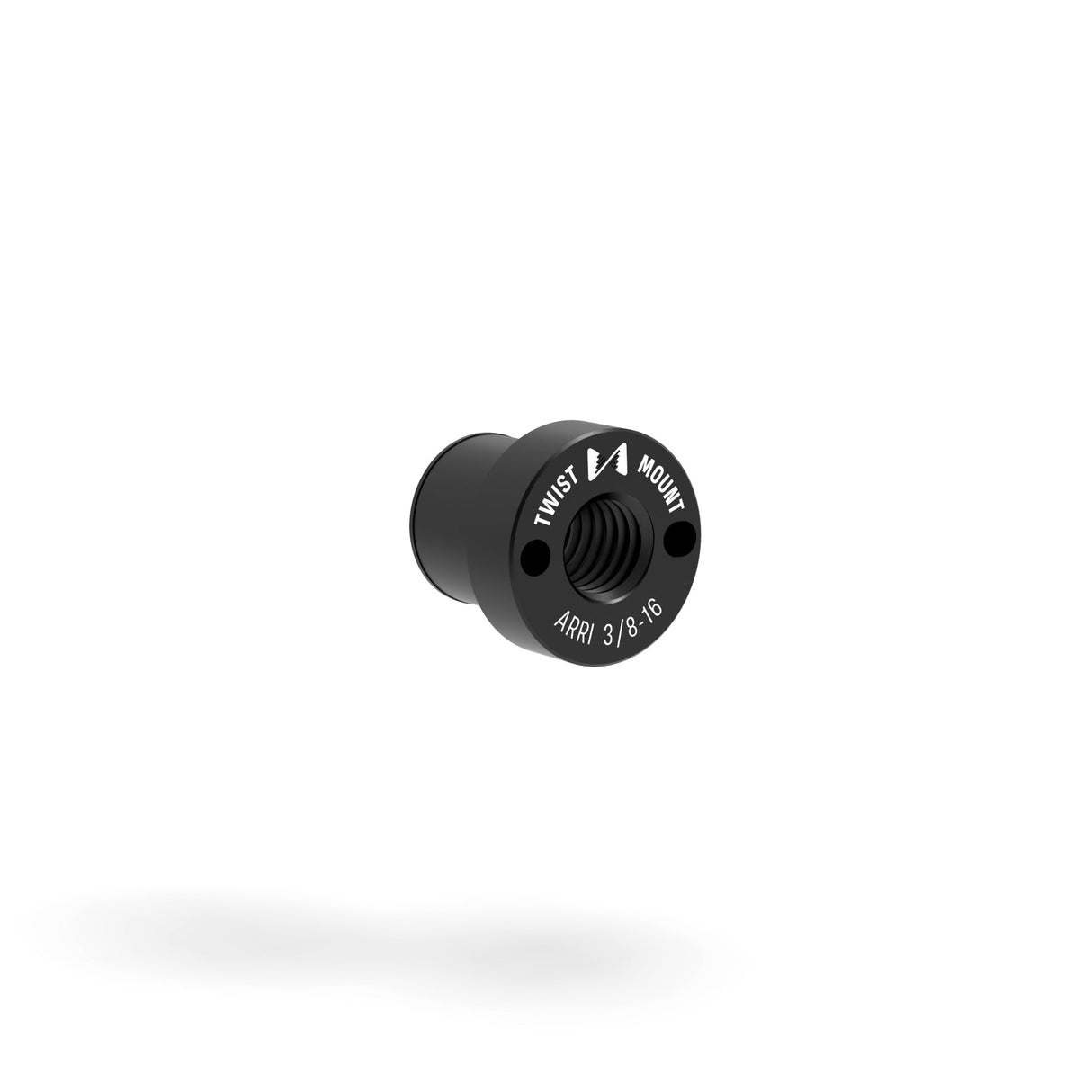

• TWIST Mount EVF Spud with Female ARRI 3/8-16

  • Works with any 3/8-16 product including those with ARRI spaced locating pins (3mm diameter pin on 15mm spacing center to center)

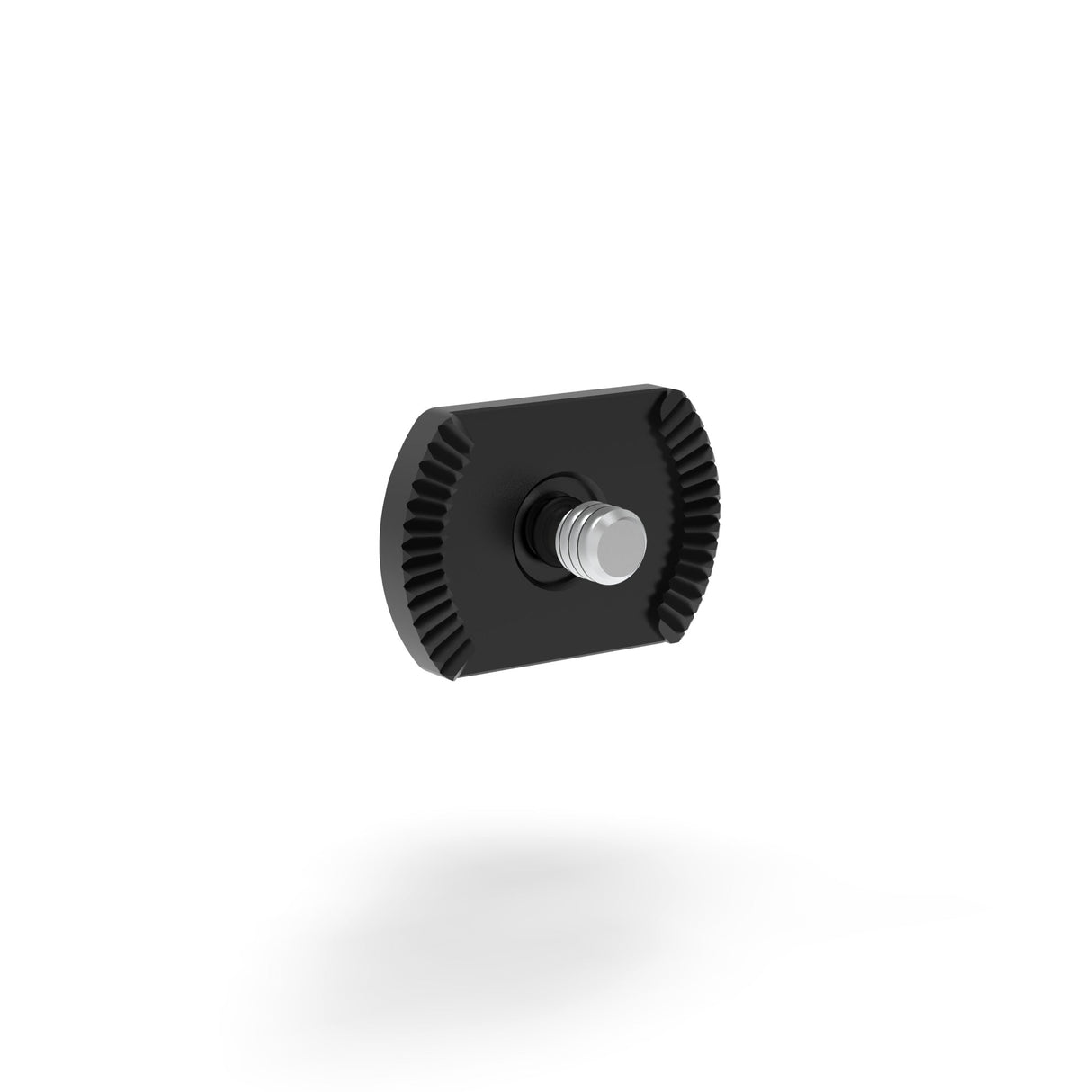

• TWIST Mount EVF Spud for 1/4-20 Rosette
  • Works with 1/4-20 Rosette on the Kinefinity EAGLE SDI (or HDMI) e-Viewfinder

  • Works with Zacuto Gratical, Gratical Eye, and Kameleon Pro EVF
  • This is NOT a regular ARRI rosette

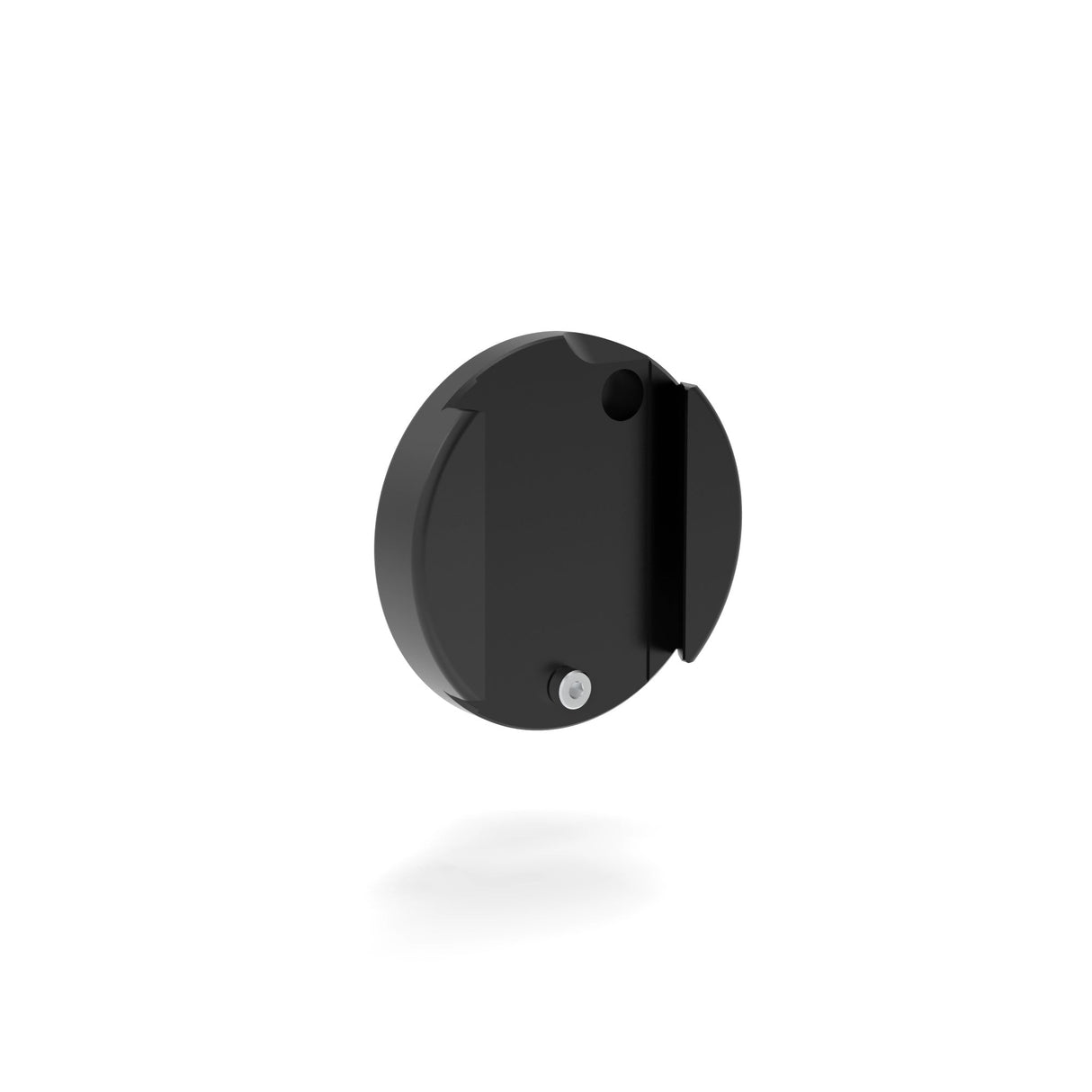

• TWIST Mount EVF Spud for ARRI Viewfinder Wedge
  • Works with ARRI standard EVF wedge products like EVF-1, EVF-2, MVF-1, MVF-2

  • Works with other ARRI wedge adapters like ARRI VFA-4, K2.0015520, etc.

  • Works with 3rd party products that utilize ARRI-style mounting wedges.

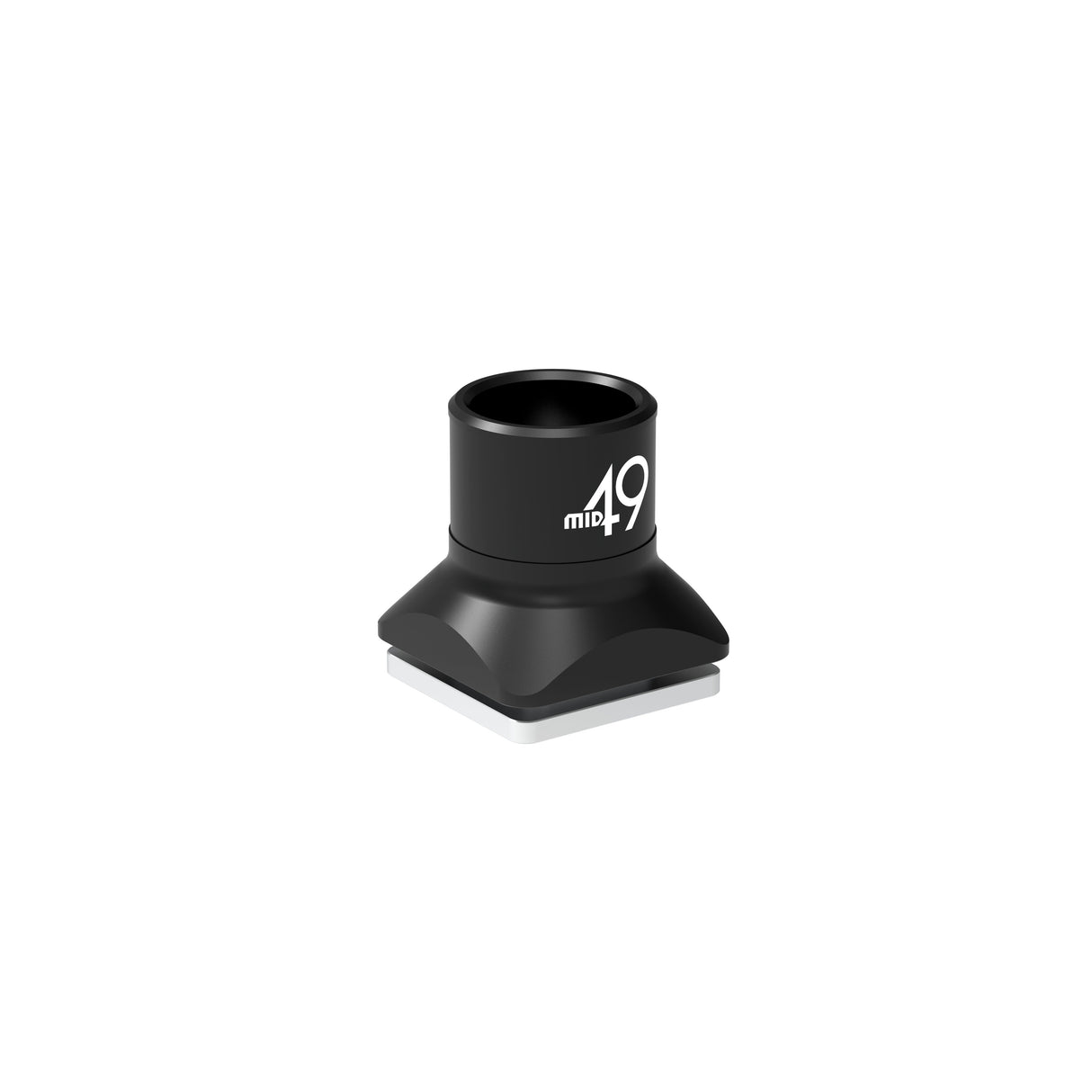

• TWIST Mount EVF Spud with Old-Style SmallHD 1/4-20

  • Works with legacy 5" SmallHD monitors like 501, 502, Focus 5, Focus Bolt, Action 5

  • Works with legacy 7" SmallHD monitors like 701, 702, Focus 7, Cine 7, Indie 7

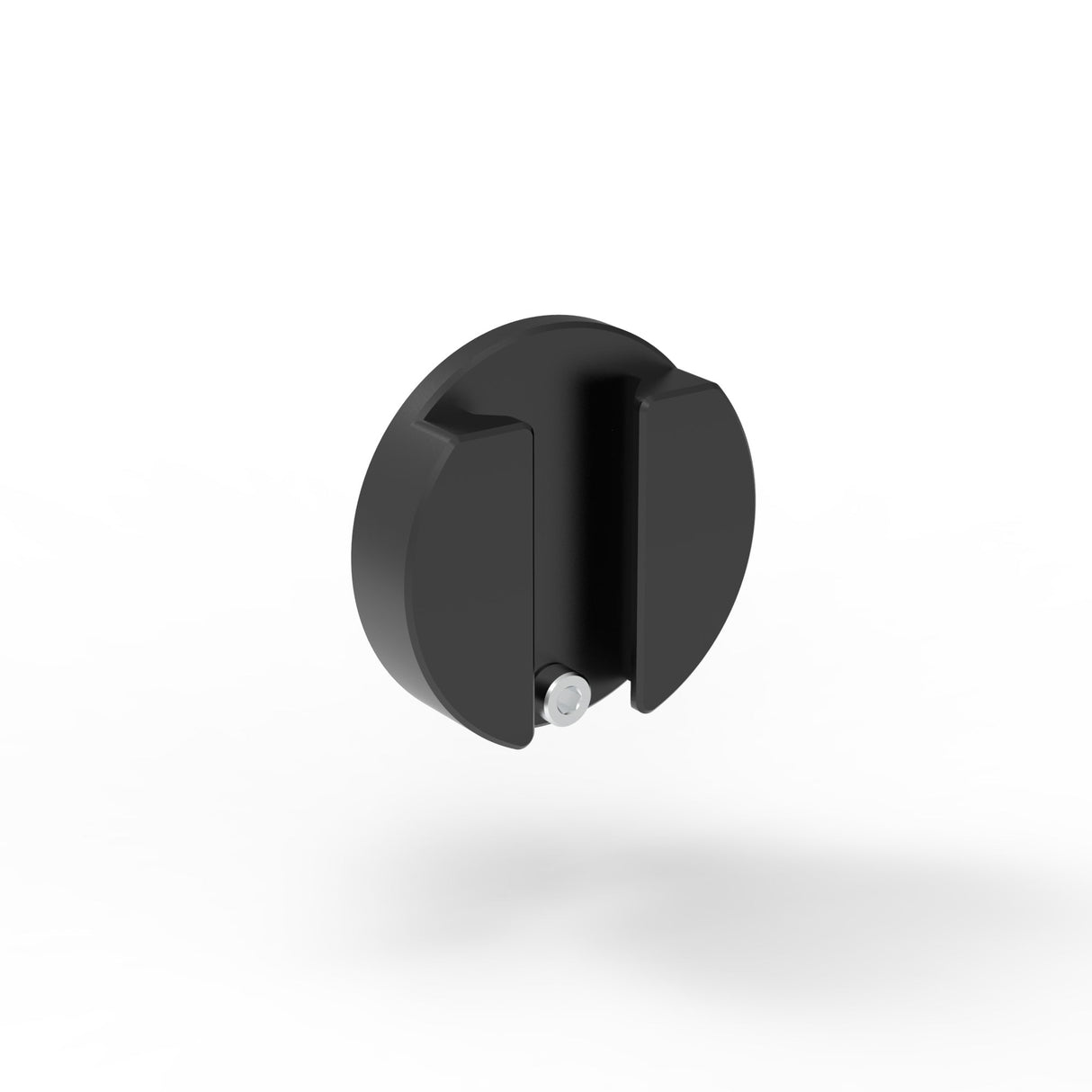

• TWIST Mount EVF Spud for Blackmagic Viewfinder Wedge

  • Works with URSA Cine EVF - CINEURSAB/EVF

  • Works with URSA Cine EVF Extension - CINEURSAB/EVFEXT

  • Works with PYXIS Monitor Kit - CINEURSABB/AMKIT
• TWIST Mount Monitor Right Angle Adapter + Spud with Old-Style SmallHD 1/4-20
  • TWIST Mount Monitor Right Angle Spud Adapter allows monitors with top and bottom mounting points to be adapted to the TWIST Mount System.
  • Older version SmallHD monitors where locating pins are short and wide
  • Works with SmallHD Focus 5, Focus Pro for RED, 502, 503, Action 5
  • Works with SmallHD AC7, Indie 7, 702, 703, Cine 7
• TWIST Mount Monitor Right Angle Adapter + Spud with ARRI 1/4-20
  • TWIST Mount Monitor Right Angle Spud Adapter allows monitors with top and bottom mounting points to be adapted to the TWIST Mount System.
  • Works with Blackmagic Video Assist (remove locating pins)
  • Works with Atomos Shinobi, Ninja, Shogun (remove locating pins)
  • Works with recent SmallHD monitors like Indie 5, Cine 5, and Ultra 5
  • Works with TVLogic F-5A, F-7H, F-7HS (remove locating pins)

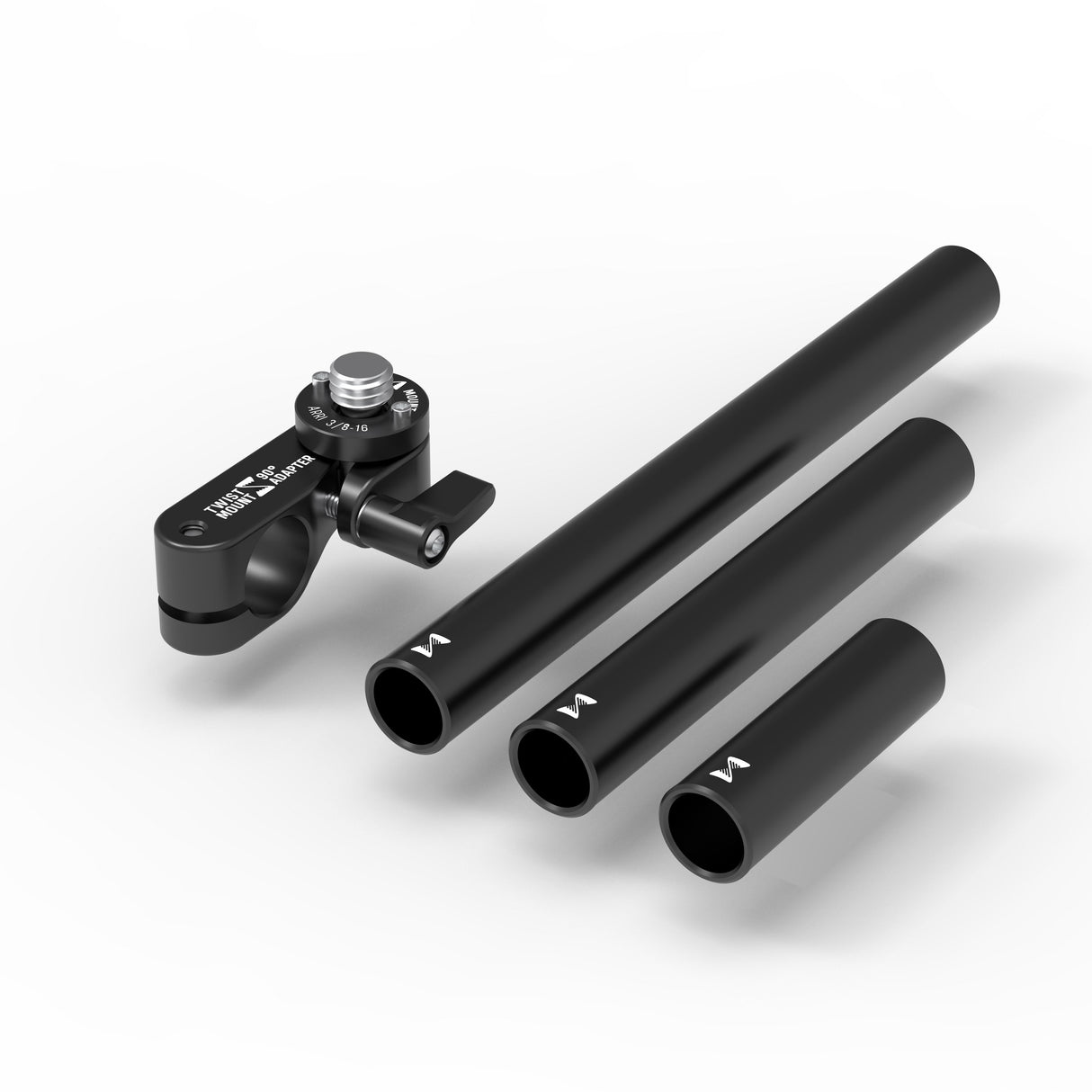

• TWIST Mount Monitor Right Angle Adapter + Spud with ARRI 3/8-16
  • TWIST Mount Monitor Right Angle Spud Adapter allows monitors with top and bottom mounting points to be adapted to the TWIST Mount System.
  • Works with Atomos Shogun Monitor-Recorder (ATOMSHG002)
• TWIST Mount Monitor Right Angle Adapter + Spud with Sony / PortKeys 1/4-20
  • Works with PORTKEYS BM5 IV, BM5 IV WR, LH5P II
  • Works with PORTKEYS PT5 II, PT6
  • Works with PORTKEYS LH7P, LH7H, HD7H
  • Works with PORTKEYS BM7 II DS U, HS8

TWIST Mount EVF Spud for Canon C300mkIII, C500mkII, LM-V2 Dimensions
Product Weight: 0.78oz (22g)
Product Dimensions (WxLxH): 0.9 x 2.9 x 0.9in (22 x 73 x 23mm)

TWIST Mount EVF Spud with ARRI M6 Rosette Dimensions
Product Weight: 0.4oz (12g)
Product Dimensions (WxLxH): 1.3 x 1.3 x 0.8in (32 x 32 x 19mm)

TWIST Mount EVF Spud with ARRI 1/4-20 Dimensions
Product Weight: 0.4oz (10g)
Product Dimensions (WxLxH): 0.8 x 0.8 x 0.75in (20 x 20 x 19mm)

TWIST Mount EVF Spud with ARRI 3/8-16 Dimensions
Product Weight: 0.4oz (12g)
Product Dimensions (WxLxH): 0.8 x 0.8 x 0.8in (20 x 20 x 21mm)

TWIST Mount EVF Spud with Sony 1/4-20 Dimensions
Product Weight: 0.3oz (8g)
Product Dimensions (WxLxH): 0.7 x 0.7 x 0.8in (17 x 17 x 19mm)

TWIST Mount EVF Spud with L Bracket 1/4-20 Dimensions
Product Weight: 0.6oz (18g)
Product Dimensions (WxLxH): 0.8 x 2.5 x 0.8in (20 x 63 x 19mm)

TWIST Mount EVF Spud with Female ARRI 1/4-20 Dimensions
Product Weight: 0.4oz (10g)
Product Dimensions (WxLxH): 0.8 x 0.8 x 0.8in (20 x 20 x 19mm)

TWIST Mount EVF Spud with Female ARRI 3/8-16 Dimensions
Product Weight: 0.3oz (8g)
Product Dimensions (WxLxH): 0.8 x 0.8 x 0.8in (20 x 20 x 19mm)
