FieldCast | SKU:
FC-co131

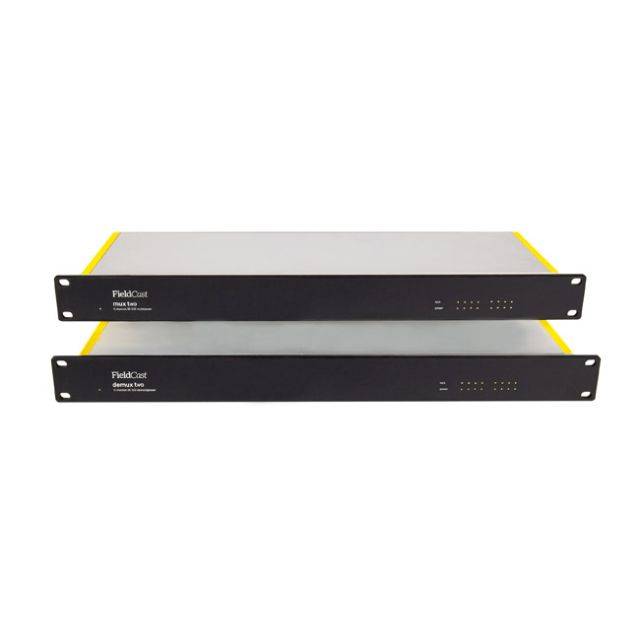

FieldCast Mux/Demux Two 3G Plus (8x SDI In/Out & Ethernet over one Fiber Strand)
Regular price
$8,998.00
Unit price
Shipping calculated at checkout.
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Online Only — Ships from Our SupplierIn stock at our distribution partner and ships direct to you.
Key Features
The FieldCast Mux Two and Demux Two (Plus) pair transports eight independent 3G SDI channels plus an Ethernet connection over a single strand of single-mode fiber. It's built for productions with limited fiber runs or a need to minimize cable count in the field, without giving up channel density or a data connection. Because the signal path is unprocessed, it integrates directly into an existing SDI infrastructure.
- 8-channel 3G SDI plus Ethernet: Combines eight independent 3G (2.97GHz) SDI channels and an Ethernet connection onto one fiber strand.
- SMPTE compliant: Meets SMPTE 259M, 344M, 292M, and 424M, accepting all SD and HD standards up to 1080p60.
- Lossless signal path: No processing is applied to the SDI signal, so what goes in comes out unchanged.
- CWDM multiplexing technology: Robust thin-film wavelength-division multiplexing carries all eight channels over the unit's maximum rated fiber distance.
- 1RU all-aluminum enclosure: Rack-mount design with LED indicators for power, per-channel activity, and SDI signal presence.
