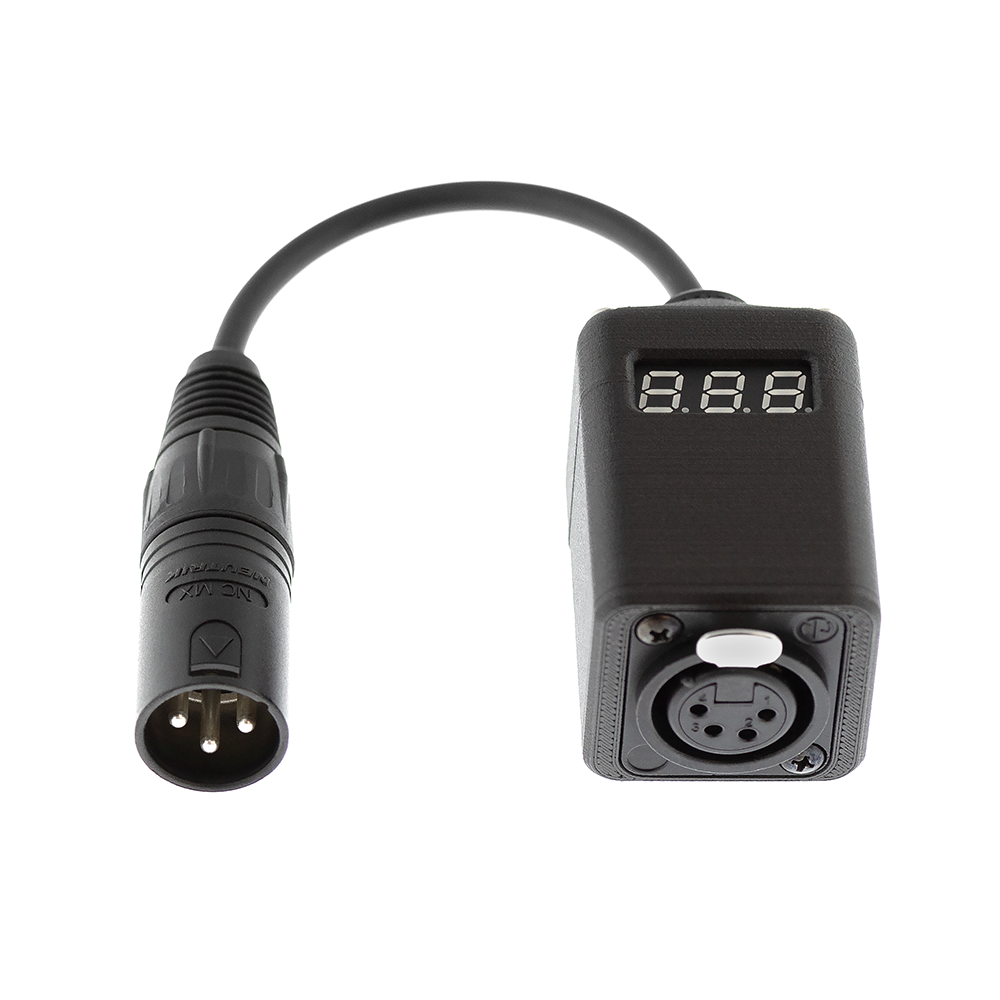

3-4 Adapter

The 3-4 Adapter converts a 28V 3-pin XLR Block Battery output to 15V 4-pin XLR for powering 14.4V accessories. This is especially useful when block batteries are 28V only, with no outputs for 14.4V-only accessories. Includes integrated source voltage readout.

Features:

• Input range — 15V-45V
• Regulated output — 15V
• Pinout — 3-pin XLR: 1) GND, 2) +VDC; 4-pin XLR: 1) GND, 4) +VDC ¹
• Integrated voltage meter — reads input voltage (voltage above 30V will read as 30V)
• Maximum continuous output current — 3A (2.7A typical)
• Protections — soft-start limits inrush current & gradually ramps output voltage, reverse-voltage protection up to 40 V, over-current protection, short-circuit protection, & over-temperature shut off
• Typical efficiency — 95%
• Enclosure dimensions — 1.38" x 1.38" x 2.5" (35mm x 35mm x 57mm)
• Weight — 3.7 oz (106 g)
• Cable Length — 4" (10cm)

¹ Our 24V XLR products use the standard wiring scheme and will need an adapter to work with Panavision equipment. We also offer customization if you plan on using these only with Panavision equipment. More information can be found here. Please contact us to inquire about customization.

All Rencher Industries products that use printed parts carry a 5-year warranty on the printed material. If your printed part warps, cracks, or fails for any reason, we will replace the defective printed part at no cost. Cable assemblies use genuine parts and high-quality cable. Cable assemblies are made in the USA.
