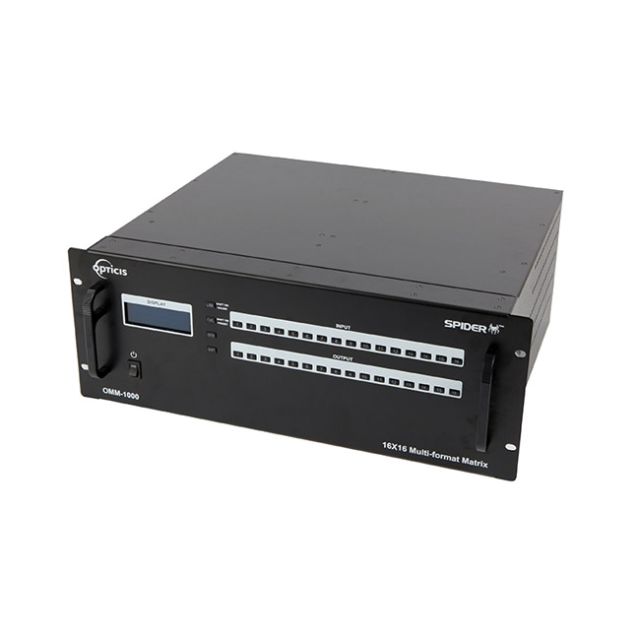

OptoLink 16x16 DVI/HDMI/SDI/DisplayPort Matrix

OptoLink 16x16 DVI/HDMI/SDI/DisplayPort Matrix
OMM1000 enables you to switch up to 16 DVI /HDMI /SDI /DisplayPort inputs to 16 digital displays by using general PC software like Hyperlink terminal, telnet or web browser. Easy programming feature is accomplished in various manners such as manual input of front key or command line (ASCII or Binary code)input with various interfaces of RS 232, and TCP/IP and it offers you flexible installation with other video controllers or control software. The input and output cards are composed of 4 ports, therefore user can configures any input and output channels from 4x4 to 16x16 by plugging the cards into OMM 1000 mainframe.
In case of Dual link DVI card (DDVI 2EI / DDVI 2EO), it is composed of 2 ports, therefore configuration for input and output channels are from 2x2 to8x8. It equips electrical DVI, HDMI, SDI, DisplayPort and optical DVI(SDVI 1FI/SDVI 1FO) input and output cards. Optical DVI input and output cards works perfectly with OPTICIS 1 fiber DVI extension module, DVFX 100 and maxi mum 1Km DVI signal extension can be managed with this combination. It also supports wide range compatibility with respect to systems, consisting of various sources and various digital monitors.
It has been designed not only to fully execute the DDC (Display Data Channel)/HDCP (High bandwidth Digital Content Protection) function(Electrical DVI and HDMI cards only), but also to have users designate EDID to inputs for wide compatibility. Embedded video signal generator and diagnostic function help the user solve the installation problem with easy and optional quad multi viewer card saves the installation cost.
