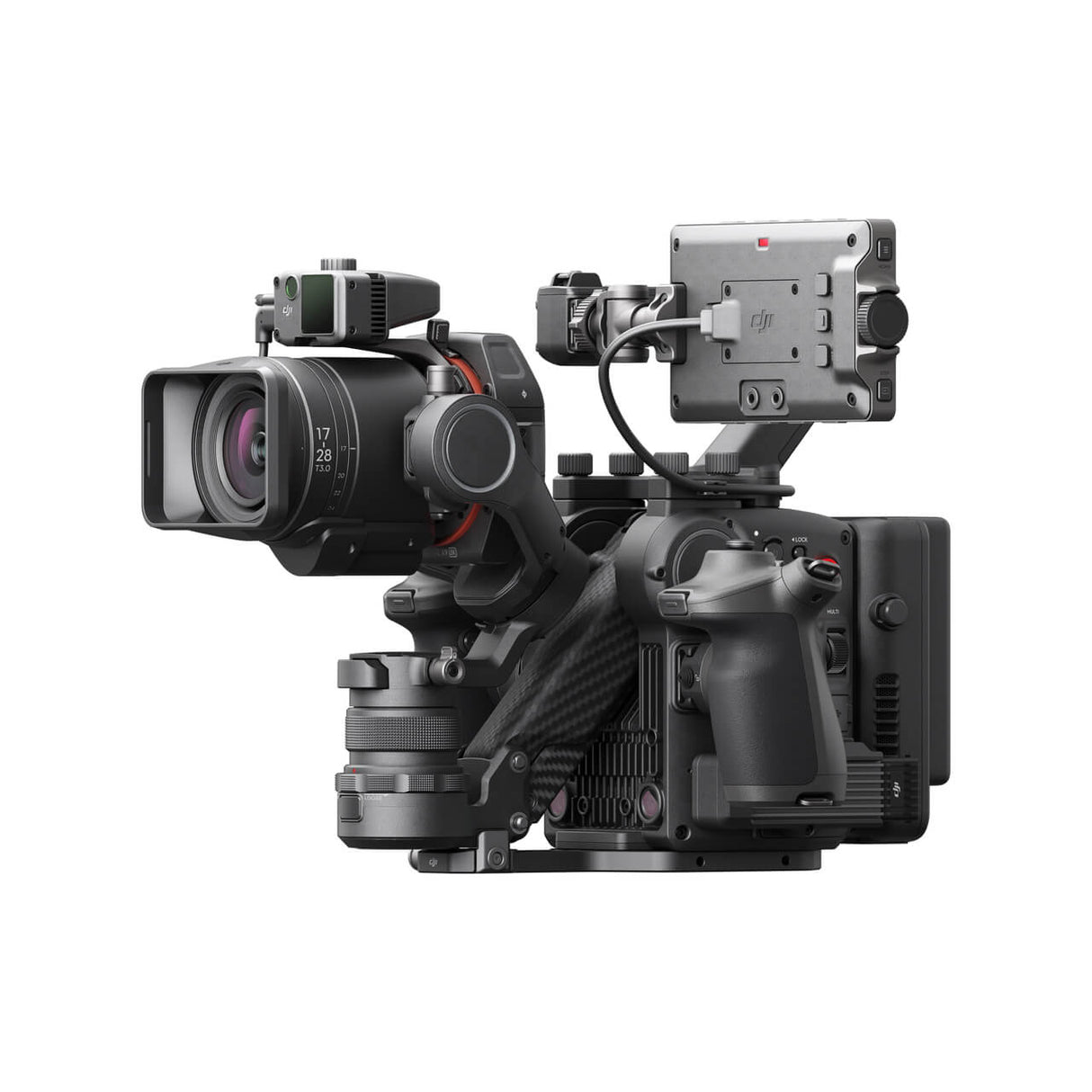

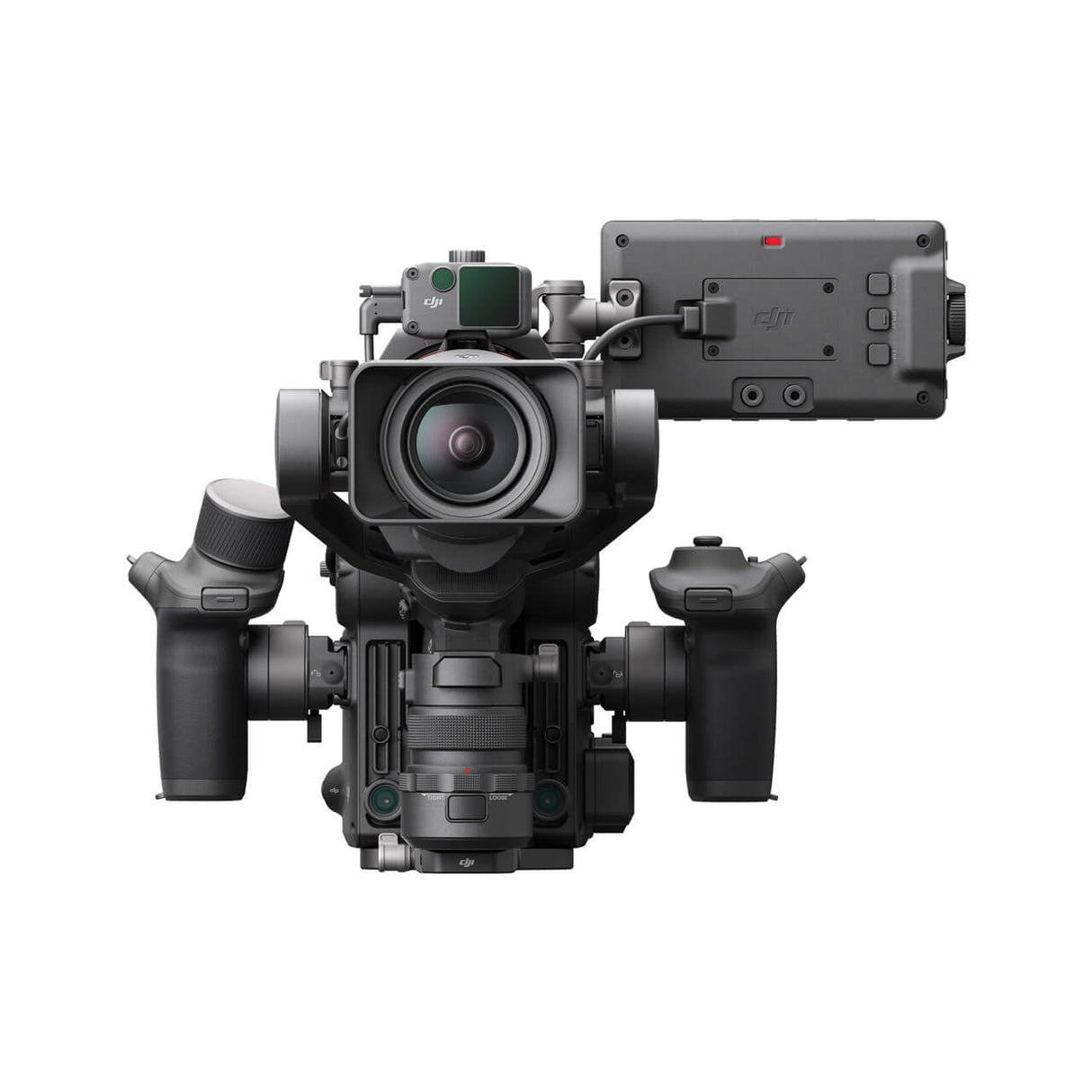

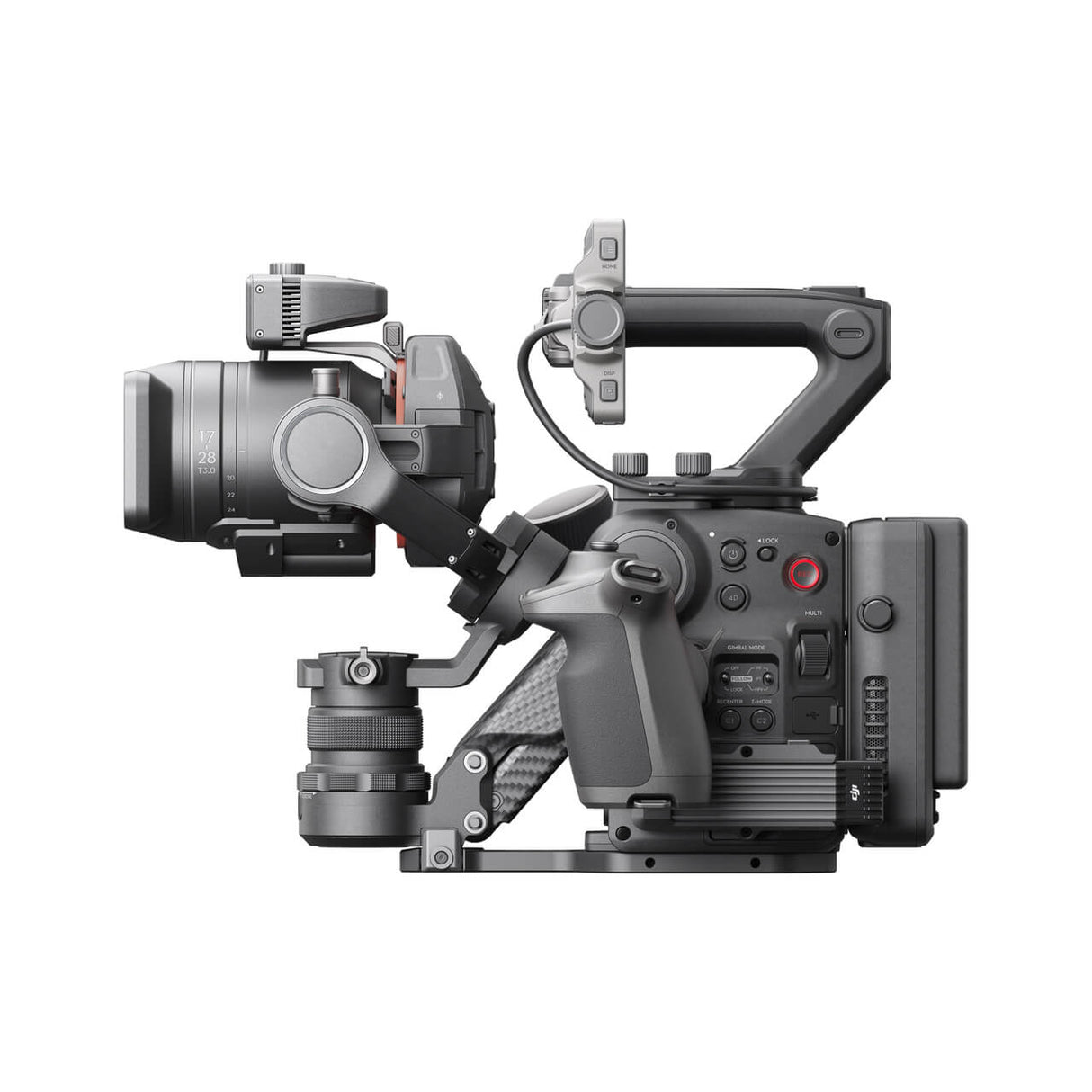

DJI Ronin 4D 4-Axis Cinema Camera 8K Combo

The DJI Ronin 4D 4-Axis Cinema Camera 8K Combo is a fully integrated cinema camera and gimbal system built around DJI's Zenmuse X9 full-frame sensor. Instead of bolting a camera onto a separate gimbal, DJI combined the imaging, stabilization, focusing, and wireless transmission systems into one solid body, so a solo shooter can rig up fast without assembling multiple components. It's built for working cinematographers and small crews who need broadcast-quality 8K footage with minimal setup time, whether shooting solo or coordinating a larger production with remote monitors.

• Integrated imaging and stabilization: A single carbon-fiber and aluminum body houses the camera, gimbal, and focus systems, cutting out rig-building time before a shoot.
• CineCore 3.0 processing: Records internal ProRes 422 HQ and H.264 at up to 8K/75fps or 4K/120fps for flexible delivery formats.
• Built-in 9-stop ND filters: Motorized ND 2 to ND 512 filters switch instantly without stopping to swap glass.
• LiDAR autofocus: A LiDAR focusing system with up to 43,200 ranging points locks focus quickly in low light, even on manual lenses.
• 4-axis stabilization: Adds a vertical (Z) axis to the traditional 3-axis gimbal for dolly-like smoothness while handheld.
• DJI O3 Pro transmission: Sends a secure 1080p/60fps feed up to 20,000 feet to multiple monitors with AES 256-bit encryption.
• Interchangeable lens mounts: A native DL mount plus support for Leica M and other third-party mounts and lens adapters.
• TB50 battery system: Up to 2.5 hours of shooting per charge, a 1.5-hour fast recharge, and automatic heating in cold weather.

Specifications

• Camera: Zenmuse X9 full-frame gimbal camera
• Recording: Internal ProRes 422 HQ and H.264; up to 8K/75fps or 4K/120fps
• ND filters: Built-in 9-stop, ND2-ND512 (ND0.3-ND2.7), motorized switching
• Lens mount: DL mount (compact primes, ~180g each); interchangeable third-party mounts including Leica M
• Stabilization: 4-axis gimbal with downward ToF sensor, dual visual sensors, built-in IMU and barometer
• Focus system: LiDAR Waveform focusing, up to 43,200 ranging points, 10m detection range
• Video transmission: DJI O3 Pro, up to 20,000ft range, 2.4/5.8GHz plus DFS band, AES 256-bit encryption, 1080p/60fps output
• Monitors: 5.5-inch 1000-nit main monitor; optional 7-inch 1500-nit High-Bright Remote Monitor with HDMI/SDI output
• Storage: Built-in CFexpress Type-B slot plus USB 3.1 Type-C expansion for external media; DJI PROSSD 1TB option
• Audio: Built-in dual-channel 24-bit microphones; 3.5mm and XLR mic inputs
• Battery: TB50 Intelligent Battery, up to 2.5 hours shooting, 1.5-hour full charge, auto-heating support
