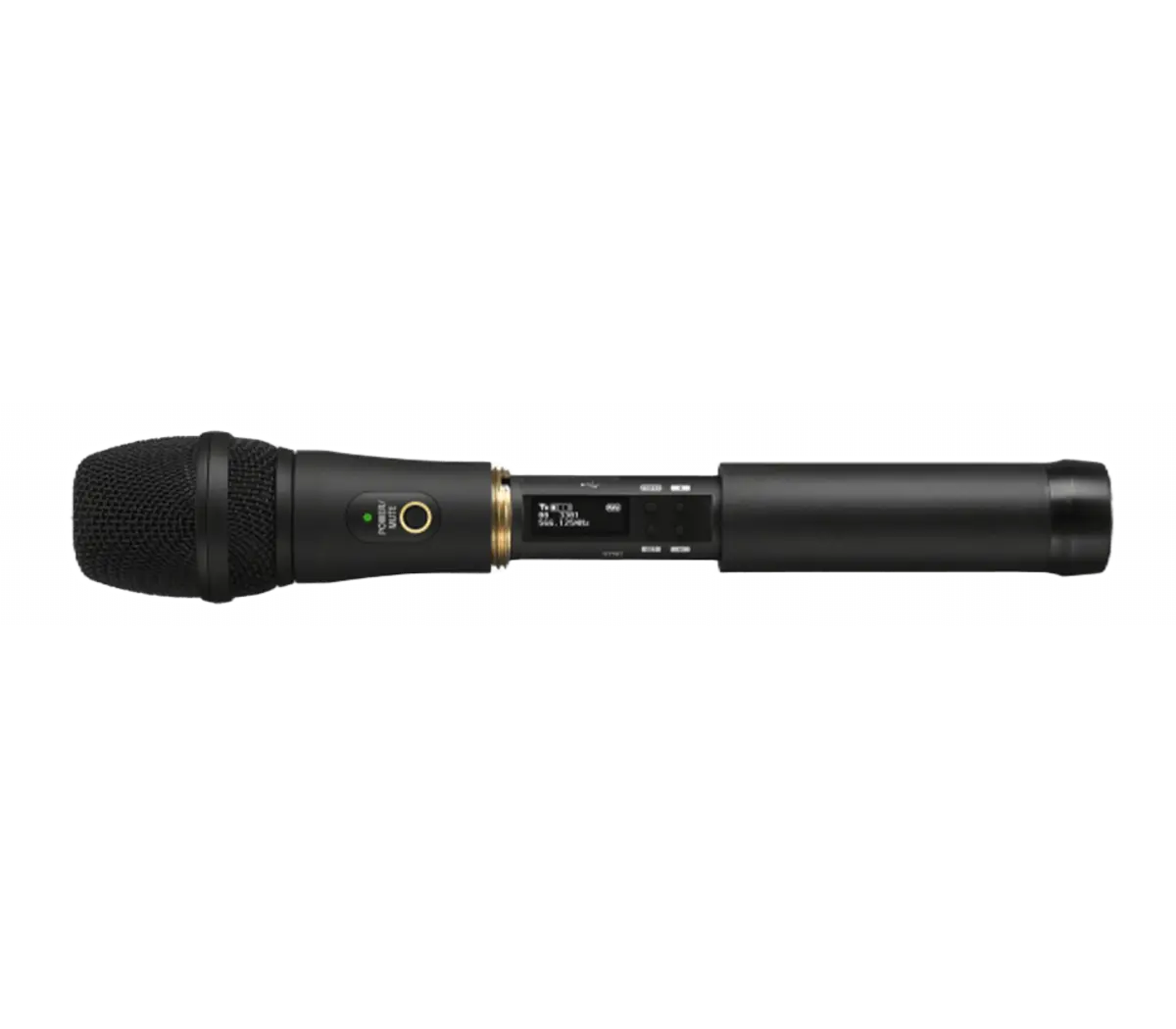

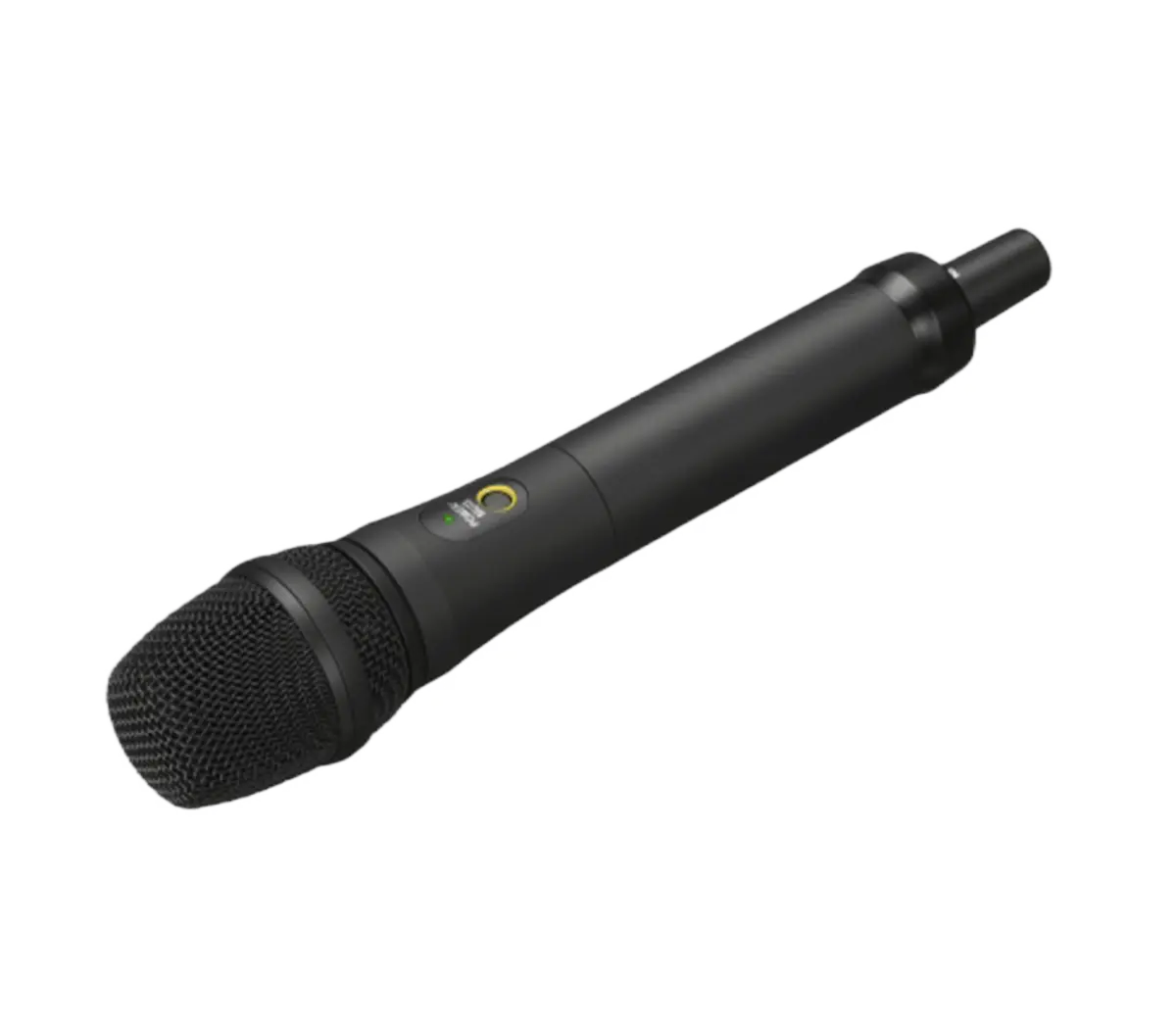

| Utx m40 handheld microphone with unidirectional capsule carrier frequencies:
|
14 UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) 25 UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) 42 LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51) 90 UC: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21 CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29) 33 CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) 42 CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) 38 CN: 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46) E: 794.125 MHz to 805.875 MHz BJ: 806.125 MHz to 809.750 MHz KR: 925.125 MHz to 937.500 MHz |
| Utx m40 handheld microphone with unidirectional capsule rf output power:
|
30 m W/5 m W selectable (UC, U, CE, LA, CN models) 10 m W/2 m W selectable (J, E, KR models) |
| Utx m40 handheld microphone with unidirectional capsule distortion:
|
0.9% or less (–60 d BV, 1 k Hz input ) |
| Utx m40 handheld microphone with unidirectional capsule audio delay:
|
Approx. 0.35 ms |
| Utx m40 handheld microphone with unidirectional capsule tone signal frequency:
|
In UWP-D compander mode: 32.382 k Hz In UWP compander mode: 32 k Hz In WL 800 compander mode: 32.768 k Hz |
| Utx m40 handheld microphone with unidirectional capsule display:
|
OLED |
| Utx m40 handheld microphone with unidirectional capsule power requirements:
|
DC 3.0 V (two LR 6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C™ connector) |
| Utx m40 handheld microphone with unidirectional capsule mass:
|
Approx. 255 g (9.0 oz) (excluding batteries) |

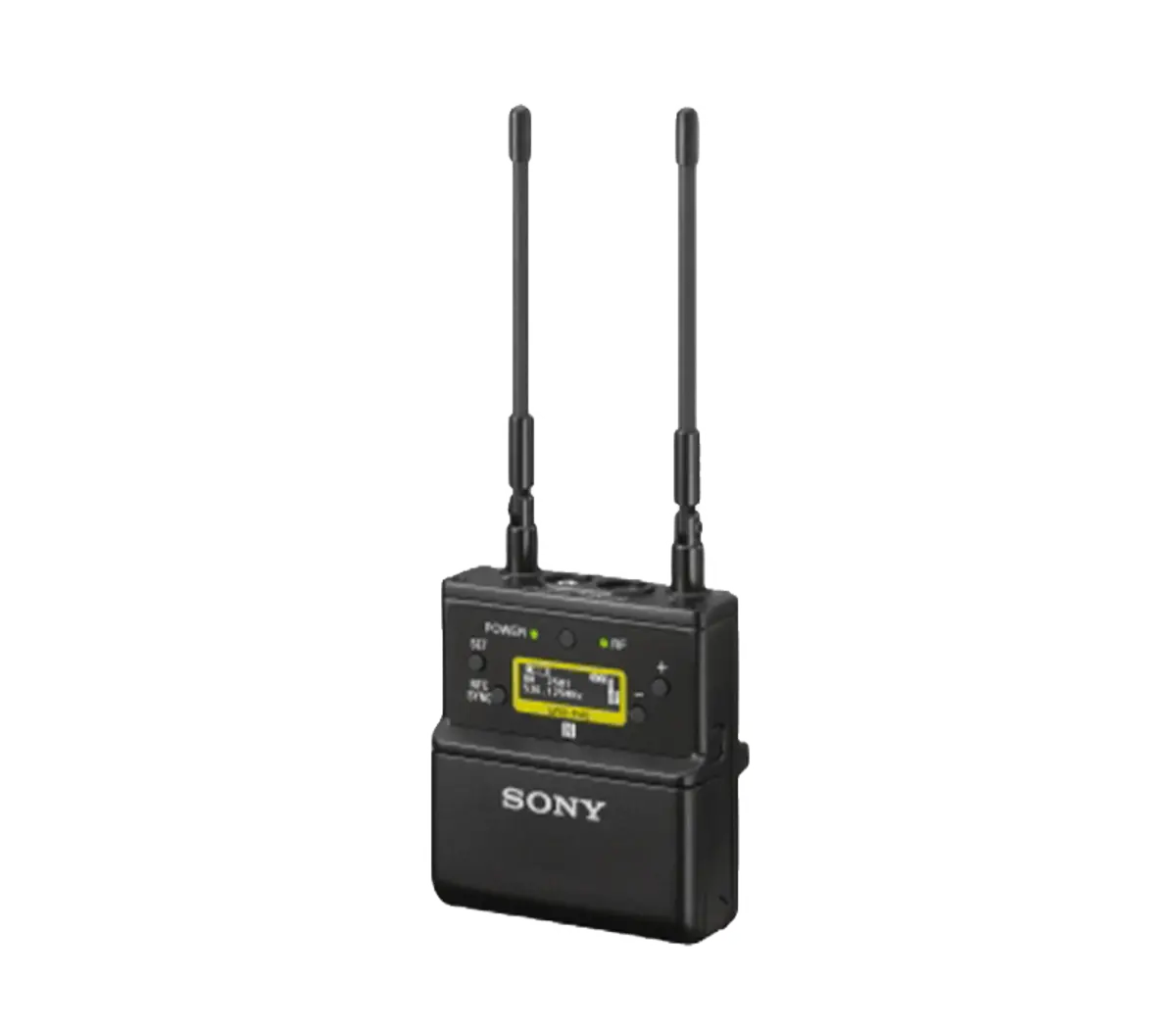

| Urx p40 portable receiver carrier frequencies:
|
14 UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) 25 UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) 42 LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51) 90 UC: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21 CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29) 33 CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) 42 CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) 38 CN: 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46) E: 794.125 MHz to 805.875 MHz BJ: 806.125 MHz to 809.750 MHz KR: 925.125 MHz to 937.500 MHz |
| Urx p40 portable receiver distortion:
|
0.9% or less (1 k Hz sine wave, 5 k Hz modulation) |
| Urx p40 portable receiver audio delay:
|
Approx. 0.35 ms (analog output) Approx. 0.24 ms (digital output) |

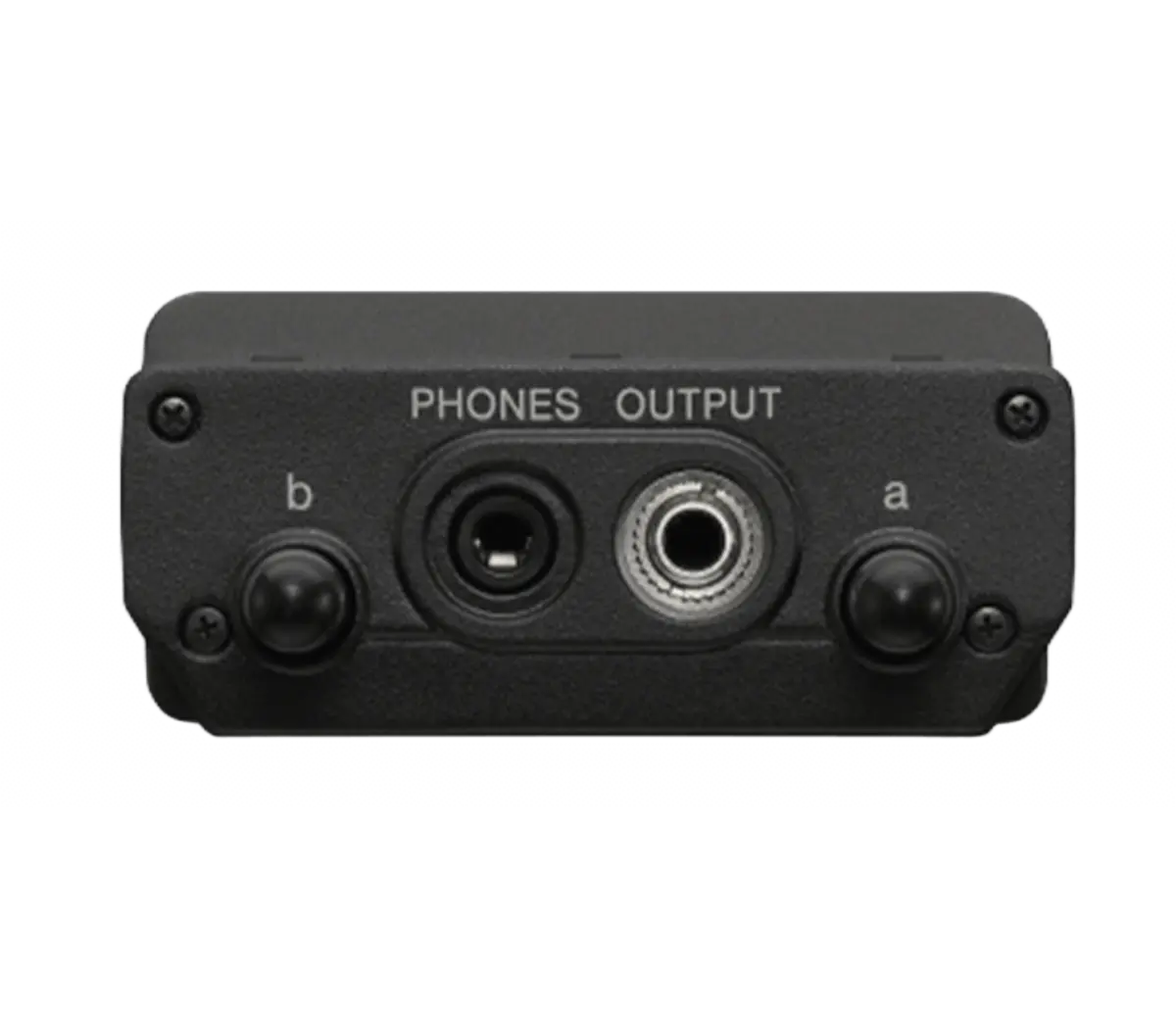

| Urx p40 portable receiver headphone output connector:
|
3.5 mm diameter mini jack |
| Urx p40 portable receiver headphone output level:
|
Max. 10 m W (16-ohm) |
| Urx p40 portable receiver tone signal frequency:
|
In UWP-D compander mode: 32.382 k Hz In UWP compander mode: 32 k Hz In WL 800 compander mode: 32.768 k Hz |
| Urx p40 portable receiver display:
|
OLED |
| Urx p40 portable receiver power requirements:
|
DC 3.0 V (two LR 6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector) |
| Urx p40 portable receiver storage transport temperature:
|
-4°F to 140°F (-20°C to +60°C) |
| Urx p40 portable receiver mass:
|
Approx. 131 g (4.6 oz) (excluding batteries) |
| Sign in register:
|
Track my order Back |
| Reference audio input level:
|
–55 d BV (GAIN MODE set to NORMAL, 0 d B attenuation) |
| Maximum audio input level:
|
151 d B SPL (21 d B attenuation, using supplied microphone unit) |
