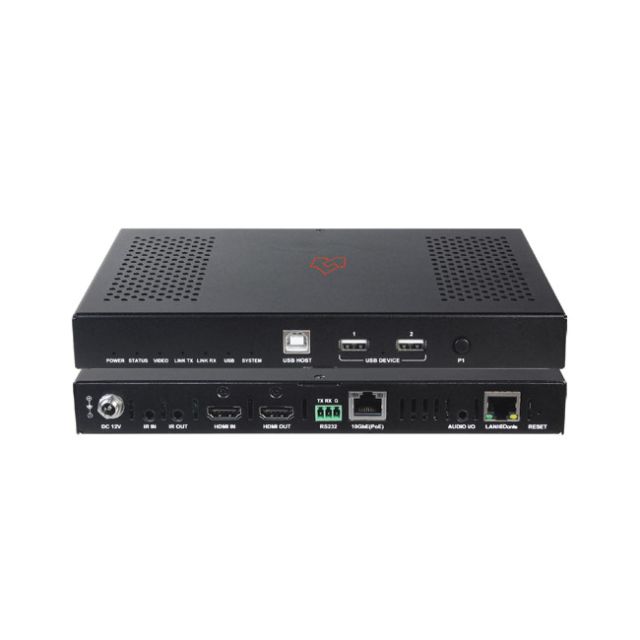

VigilLink SDVoE 10G HDMI 4K60 4:4:4 over IP with Videowall and Multiview with integrated Icron USB 2.0

VigilLink SDVoE 10G HDMI 4K60 4:4:4 over IP with Videowall and Multiview with integrated Icron USB 2.0 This transceiver is an SDVoE-Compliant, All-In-One AV over IP solution that provides the highest-quality, uncompressed 4K and zero-frame audio/ video extension over a standard 10G Fiber Network Switch with instant switching, Video Wall, and Multiview functions. It can transfer advanced HDMI content such as HDR (high dynamic range), full-color depth, and multi-channel HD Bitstream audio. A flexible transceiver design (one box can be set to encoder or decoder) is much more convenient in an installation site and inventory control. Integrated 2 channel Dante allows for the audio to be sent to a distributed audio system. Multiple control and data signals can be simultaneously transmitted with audio and video, including bi-directional IR, RS-232, USB KVM, CEC, and 1G Ethernet. Feature Highlights: HDMI 2.0b and HDCP 2.2 compliant Supports video resolution up to 4K@60Hz 4:4:4, 18Gbps video bandwidth Flexible transceiver design (Encoder, Decoder, Copper, and Fiber port within a single box) Encoder or Decoder mode can be set via Button or API The Encoder supports HDMI Loop out Supports HDR10, Dolby Vision, HLG, 3D as well Supports complete HDMI audio formats, up to Dolby TrueHD, Dolby Atmos, and DTS-HD, DTS:X Supports Zero-Frame latency operating mode Supports signal extension, seamless switching, Matrix, Video Wall up to 9x9, and Multiview up to 25 windows Flexible audio routes control, including bidirectional analog audio transmissions between the Encoder and the Decoder Supports bi-directional IR and RS-232 control signal pass-through Supports USB2.0 (KVM), CEC routing control Supports IR, RS-232, TCP/IP, Web GUI control Standard POE supported (802.3at PD device)
