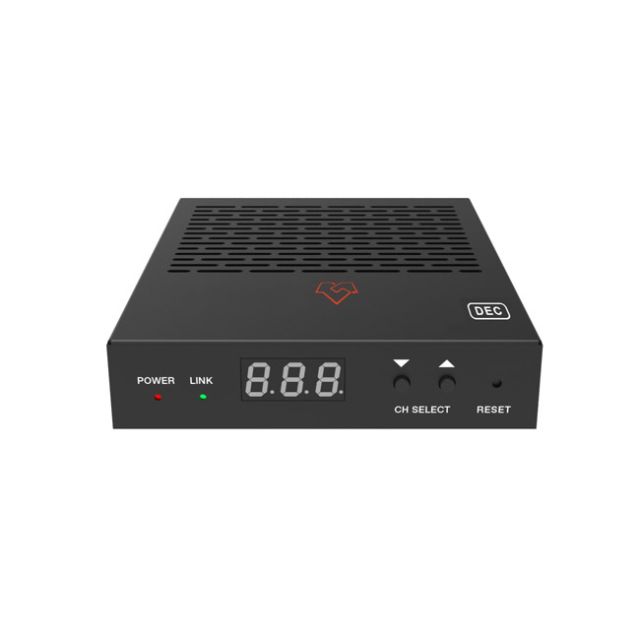

VigilLink 1G H.265 1080p@60HZ AVoIP Receiver with Videowall Processing

VigilLink 1G H.265 1080p@60HZ AVoIP Receiver with Videowall Processing This AV over IP product distributes multiple HD contents to multiple HD display devices over a 100M/1G Network Switch. It offers configurable high-quality, low-bandwidth H.265/H.264 configurable compression video and supports resolution up to 1920x1200@60Hz 4:4:4. Signal transmission distance can be extended up to 328ft / 100m via CATE5E/6/6A/7 cable. The product supports analog audio embedding and extracting. It also supports RS-232 control (pass-through & Guest mode) and single-machine control (without a Controller Box, matrix switching can be realized with panel buttons or RS-232 control). Featured Highlights HDMI 1.3 and HDCP 1.4 compliant Video resolution up to 1920x1200@60Hz 4:4:4 Supports 4.95Gbps video bandwidth Signal transmission distance can be extended up to 328ft / 100m via CATE/6/6A/7 cable Supports point-to-point signal extension Supports signal distribution, multicast mode, distributed matrix, and video wall (up to 9 x 9) functions over a 1G Network Switch Intelligent video wall management makes it achievable for the novel layout of wall configurations Supports LPCM 2.0CH (32/44.1/48KHz) audio format Supports audio embedding and extracting Supports RS-232 control (pass-through & Guest mode) Supports mainstream and Substream encoding modes Stream parameters can be configured via Web GUI or Controller Box Controlled via panel buttons, RS-232, TCP/IP, Web GUI, and Controller Box Supports POE function (802.3af Class 3, PD mode) Smart networking design for easy and flexible installation Package Contents 1x 1080P over IP 100M/1GbE Decoder 2x 3-pin Phoenix Connector (3.81mm, male) 4x Machine Screw (KM3, 4mm) 2x Mounting Ear 1x 12V/1A Locking Power Adapter 1x User Manual
