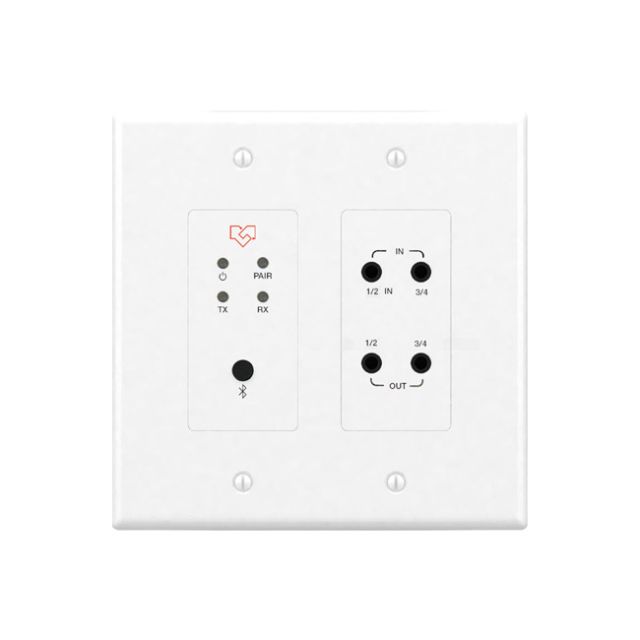

VigilLink 4x4 Dante Wall Plate with Analog and Bluetooth Inputs and Outputs

The VigilLink 4x4 Dante Wall Plate is an in-wall audio bridge for AV integrators who need to get Bluetooth or analog line-level audio onto a Dante network, or bring Dante audio back out to analog speakers and Bluetooth receivers. Its standard two-gang Decora footprint drops into existing wall plate cutouts, making it a practical retrofit for conference rooms and BYOD meeting spaces. Because it's PoE powered, it can be installed and controlled without running a separate power circuit.

• Two switchable operating modes: Mode 1 converts 2-channel Bluetooth plus 4-channel unbalanced audio into Dante; Mode 2 converts Dante back to 2-channel Bluetooth plus 4-channel unbalanced outputs.
• Configurable Bluetooth naming: The device's Bluetooth name can be changed in software for easy discovery in multi-room deployments.
• Adjustable input/output levels: Input gain adjusts from +12dB to -12dB and output volume from 0-100 via control software.
• Dante sample rate flexibility: Supports 44.1, 48, 88.2, and 96kHz at 16, 24, or 32-bit, with configurable 1, 2, or 5ms device latency.
• PoE powered: Runs on IEEE 802.3at PoE (compatible with 802.3af), or a local 12V DC adapter when no PoE switch is available.
