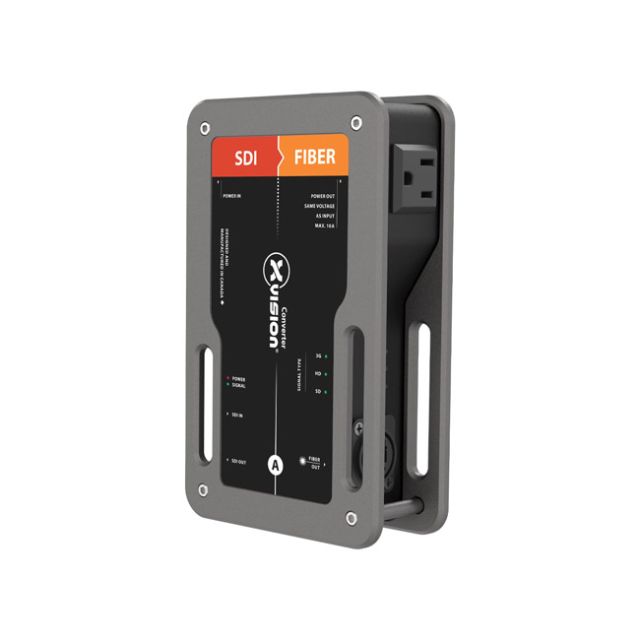

The Theatrixx xVision SDI to Fiber (True1) Converter takes a single 3G/HD/SD-SDI input and converts it to optical fiber output, with an SDI loop-thru for passing the same signal to another device.
- Integrated Power Supply: Locking PowerCON connector with a built-in AC outlet to power a nearby projector, TV, or laptop without a separate power bar.
- Magnetic Stacking System: Non-skid rubber pad supports tabletop use and stacking with other xVision units.
- Multiple Mounting Options: C-clamp, wall-mount adapter, LCD mount adapter, and belt adapter cover different install scenarios.
- Plug-and-Play Operation: No dip switches, buttons, or menus -- clear status LEDs and a color/alphabetic coding system make field identification and troubleshooting fast.
- Designed and Assembled in Canada: Built specifically for the reliability demands of touring and mission-critical A/V work.
- 1x 3G/HD/SD-SDI Input with Loop-Thru: Supports 3G-SDI Level A and B, HD-SDI, and SD-SDI with embedded audio.
- Compact, Lightweight Build: Measures 50mm x 180mm x 107mm and weighs 1kg (2.2 lbs).
| Video Input | 1x 3G/HD/SD SDI BNC (with loop-thru) |
| SMPTE Standards | 425M Level A & B, 424M, 292M, 259M |
| Dimensions (H x D x W) | 50mm x 180mm x 107mm |
| Weight | 1kg (2.2 lbs) |
| Power Consumption | 15W |
| Operational Voltage | 100-120V, 50-60Hz (100-240V with PowerCON True1) |
| Operating Temperature | 0-40°C |
