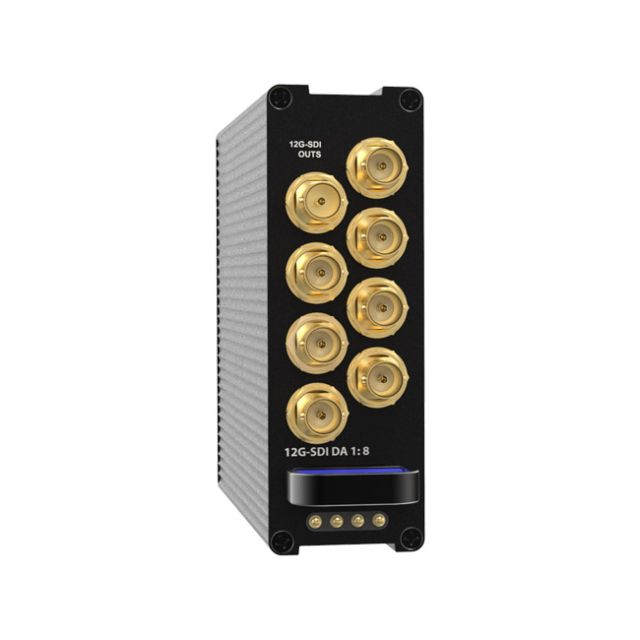

The Theatrixx 12G-SDI Distribution Amplifier 1:8 is a reversible module for the 8-Bay Frame that reclocks and amplifies a single 12G-SDI input to eight outputs. Supporting 4K 60p and full HD formats with embedded 16-channel audio, it handles the signal distribution demands of modern broadcast and cinema workflows. Reversible insertion allows inputs/outputs to be positioned front or rear depending on rig layout.
- 1 input to 8 outputs: Reclocked and amplified 12G/6G/3G/HD/SD-SDI distribution.
- 4K 60p support: Handles 4096x2160, 3840x2160, and all HD/SD formats with full color sampling.
- Embedded audio (up to 16 channels): 24-bit, 48 kHz digital audio throughout distribution.
- Reversible module design: Insert in either direction for front or back connectivity.
- No external power required: Gold-plated redundant pins deliver DC power from the 8-Bay Frame.
- SMPTE standards compliant: Meets 2082-1, 424M, 292M, and 259M specifications.
