SmallRig NP-F Battery Adapter Mount Plate Kit with NP-FZ100 Dummy Battery Power Cable (Advanced Edition) 4341

4341 Product Description
Product Name in Package: SmallRig NP-F Battery Adapter Mount Plate Kit with NP-FZ100 Dummy Battery Power Cable (Advanced Edition) 4341
Product Name in Marketing: SmallRig NP-F Battery Adapter Mount Plate Kit with NP-FZ100 Dummy Battery Power Cable (Advanced Edition) 4341

Key Features:

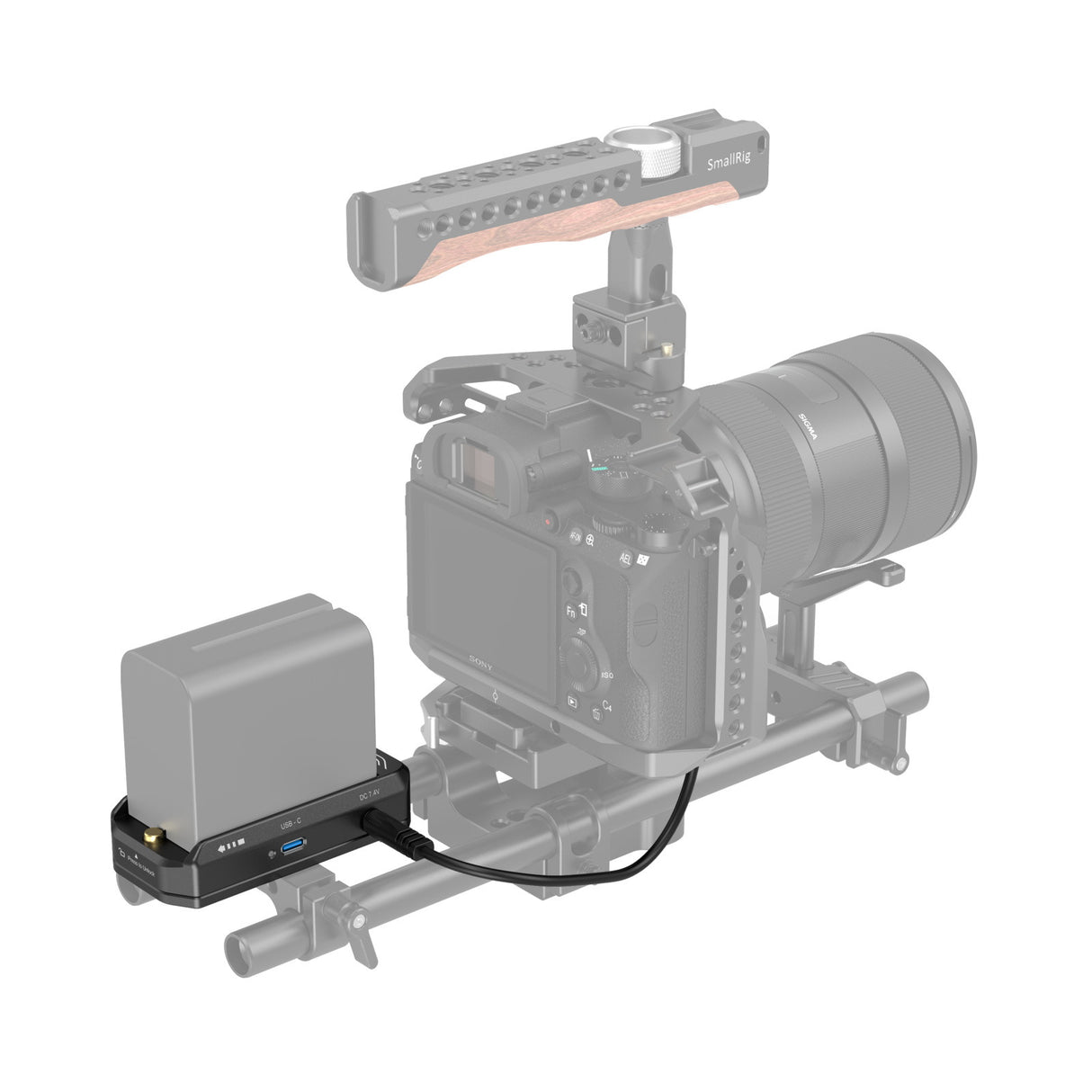

Compatible with NP-F type batteries, paired with DC to NP-FZ100 dummy battery power cable, providing external power supply for Sony FX3 / FX30/ α7CR / α7C II / α7 IV/ ZV-E1 and and various mirrorless cameras
Aluminum alloy and gold-plated electrical contacts make it more durable and conductive
Allows to access two devices with DC 7.4V and 12V dual output Maximum DC and USB-C output: 36W
The USB-C interface supports bi-directional input and output with 36W power
Features automatic wake-up and sleep modes to avoid damage to the camera
Comes with USB-C mode and power indicators for easy viewing of charging and state of charge
Each output port features short circuit and high current protection to ensure safety during using

Description:

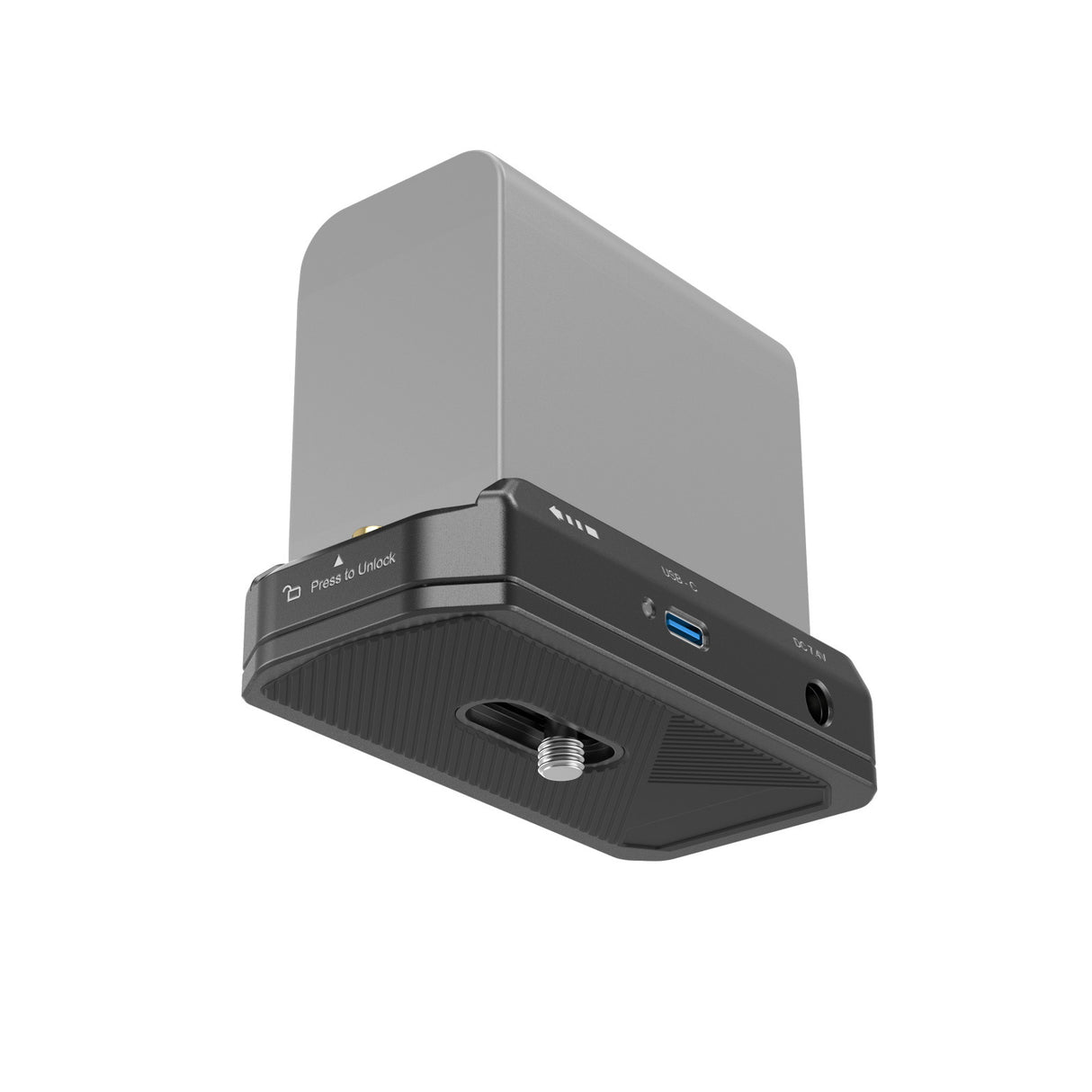

SmallRig NP-F Battery Adapter Mount Plate Kit with NP-FZ100 Dummy Battery Power Cable (Advanced Edition) 4341 is Designed to enable NP-F batteries on the market (including Sony original and third-party batteries) to power Sony FX3 / FX30/ α7CR / α7C II / α7 IV/ ZV-E1 and various mirrorless cameras, the set can achieve long-lasting power supply. The NP-F Battery Plate is made of aluminum alloy with gold-plated electrical contacts to be more durable and conductive. The plate has a self-locking button for quick and secure battery installation and a 1/4''-20 threaded hole for easy attachment to the cage. There are 36W 7.4V / 12V DC output on its sides and a 36W USB-C port, which can output current or charge an NP-F battery. All ports have short circuit protection and automatic wake-up and sleep functions. In addition, this item features LED lights indicating USB charging and discharging state, battery connection, and battery life.

NP-F Battery Adapter Mount Plate Specifications
Maximum operating power of the whole machine ≤ less than battery power (based on NP-F battery capacity)
Standby power (static reference power) ≤0.2W

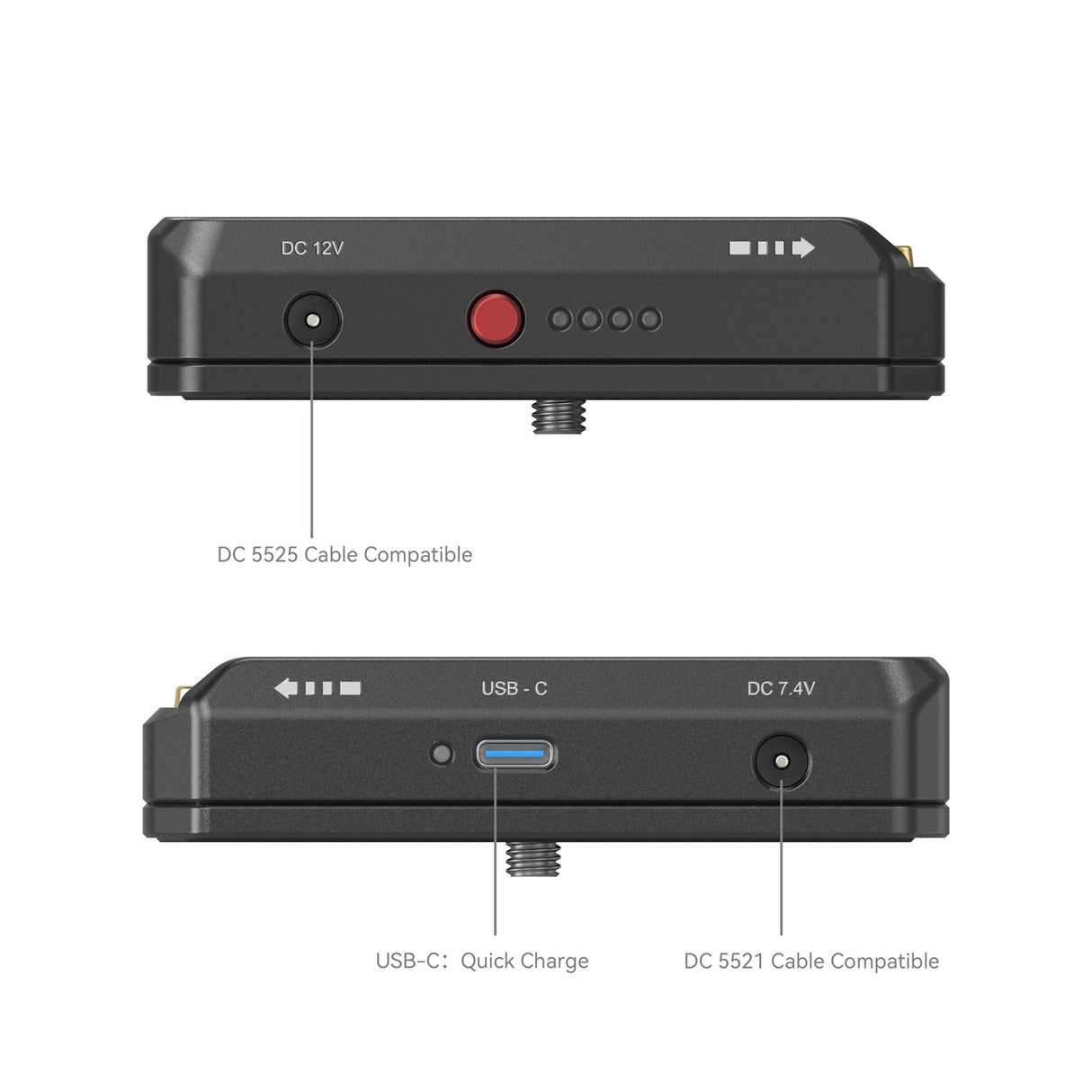

DC5521 7.4V output port 6.4V-8.4V MAX:3A
DC5525 12V output port 12V±5%MAX:3A
USB-C input/output port charging input 5V / 3A,9V / 2.7A,12V / 2.1A(MAX:25W)
USB-C input/output port discharge output 5V/3A,9V/3A12V/3A(MAX:36W)
Charging operating temperature 0℃~40℃
Working humidity range Relative humidity 20%~90%RH without condensation
Storage temperature -40℃～70℃
USB-C supports protocols Input PD3.0、QC2.0、QC3.0、SCP、FCP、AFC
Output PD3.0、QC2.0、QC3.0、SCP、FCP、AFC

FZ100 Dummy Battery Specifications
Input Voltage 7.6~8.4V
Input Current 3A
Output Voltage 7.6~8.4V
Output Current 2A(Max)


NP-F Battery Adapter Mount Plate Button/Indicator Function Display
Power Display Button Touch to check battery level
Working Indicator Light USB-C port charging and discharging indicator light Orange - slow charge/slow d
