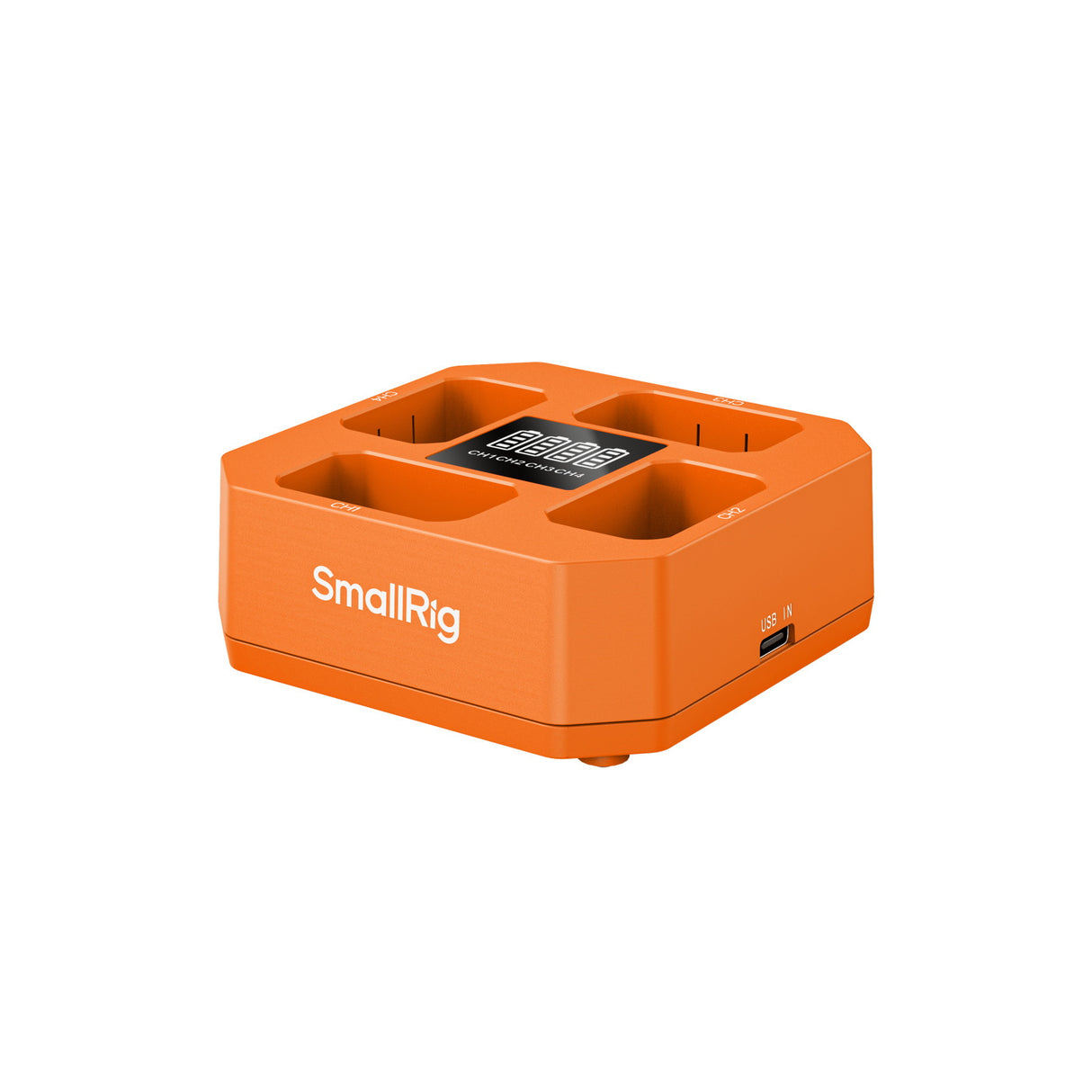

SmallRig Four-Channel Camera Battery Charger for NP-FW50 5749

Key Features

• 4-Channel Fast Charging: With 45W PD protocol input, this charger significantly boosts efficiency—fully charging 4 batteries in just 2 hours—keeping your devices ready at all times.

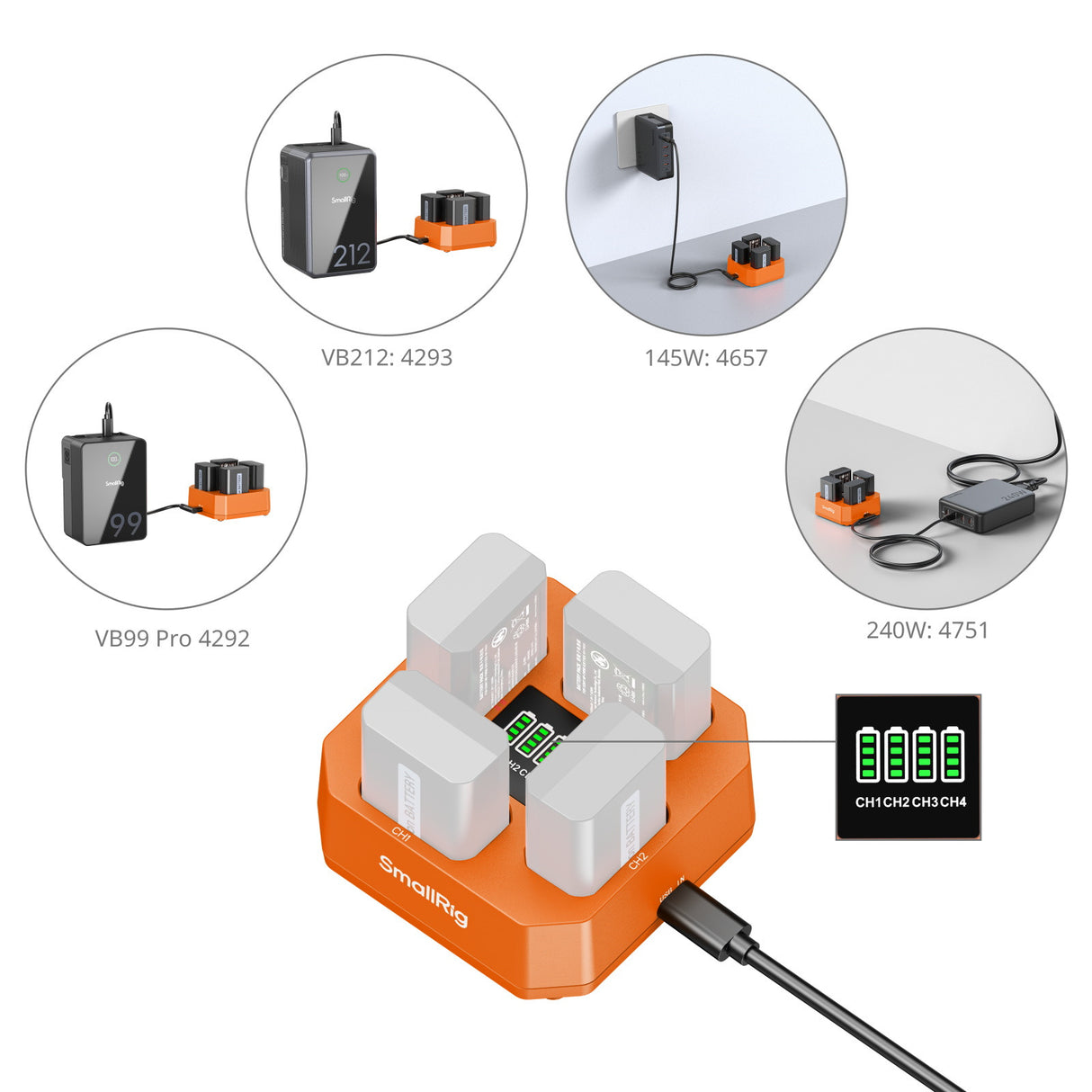

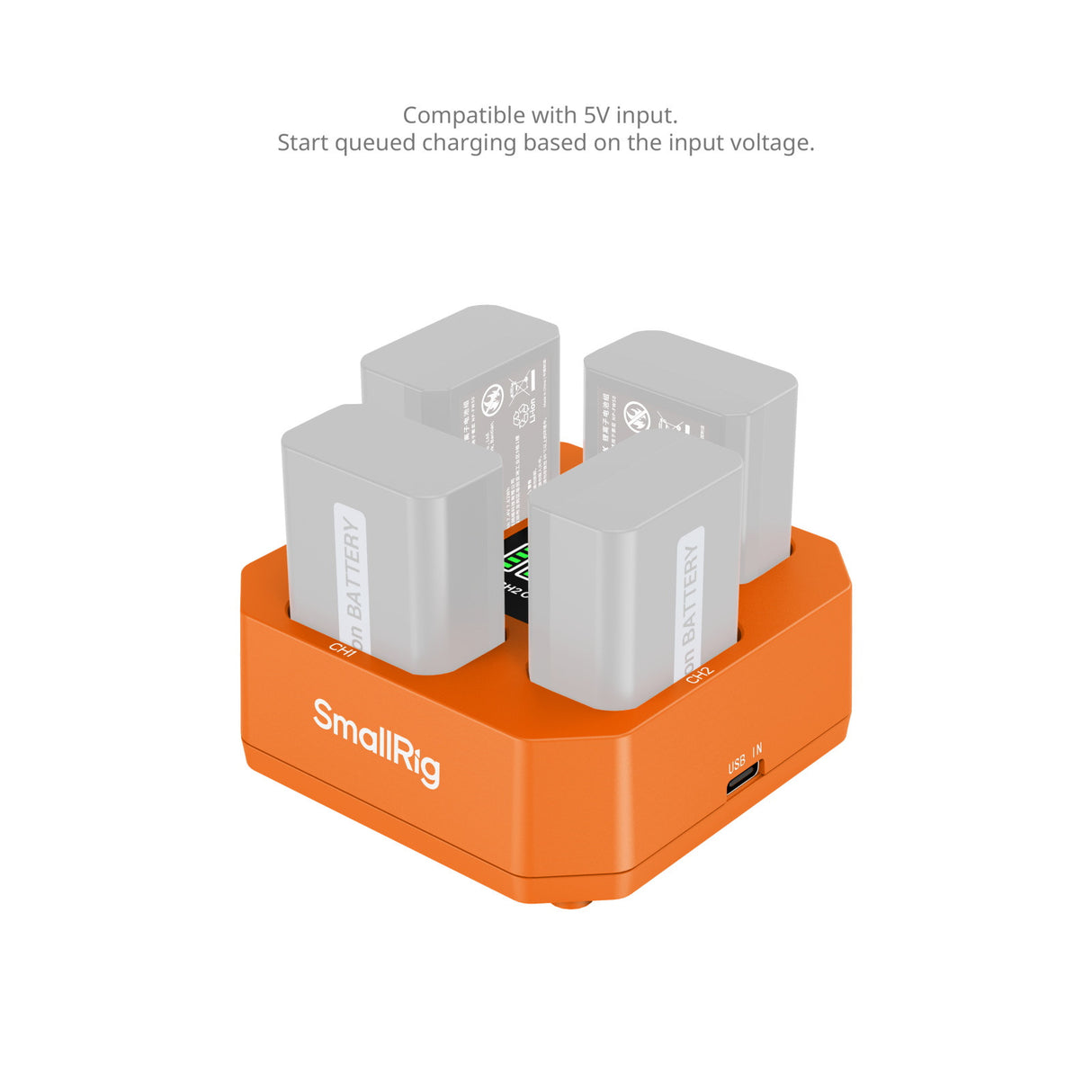

• Universal Protocol Compatibility: Supports 5V, 9V, 12V, and 15V inputs, including 5V/1A adapters. Smart queued charging activates based on voltage: 5V⎓1A activates 1 channel; 5V⎓2A activates 2 channels; 9V activates 3 channels; and 12V-15V can charge 4 channels simultaneously.
• Comprehensive Safety Protection: Each output port features short-circuit and overcurrent protection, ensuring safe and dependable charging.
• Compact and Portable Design: Lightweight and portable, this charger is ideal for both travel and daily use—your ultimate charging companion.

SmallRig Four-Channel Camera Battery Charger for NP-FW50 5749 is a high-efficiency, high-power charger designed for NP-FW50 batteries. With a 24W max input and full protocol compatibility (including 5V/1A adapters), it intelligently queues charging based on the adapter’s power.

The four dedicated channels allow for simultaneous charging of four NP-FW50 batteries, delivering efficient fast charging to meet demanding shooting schedules.

Each output port is equipped with short-circuit and overcurrent protection, ensuring safe operation at all times.

Its compact and portable design makes it ideal for both travel and daily use, providing reliable battery charging wherever you go.

Charging Time:

Battery Capacity 1030mAh (e.g., ID 4965, 4330, 4330AC)

Full Charge 4 batteries in 2 hours

Precautions:

1. It is recommended to use a USB-C power adapter supporting Power Delivery (PD) with an output of 27W or higher for optimal performance.

Works With

Alpha 7 II, Alpha 6100, Alpha 6400, ZV-E10, 5000, Alpha 7S II, 7R, 6500, 6000, 7, 5100, 6300, 7S, 7R II, DSC-RX10M2, RX10M3, RX10, RX10M4, ILCE-QX1, and other cameras using NP-FW50 batteries.

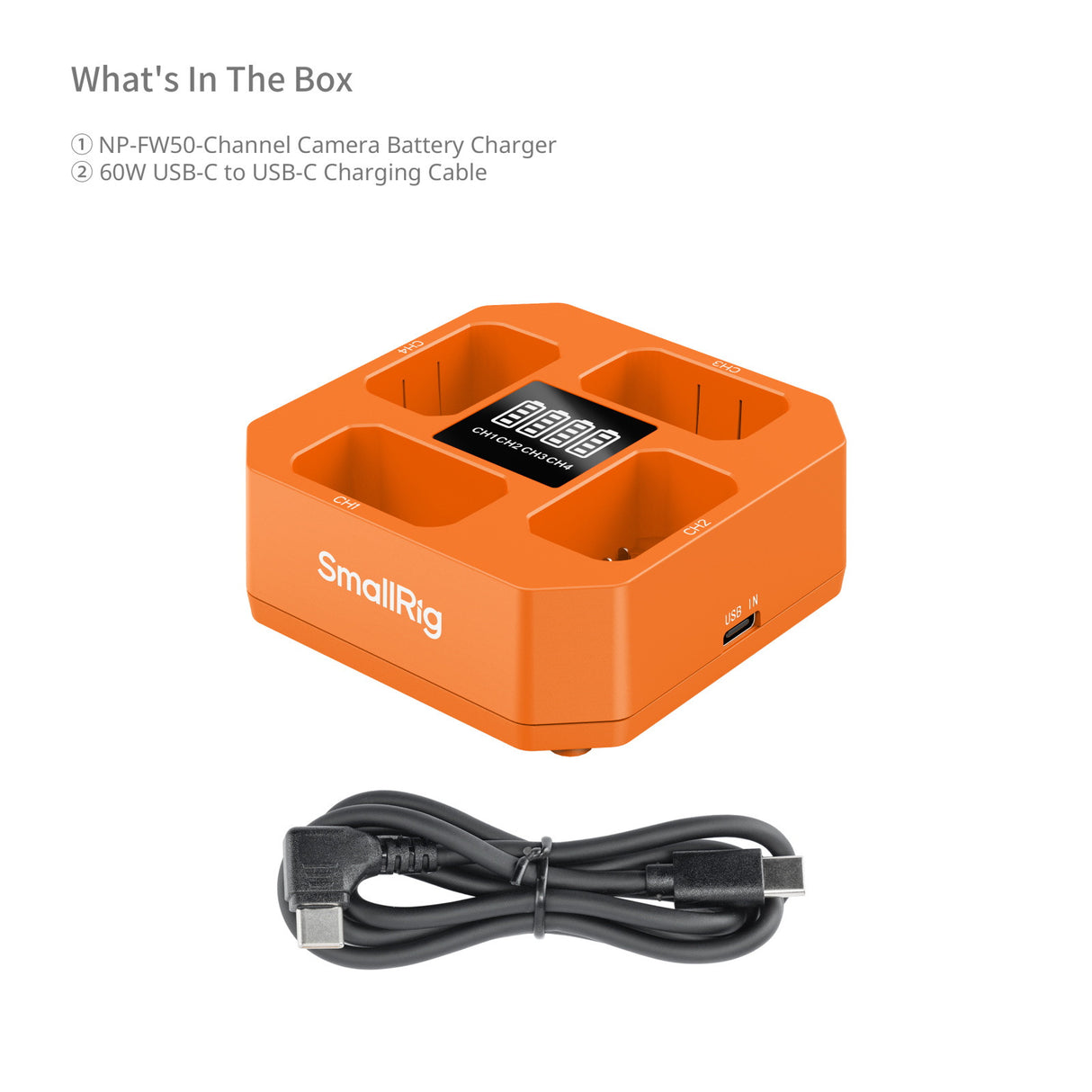

What's in the Box

• NP-FW50 Four-Channel Charger × 1
• 65W USB-C to USB-C Charging Cable × 1
• User Manual × 1
• Guarantee Card × 1

Specifications

• Item Specifications
• Material(s) ABS + PC

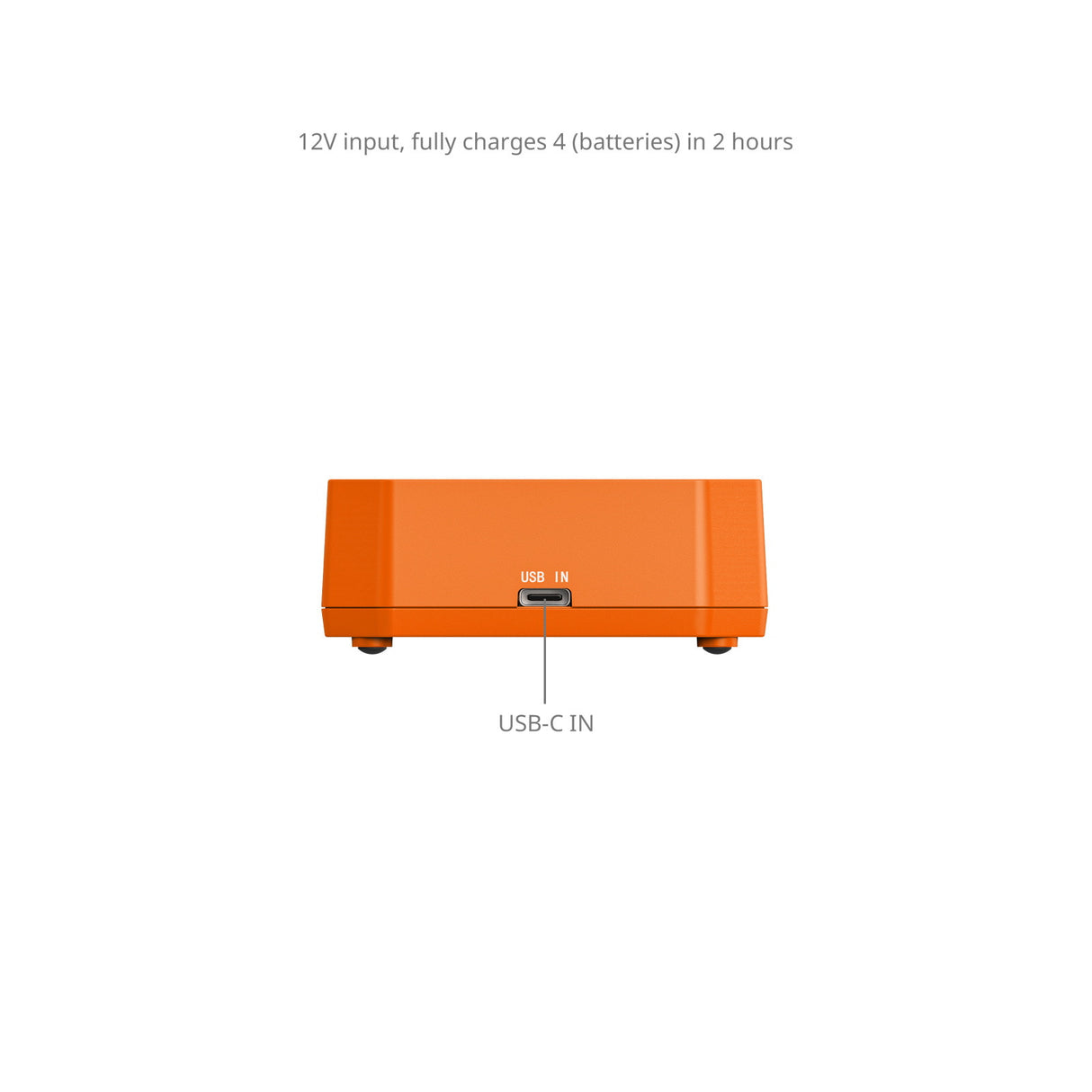

• USB-C Input 5V⎓2A, 9V⎓2A, 12V⎓2A, 15V⎓1.5A (Max 24W)
• Output (per channel) 8.4V⎓0.56A
• USB-C Protocol PD
• Charge Limit Voltage 8.45V
• Operating Temperature 0°C – 45°C / 32°F – 113°F
• Product Dimensions 78.0 × 78.0 × 31.0mm / 3.07 × 3.07× 1.2in
• Product Weight 97.0 ± 5.0g / 3.4 ± 0.2oz
