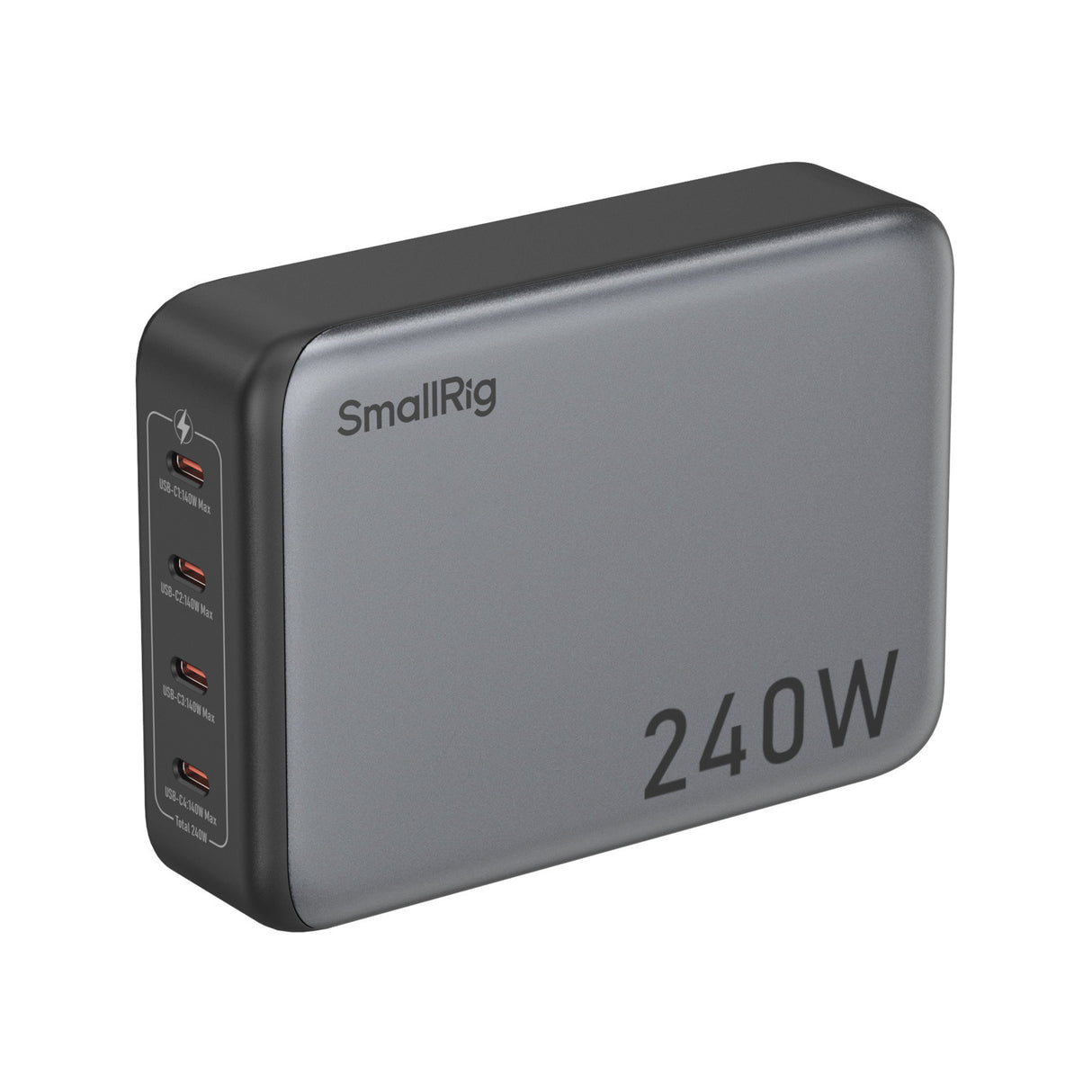

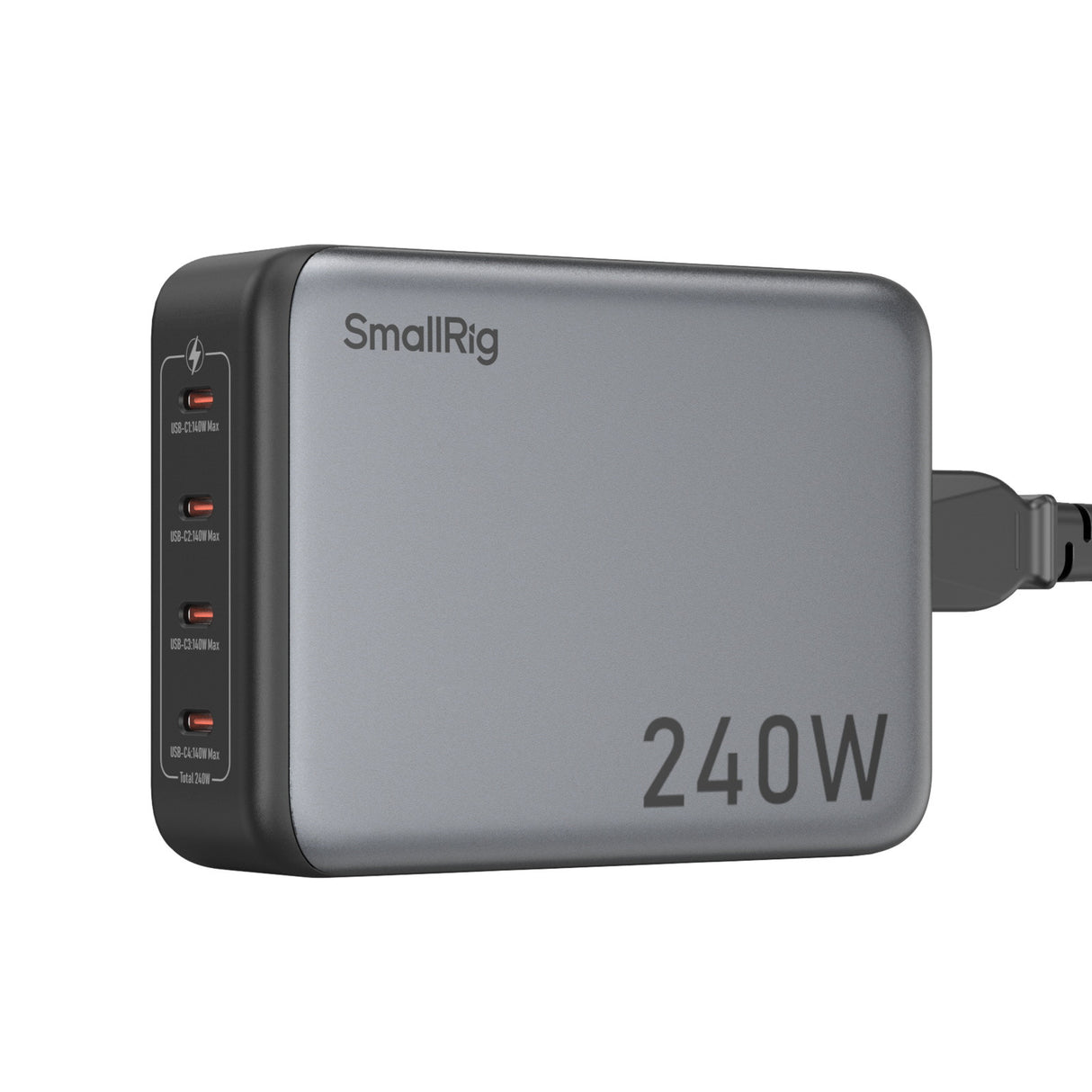

SmallRig 240W 4-Port PD Power Adapter (UK Standard) 4753

Key Features

• High Power Output: With a total power of 240W, the charger supports up to 140W power output per a single port using PD3.1, providing strong support for high-power devices.
• Fast Charging: All four ports support fast charging, with each USB-C port (C1 / C2 / C3 / C4) providing up to 140W.
• Multi-Device Compatibility: Compatible with various electronic devices such as V mount batteries, NP-F batteries, rechargeable camera batteries, smartphones, and computers, catering to diverse charging needs in different scenarios.
• Safety Protection Features: Each output port is equipped with short-circuit and overcurrent protection, ensuring safety during usage.
• Portable Design: Compact and convenient for travel and daily use, ideal for on-the-go charging.

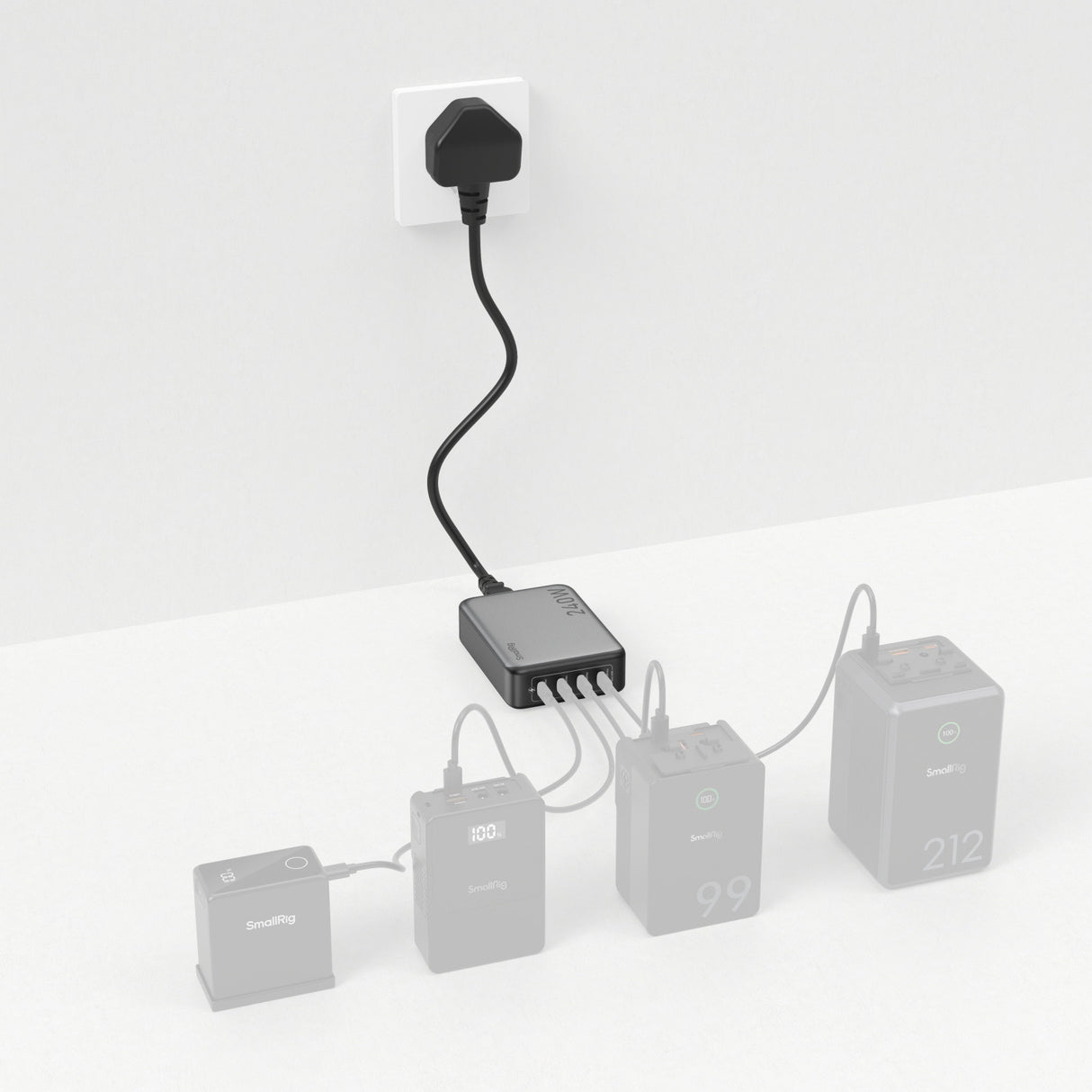

Works With

V mount batteries, NP-F batteries, cameras with direct charging batteries, smartphones, tablets, and laptops.

What's in the Box

• 4751:
• 240W 4-Port PD Power Adapter x 1
• AC Power Cable (US Standard) x 1
• Adapter Bracket x 1
• Operating Instruction x 1
• User Manual x 1
• Guarantee Card x 1
• 4752：
• 240W Charger x 1
• AC Power Cable (EU Standard) x 1
• Adapter Bracket x 1
• Operating Instruction x 1
• User Manual x 1
• Guarantee Card x 1
• 4753：
• 240W Charger x 1

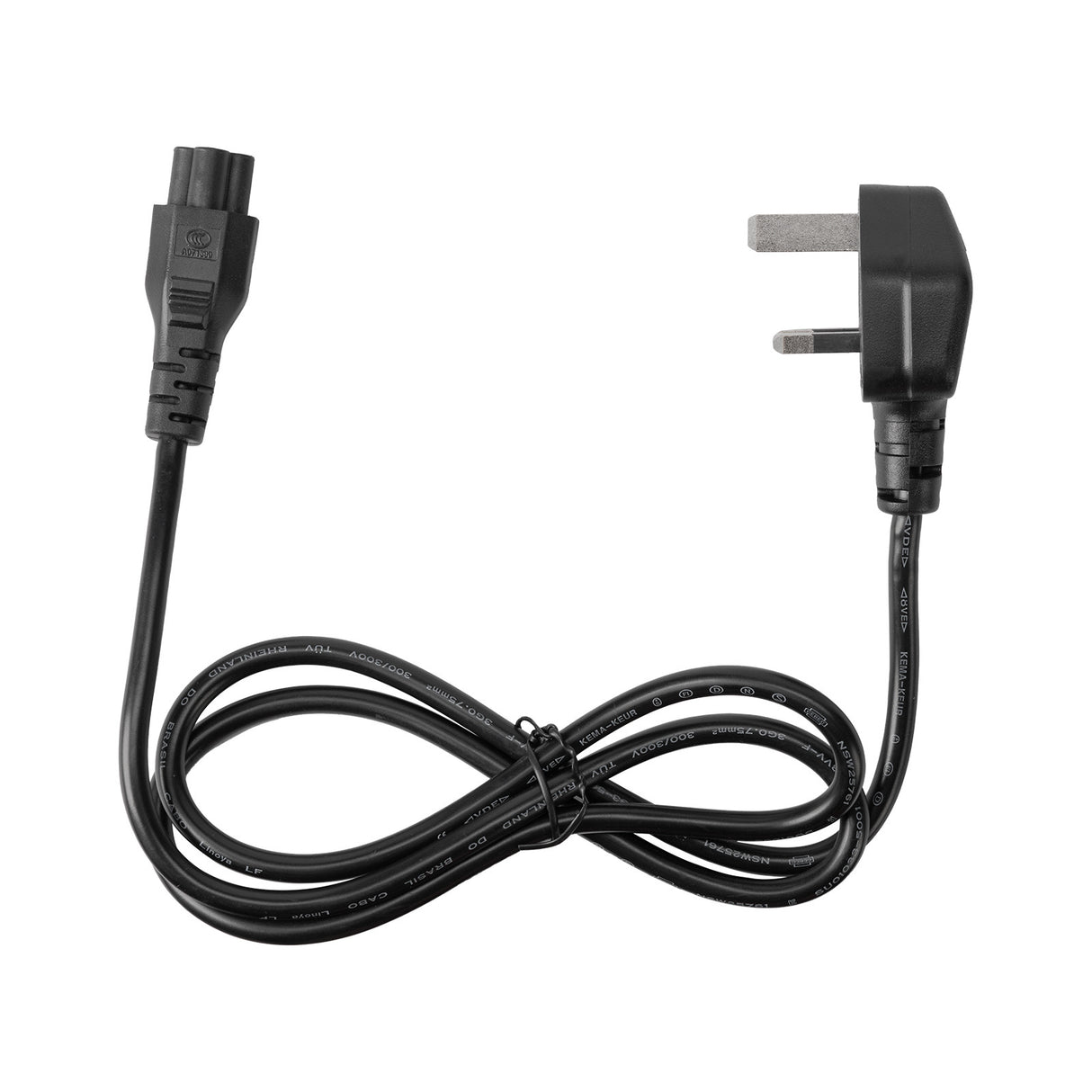

• AC Power Cable (UK Standard) x 1

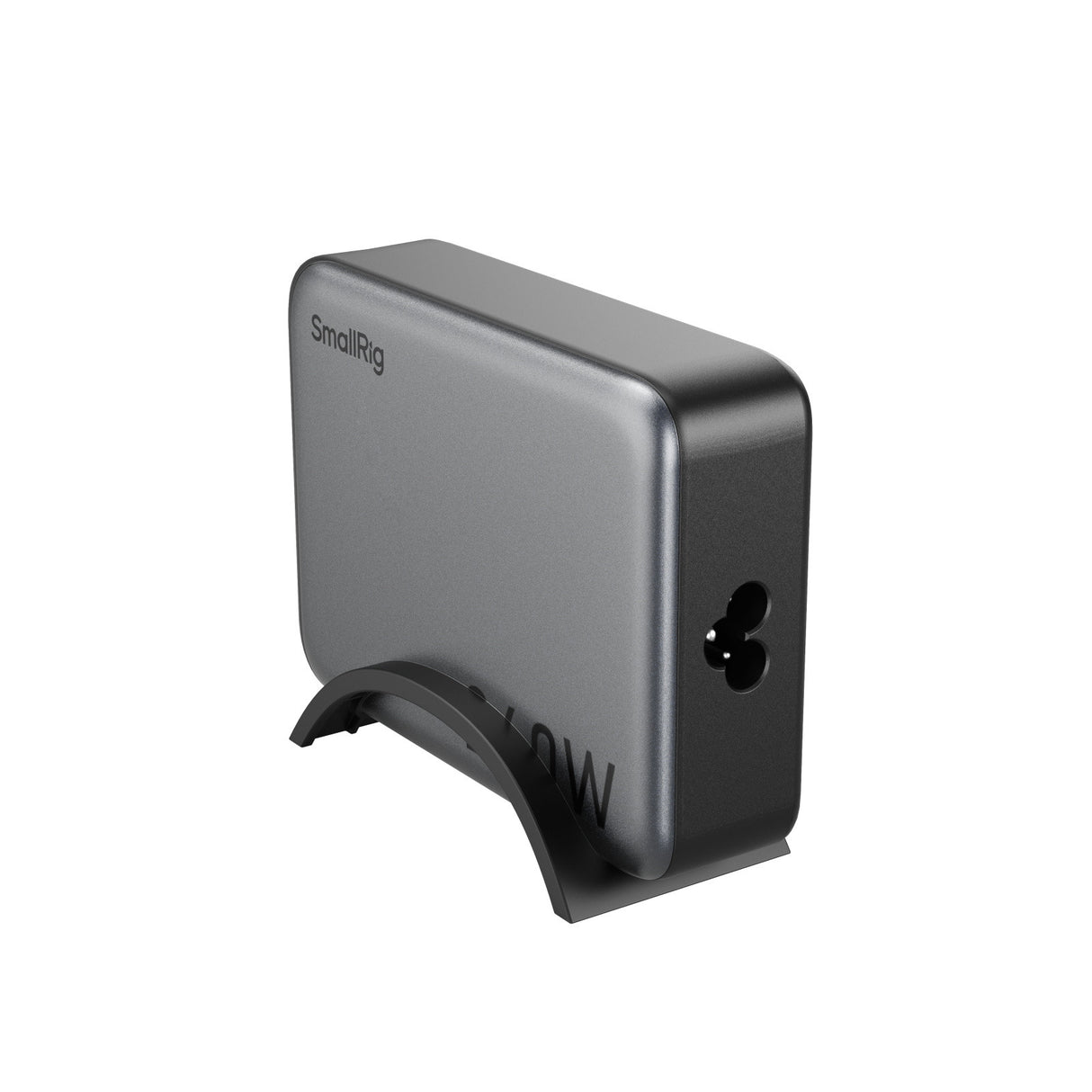

• Adapter Bracket x 1
• Operating Instruction x 1
• User Manual x 1
• Guarantee Card x 1

Specifications

• Item Specifications
• Material PC
• Total Output Power 240W
• Power Input 100-240VAC 50 / 60Hz 4.0A

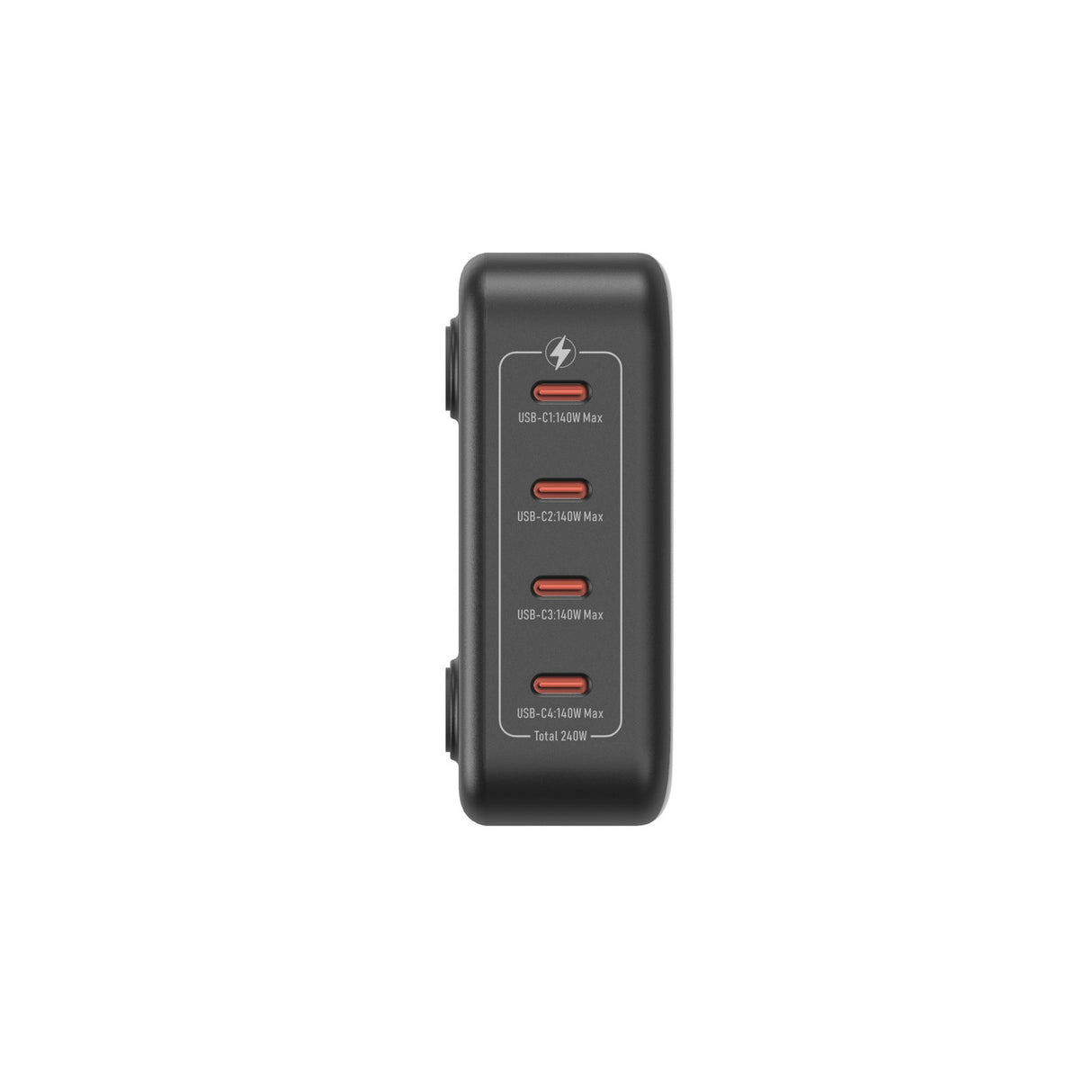

• Power Output Single-Port Mode USB-C1 / C2 / C3 / C4:
• 5V3A 9V3A 5V5A 20V5A 28V5A
• Total: 140W MAX
• Dual-Port Mode C1 + C2 / C3 + C4:
• 100W + 40W / 40W + 100W / 70W + 70W
• Total: 140W MAX
• C1 + C3 / C1 + C4 / C2 + C3 / C2 + C4:
• 140W + 100W
• Total: 240W Max
• Triple-Port Mode USB-C1 + C2 + C3 / C1 + C2 + C4:
• 70W + 70W + 100W / 100W + 40W + 100W / 40W + 100W + 100W
• Total: 240W Max
• C2 + C3 + C4 / C1 + C3 + C4：
• 140W + 60W + 40W / 140W + 40W + 60W / 140W + 50W + 50W
• Total: 240W MAX
• Quad-Port Mode USB-C1 + C2 + C3 + C4:
• 100W + 40W + 60W + 40W / 100W + 40W + 40W + 60W / 100W + 40W + 50W + 50W / 70W + 70W + 50W + 50W / 70W + 70W + 60W + 40W / 70W + 70W + 40W + 60W / 40W + 100W + 40W + 60W / 40W + 100W + 60W + 40W / 40W + 100W + 50W + 50W
• Total: 240W Max
• Friendly Reminder:

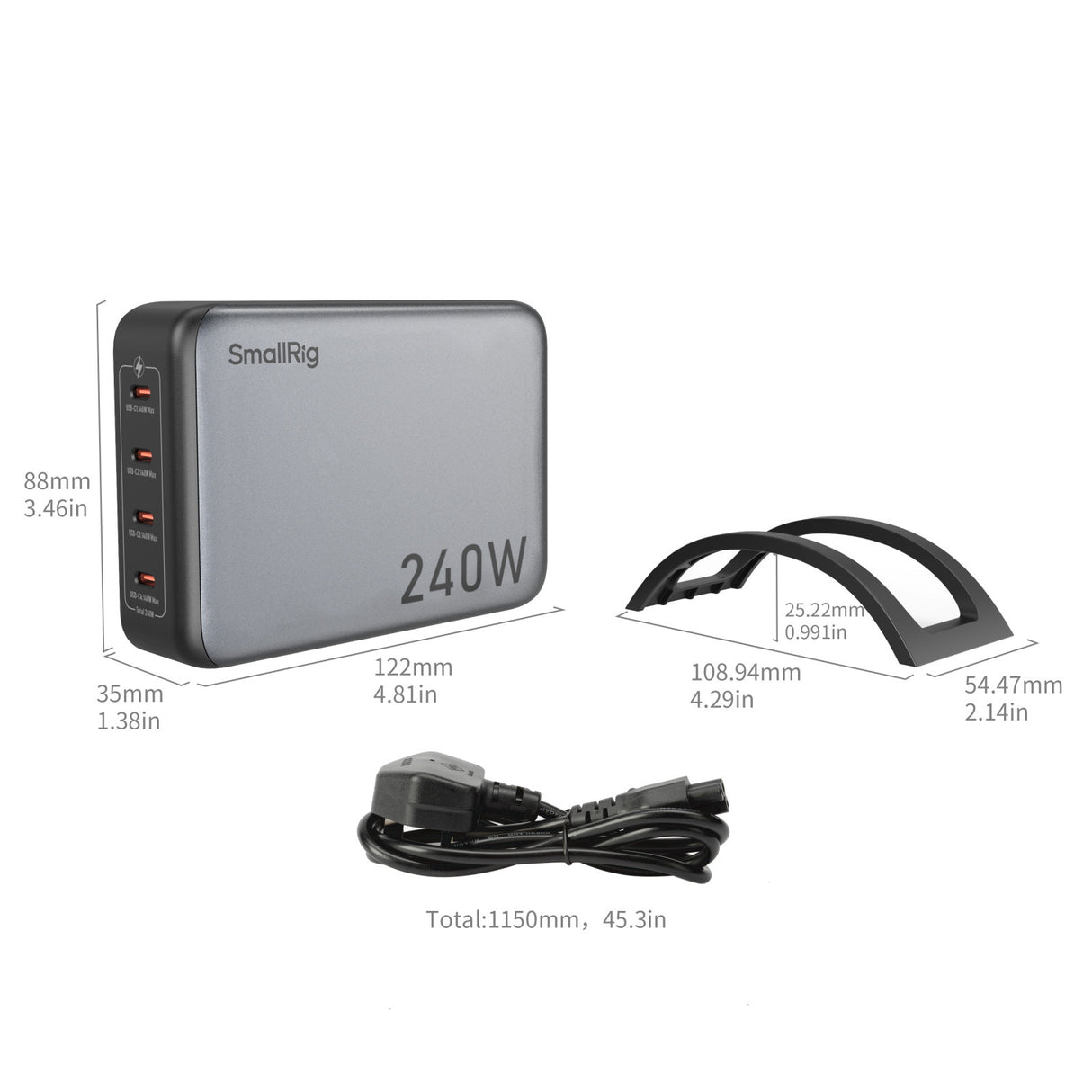

• Weight and dimensions are measured manually on the actual product, we appreciate your understanding in case of any discrepancies.
