RGBlink X8

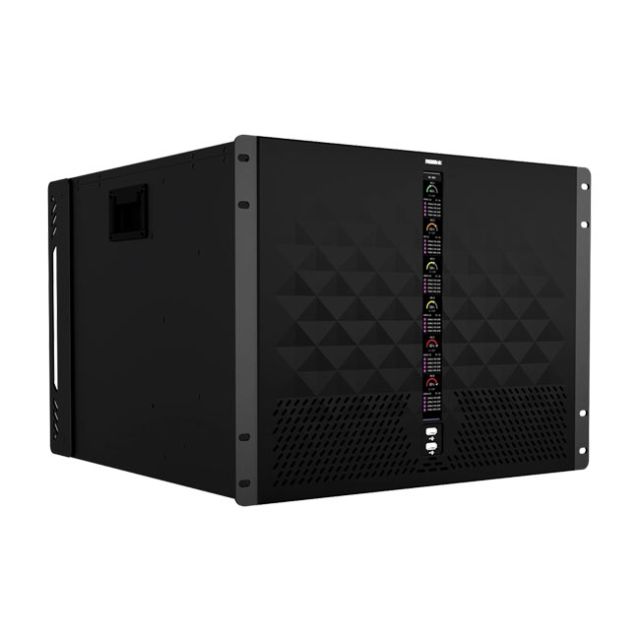

The RGBlink X8 is a modular routing and video wall processor built for live events, broadcast, and control-room applications that need to scale input and output counts as a show grows. Its SmartSlot card-frame design lets integrators configure up to 24 inputs and 12 outputs on the same chassis, scaling and repositioning any source to any output. It's suited to production teams running intensive multi-source switching who need 8K-ready signal handling without swapping hardware between shows.

• Modular SmartSlot architecture: Supports up to 24 inputs and 12 outputs on hot-swappable cards, so the system scales without replacing the chassis.
• 8K-ready inputs: Accepts quad-link HDMI 2.0, single-link HDMI 2.1, and DisplayPort 1.4 sources, with HDR10 and HLG compliance.
• 6+2 layer compositing: Places up to 6x4K layers on any output, plus 2 additional layers from select 4K2K sources, for complex multi-window shows.
• XPOSE 2.0 control with OSD overlay: Manages fully customizable input/output resolutions, EDID, and on-screen display from one interface.
• GENLOCK/SYNC I/O: Keeps every input and output locked to a common reference for clean switching across the system.
