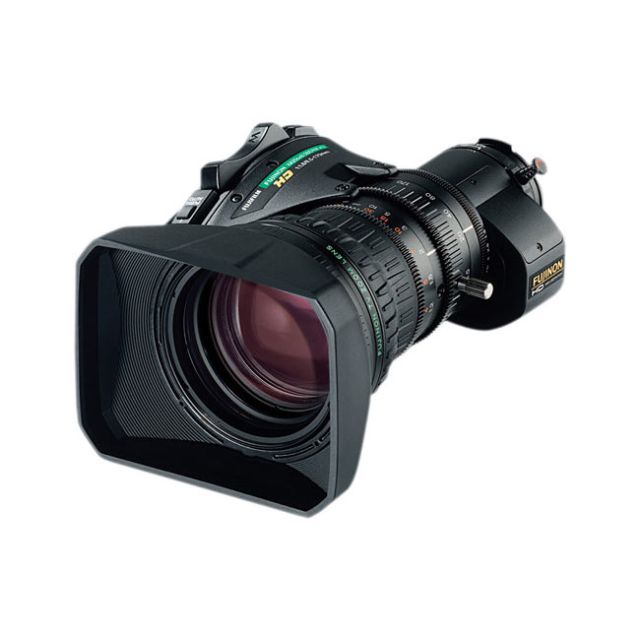

Fujinon XA20SX8.5BERM HD Professional Lens

The Fujinon XA20SX8.5BERM is a broadcast HD zoom lens with a built-in 2x extender, giving it an effective focal range from 8.5mm to 340mm. It's built for ENG and studio broadcast cameras where an operator needs both wide coverage and long reach without swapping lenses. Fujinon's eXceed servo grip, QuickZoom, and Auto Cruising controls, plus its EBC coatings, are aimed at broadcast camera operators who need fast, repeatable zoom control in live production.

• Built-in 2x extender: Doubles reach on demand, covering 8.5-170mm natively or 17-340mm with the extender engaged.
• eXceed servo grip: Adds QuickZoom and Auto Cruising for fast, repeatable zoom moves during live broadcasts.
• EBC lens coatings: Fujinon's Electron Beam Coating improves light transmission and color accuracy.
• Close focusing: Minimum object distance of 0.9m keeps the lens useful for tighter studio shots.

Specifications

• Focal length: 8.5-170mm (1x); 17-340mm (2x with extender)
• Zoom ratio: 20x
• Extender: Built-in 2x
• Maximum aperture: f/1.8 at 8.5-113mm; f/2.7 at 170mm
• Minimum object distance: 0.9m from the front of the lens
• Angular field of view (16:9): 58.9° x 35.2° at 8.5mm; 3.2° x 1.8° at 170mm (1x); 31.5° x 18° at 17mm; 1.6° x 0.9° at 340mm (2x)
• Filter thread: M82 x 0.75
• Approx. size: 85 x 200.8mm (diameter x length)
• Approx. weight: 1.6kg without lens hood
