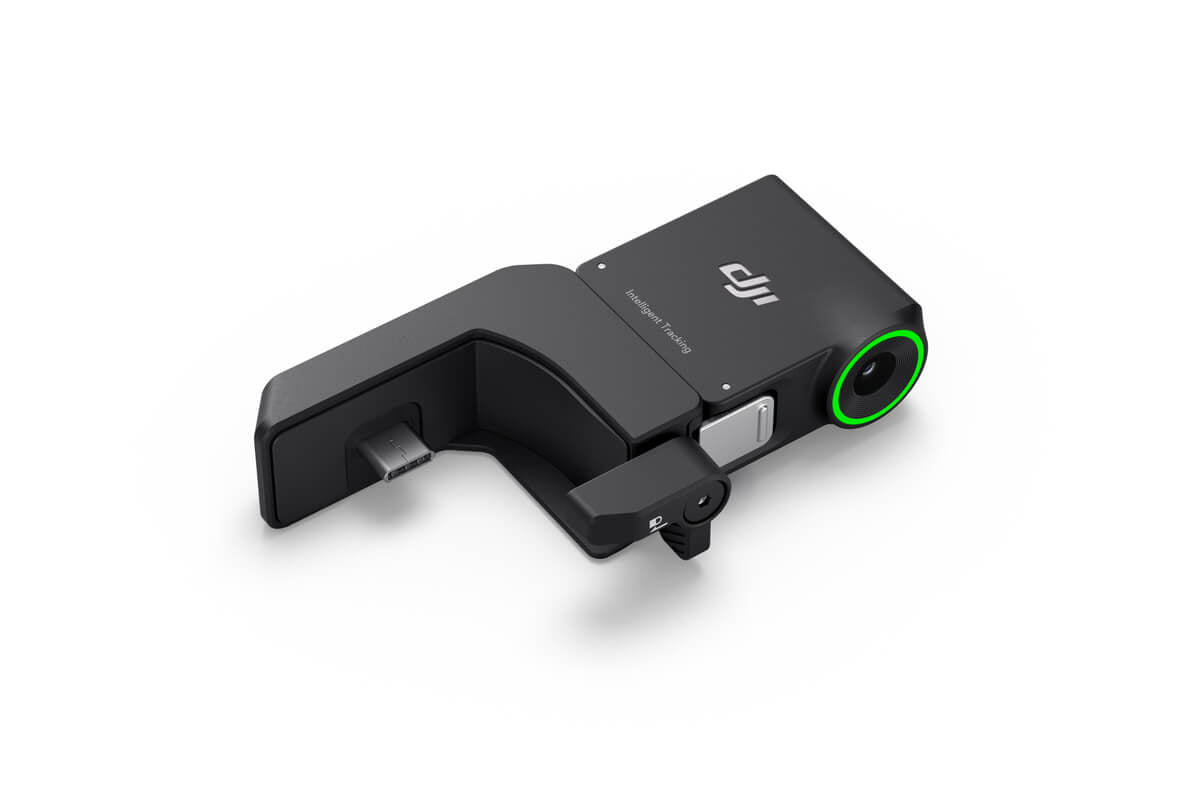

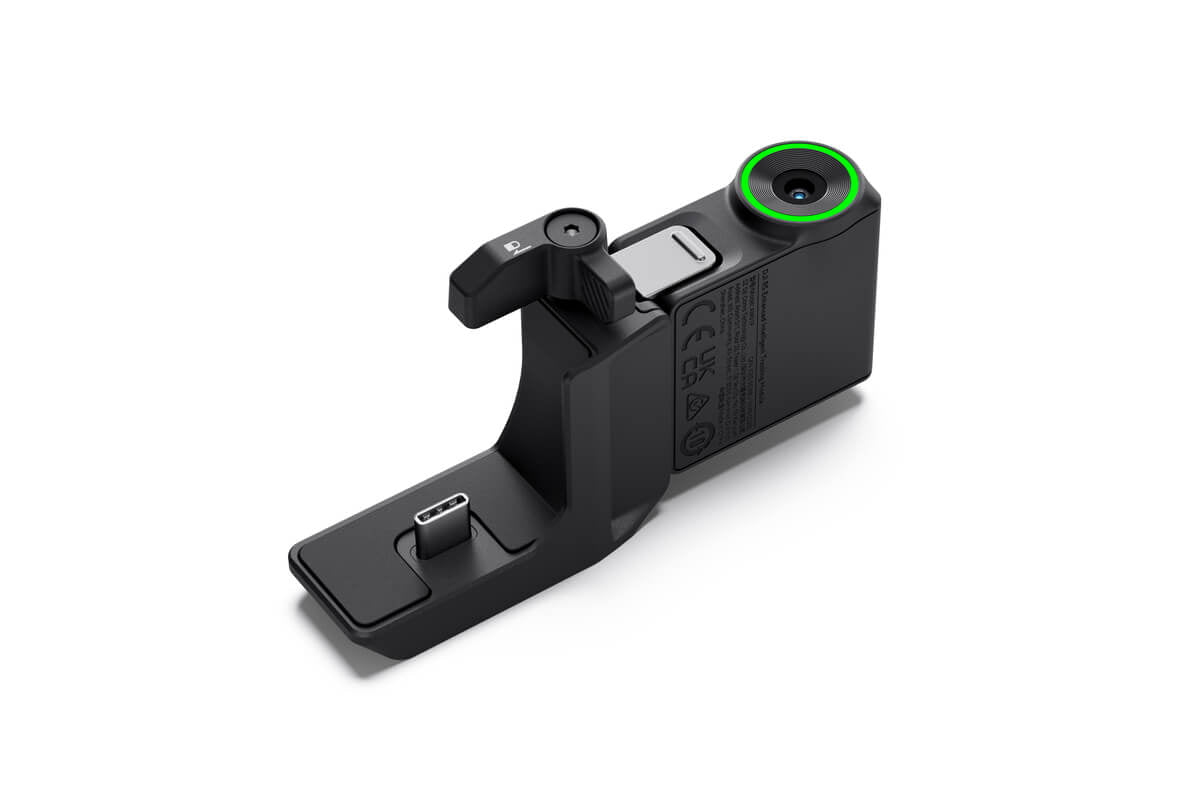

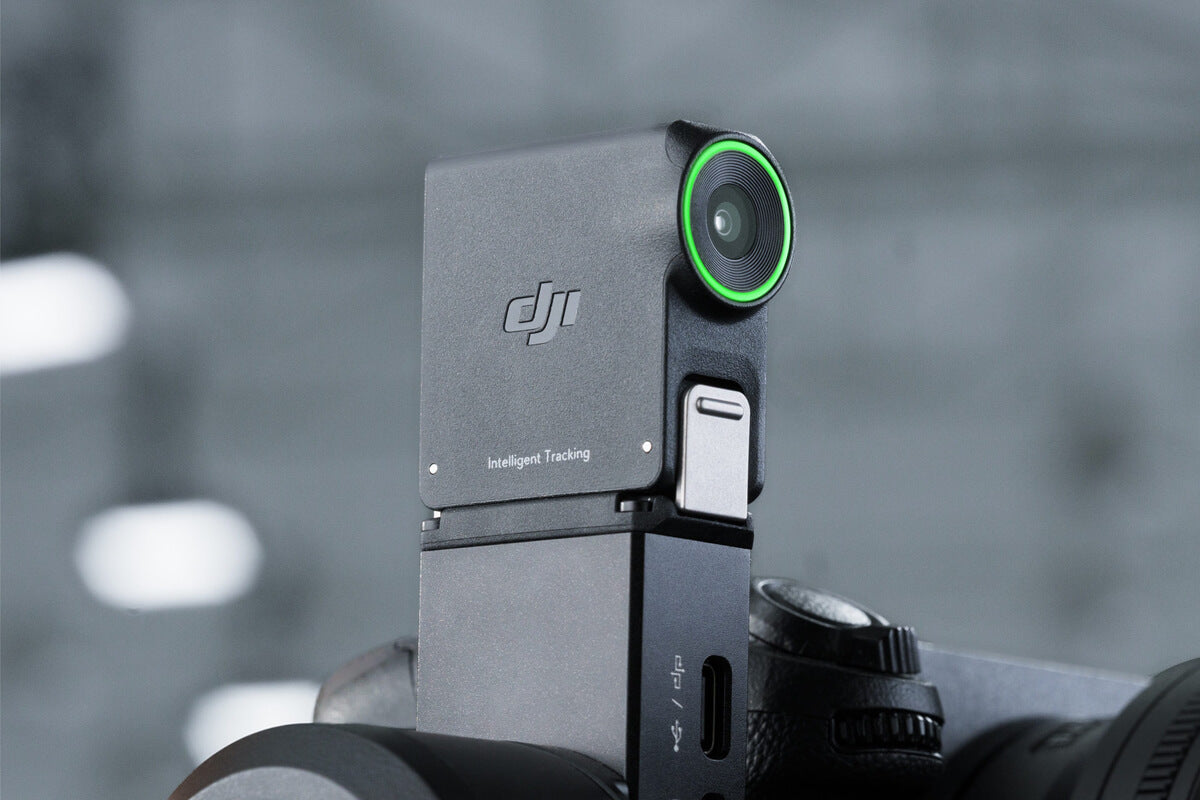

DJI RS Enhanced Intelligent Tracking Module

The DJI RS Enhanced Intelligent Tracking Module brings advanced subject tracking to the DJI RS 5. After you frame a person, vehicle, pet, or other subject from the gimbal's touchscreen, the module keeps that subject smoothly and precisely positioned in every shot — great for orbit moves, backward tracking, and solo filming from a fixed position.

Key features

• Magnetic quick-release attachment; weighs about 19 g
• Tracking distance of 0.5–10 m
• Trigger methods: gimbal trigger, gesture, and gimbal touchscreen
• Gesture functions: start/stop tracking, start/stop recording, and framing adjustment
• Low power draw (about 1 W)

Compatibility

Designed for the DJI RS 5. It can also be used with the DJI RS 4, RS 4 Pro, and RS 4 Mini via the included Adapter Mount, as long as the gimbal firmware is up to date. On those gimbals it supports tracking a single recognizable subject (person, vehicle, cat, or dog), needs an environment free of similar interfering targets, and the tracking view cannot be shown on the gimbal's touchscreen. Using the Adapter Mount also occupies the gimbal's RSS port, so the camera control cable can't be used at the same time.

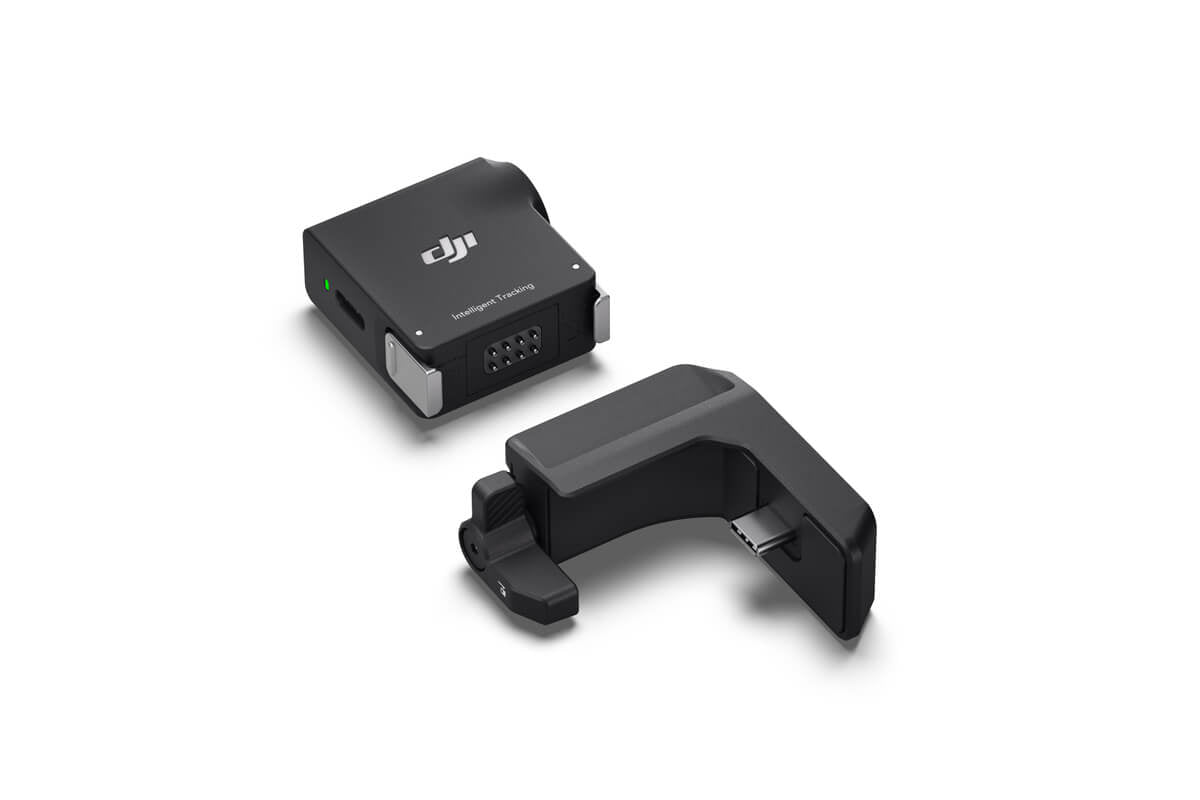

In the box

• RS Enhanced Intelligent Tracking Module × 1
• RS Intelligent Tracking Module Adapter Mount × 1

Specifications

• Weight: approx. 19 g
• Dimensions: 36.3 × 17.5 × 38.2 mm (L×W×H)
• Tracking distance: 0.5–10 m
• Operating environment: illuminance > 20 lux
• Power consumption: approx. 1 W
• Operating temperature: -10° to 45° C (14° to 113° F)
• Mounting method: magnetic attachment
