Overview_
The_HyperCore Prime 190Wh V-Mount Li-Ion Battery Pack_from_Core SWX_employs a 2-part system to provide a charge capacity of 190 Wh (14.8 V, 13.5 Ah). The battery pack complies with IATA, ICAO, and UN regulations for air transportation without restrictions. It can sustain large power draws to easily handle digital cinema cameras, like ARRI Alexa, Amira, Epic, Sony F65, and Phantom.

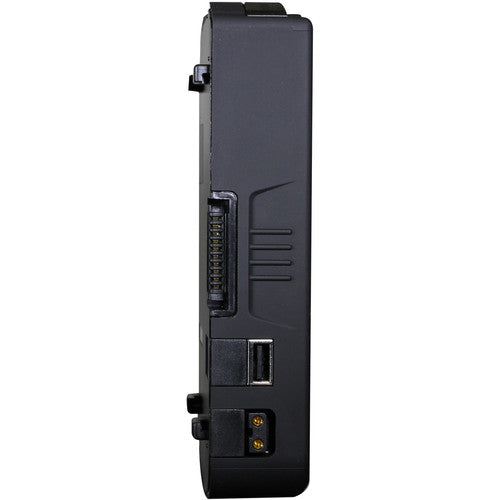

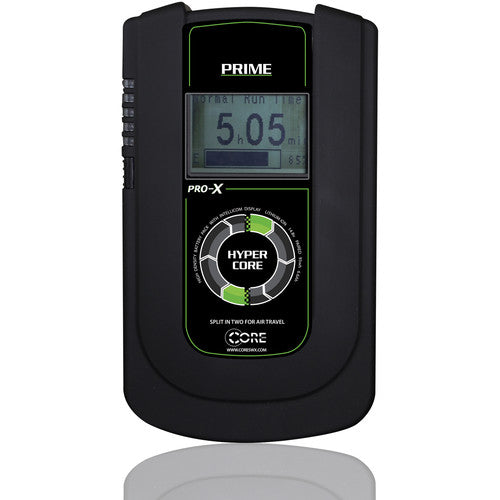

The battery pack has an integrated D-tap connection on the side, allowing you to power any 12 VDC device from this port. It features an additional USB output that can be used to charge your mobile device. It also features a large backlit runtime LCD and an LED grid on the front that provide the charging status of the battery.
Four of the HyperCore Prime batteries can be installed on the HyperCine Block Battery (available separately) providing a total charge capacity of up to 760Wh. Apart from being compatible with the Switronix charger lineup, this V-mount battery can also charge on the IDX, Sony, and RED chargers.
| Capacity | Nominal: 190 Wh (14.8 V, 13.5 Ah) Each Half: 95 Wh (14.8 V, 6.7 Ah) |
| Runtime | 7.6 hours @ 25 W |
| Maximum Load | 10 A |
| Mount Type | V-Mount |
| Dimensions | 3.8 x 6.6 x 2.4" (9.7 x 16.8 x 6.1 cm) |
| Weight | 2.6 lb (1.2 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 3.3 lb |
| Box Dimensions (LxWxH) | 8.0 x 7.0 x 4.4" |
