Key Features
Description
Description

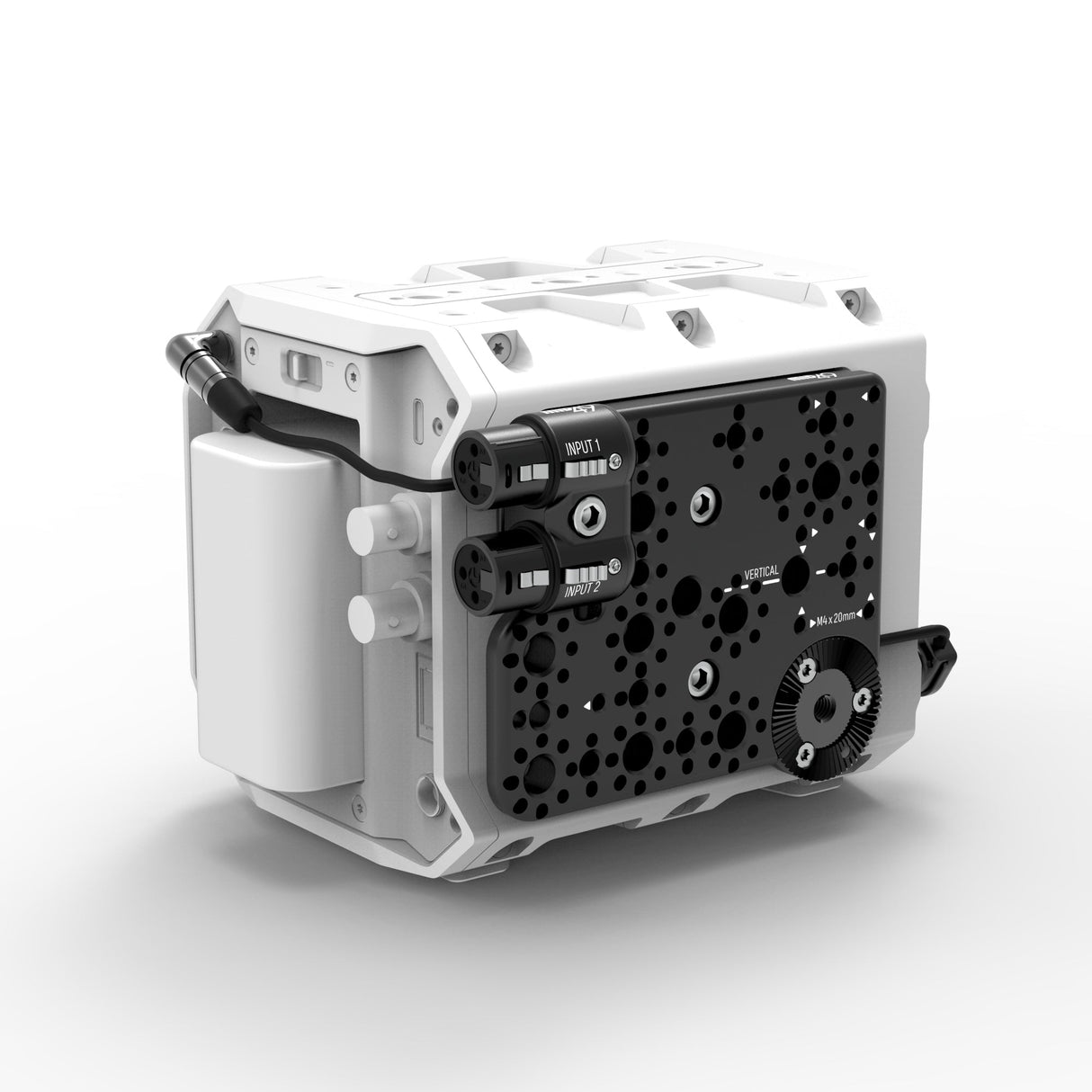

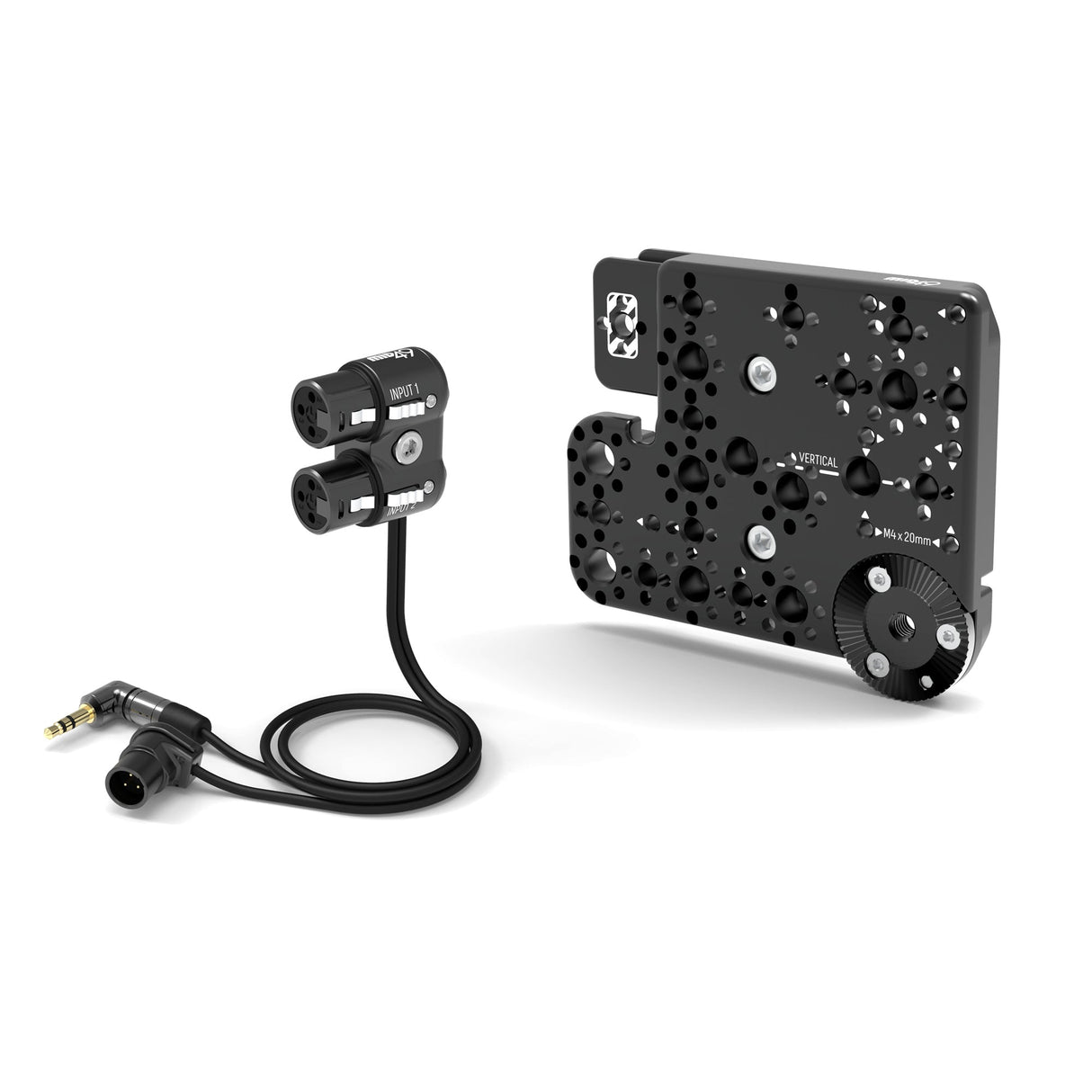

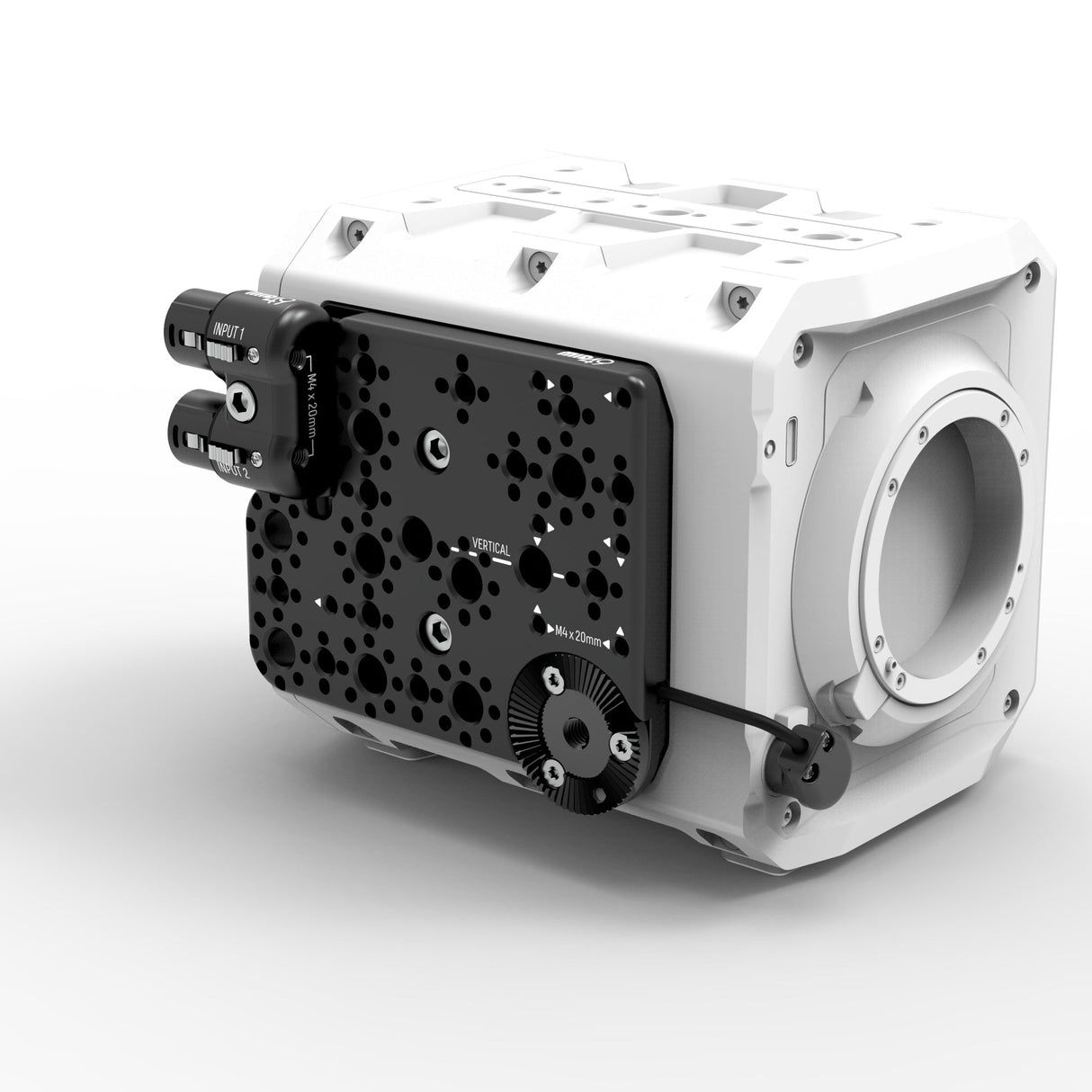

This MID49 bundle pairs two separate PYXIS accessories: a side plate that mounts to the camera body with 1/4-20 and 3/8-16 threaded holes plus ARRI locating pins and a standard rosette, and an Audio Breakout AB-9 that converts the camera's front mini-XLR and rear 3.5mm TRS jack into two standard full-size XLR inputs. The side plate is machined to the correct thickness for mounting the camera vertically on MID49's Baseline 15mm LW baseplate at the right lens height, and the AB-9 gives you phantom-powered balanced audio on input 1, with input 2 unbalanced and without phantom power.
- Side plate for Blackmagic PYXIS: 1/4-20 and 3/8-16 holes with ARRI locating pins and a standard rosette, sensor-axis marked for vertical mounting.
- Audio Breakout AB-9 included: converts the camera's mini-XLR and 3.5mm TRS into two full-size XLR inputs.
- Input 1 balanced with phantom power: via camera menu; input 2 is unbalanced with no phantom power available.
- 9.5" (24cm) cable: custom low-profile mini-XLR connector and Neutrik 3.5mm TRS plug.
- 7.2oz (204g), 3.58 x 4.45 x 1.10": combined product weight and dimensions.
