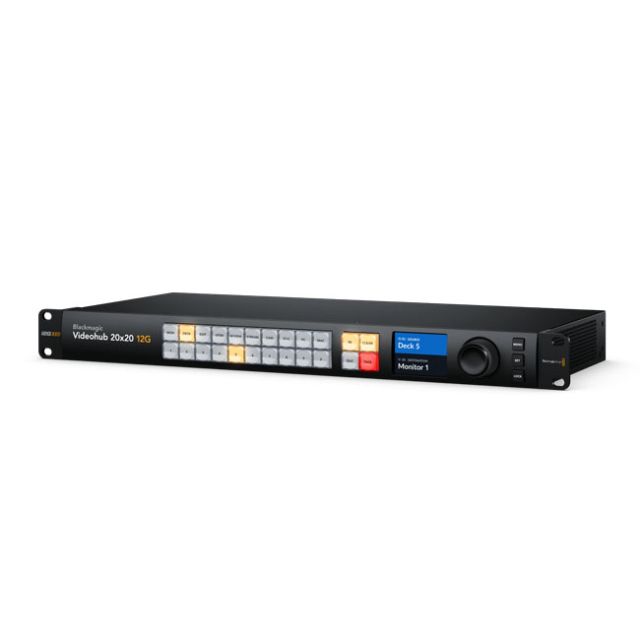

Blackmagic Design Videohub 20x20 12G

The Blackmagic Design Videohub 20x20 12G is a zero-latency SDI router that lets facilities route any combination of SD, HD, and Ultra HD sources up to 2160p60 through the same router simultaneously. Its built-in front panel includes a spin knob, direct-entry buttons, and an LCD that displays either labels or live video from the selected source, so operators can browse and confirm inputs without an external monitor. Built-in SDI re-clocking on every 12G-SDI input regenerates the signal for longer cable runs and improved jitter performance.

• 20x20 12G-SDI Routing: Routes any combination of SD, HD, and Ultra HD up to 2160p60 through the same router simultaneously.
• Built-In Control Panel with Live Video: LCD displays live video and labels for visual source browsing via spin knob and direct-entry buttons.
• SDI Re-Clocking on Every Input: Regenerates the video signal on all 12G-SDI inputs for longer cable runs and improved signal integrity.
• Compatible with Hardware Control Panels: Works with Videohub Master Control Pro and Smart Control Pro for remote operation.
• Free Videohub Software Control: Available for Mac, Windows, and iPad, with a free SDK for broadcast automation integration.
• Ethernet Remote Control: Enables control from external hardware or software panels anywhere on the network.
