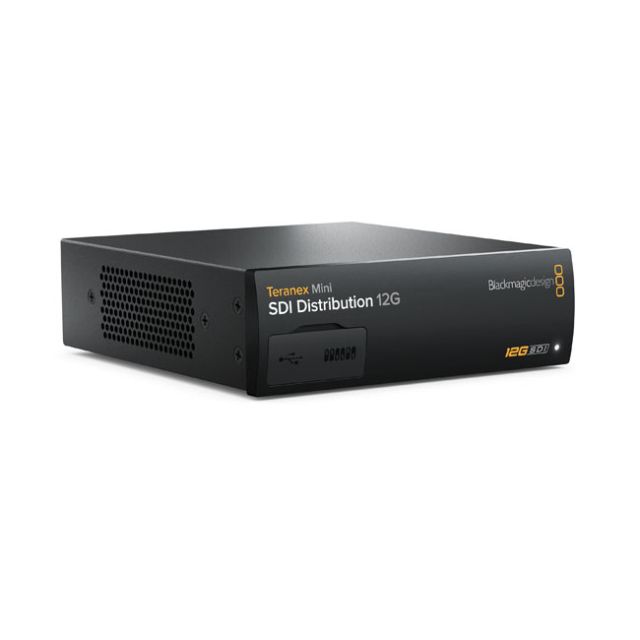

Blackmagic Design Teranex Mini - SDI Distribution 12G

Teranex Mini - SDI Distribution 12G Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders. Connections: SDI Video Input 1 x 12G-SDI SD/HD/2K/4K auto switching. SDI Video Output 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input Multi Rate Support Automatic switching between SD/HD/2K and 4K Updates and Configuration USB or Ethernet Re-Clocking Yes Standards: SD Format Support 525/29.97 NTSC, 625/25 PAL / HD Format Support 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. / 2K Format Support 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, / Ultra HD Format Support 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60. / 4K Format Support 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30. / SDI Compliance SMPTE 259M, 292M, 296M, 372M, 425M, ST 2081 & ST 2082 / SDI Video Rates SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI. / SDI Video Sampling 4:2:2 and 4:4:4 / SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. / SDI Color Space YUV & RGB Software Software Control Mac OS X and Windows software upgrade via USB and Ethernet. / Internal Software Upgrade Via included updater application Settings Control Basic Settings Control Mini Switches, USB and Ethernet via free software utility. / Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons. Power Requirements Power Supply 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input. / Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet). / Power Consumption 18 Watts / Operational Voltage Range 90 - 240V AC Environmental Specifications Operating Temperature 0°to 40°C (32° to 104°F) / Storage Temperature -20°to 60°C (-4° to 140°F) / Relative Humidity 0% to 90% non-condensing What's Included: Teranex Mini - S DI Distribution 12G Software SD Card Warranty 3 year Limited Manufacturer's Warranty.
