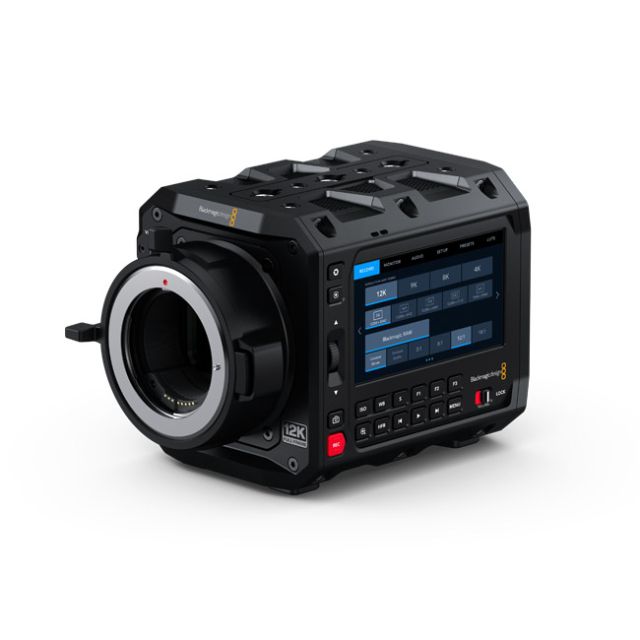

Blackmagic Design PYXIS 12K EF

The Blackmagic Design PYXIS 12K EF is the EF-mount version of Blackmagic's modular digital film camera, built around a full-frame 12,288 x 8040 RGBW sensor with 16 stops of dynamic range. It's aimed at productions and shooters who already have a collection of Canon-mount photo or cine lenses and want to put them on a high-end cinema sensor without buying new glass. Like the rest of the PYXIS line, its compact body is designed to be rigged into whatever configuration a shoot calls for.

• 12K full-frame sensor: A 12,288 x 8040 RGBW sensor with 16 stops of dynamic range and a built-in optical low pass filter matched to the sensor.
• Locking EF mount: Works directly with Canon-compatible photo and cine lenses you may already own from DSLRs or Blackmagic Pocket Cinema Cameras.
• Dual Blackmagic RAW and proxy recording: Records 12-bit Blackmagic RAW and small H.264 proxies simultaneously to dual CFexpress card slots.
• Modular, riggable body: A CNC-machined aerospace aluminum body with multiple 1/4" and 3/8" mounts and swappable side plates for handles, mics, or SSDs.
• 4-inch HDR touchscreen: A 1500-nit built-in display handles monitoring, focus assist, exposure tools, and 3D LUTs without an external monitor.
• Blackmagic Cloud ready: Uploads H.264 proxies over Ethernet or a tethered 4G/5G phone so editors can start cutting while you're still shooting.
• Built-in live streaming: A hardware streaming engine sends RTMP and SRT feeds directly to YouTube, Facebook, X, or a Blackmagic ATEM Streaming Bridge.
• DaVinci Resolve Studio included: Ships with a full license for editing, color grading, audio post, and visual effects.

Specifications

• Sensor: 36 x 24mm full-frame RGBW, 12,288 x 8040 native resolution
• Dynamic range: 16 stops
• ISO: 200-3200, optimized at 800 (up to 25,600 available)
• Lens mount: Fixed locking EF mount (Canon-compatible photo/cine lenses)
• Frame rates: Up to 40fps at 12K 3:2 open gate; 60fps at 12K 2.4:1; 112fps at 8K; true anamorphic 6:5 at 9.6K
• Media: Dual CFexpress slots plus a USB-C 10Gb/s expansion port for external disks/SSDs
• Recording: 12-bit Blackmagic RAW plus simultaneous H.264 proxy
• Built-in display: 4-inch HDR touchscreen, 1500 nits
• Connections: 12G-SDI out, mini XLR (48V phantom power), 3.5mm mic in, timecode in, reference in, headphone out, Ethernet, USB-C
• Battery: BP-U series (up to 3+ hours on the highest-capacity battery)
• Included software: DaVinci Resolve Studio
