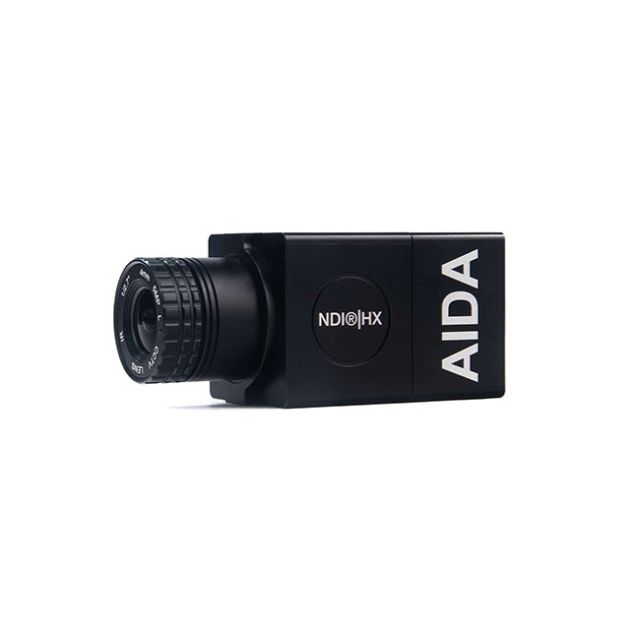

AIDA Imaging Full HD NDI??|HX / IP POV Camera

AIDA Imaging Full HD NDI??|HX / IP POV Camera

NDI|HX just got a whole lot smaller

Don??t let the HD-NDI-CUBE fool you. Its tiny form factor does not compromise any FULL-HD quality seen in our POV cameras. With the ability to output NDI|HX, SRT, RTSP and RTMP simultaneously, its no wonder why the CUBE is a production game-changer.
MAIN FEATURES

Full-HD 1/3? Progressive Scan CMOS sensor capable of 1080 60p NDI??|HX Video.
Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
Versatile design with top and bottom tripod mounts for unique shot creation.
USB SVC port for easy network setting adjustments and updates.
Small form-factor makes it placeable in discreet places
Perfectly suited as extra angles for any new or existing NDI??|HX setup.

SPECIFICATIONS
VIDEO
Image Sensor: 1/3? Progressive CMOS
Sensor Size: 5.346mm x 3.003mm (16.9)
Effective Pixels: Horizontal: 1920, Vertical: 1080
Pixel Size: 2.75 ?m (H) x 2.75 ?m (V)
Resolution: 1080p, 1080i, 720p
Resolution Rate:

1080 60p/59.94/50p/30p/29.97p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p

Output IP: (NDI|HX/SRT/RTMP/RTSP)
Color Space: 4:2:2 (YCbCr) 10bit
Min Illumination: 0.2Lux (day), 0.1Lux (Night)
White Balance: Auto & Manual (9000 - 11,000 K)
LENS
Lens: C/CS Mount (Default 4mm HD Lens)
STANDARD
IP Protocol UDP|IP, RTSP|RTMP, SRT, NDI|HX
PHYSICAL
Camera Control Protocol: VISCA Over IP
Operation Temp: 32?F - 104?F
Dimension: 86mm x 40mm x 40mm / 3.38? x 1.57? x 1.57? (with default 4mm lens)
Weight: 180g / 0.39lbs (with default 4mm lens)
Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)
