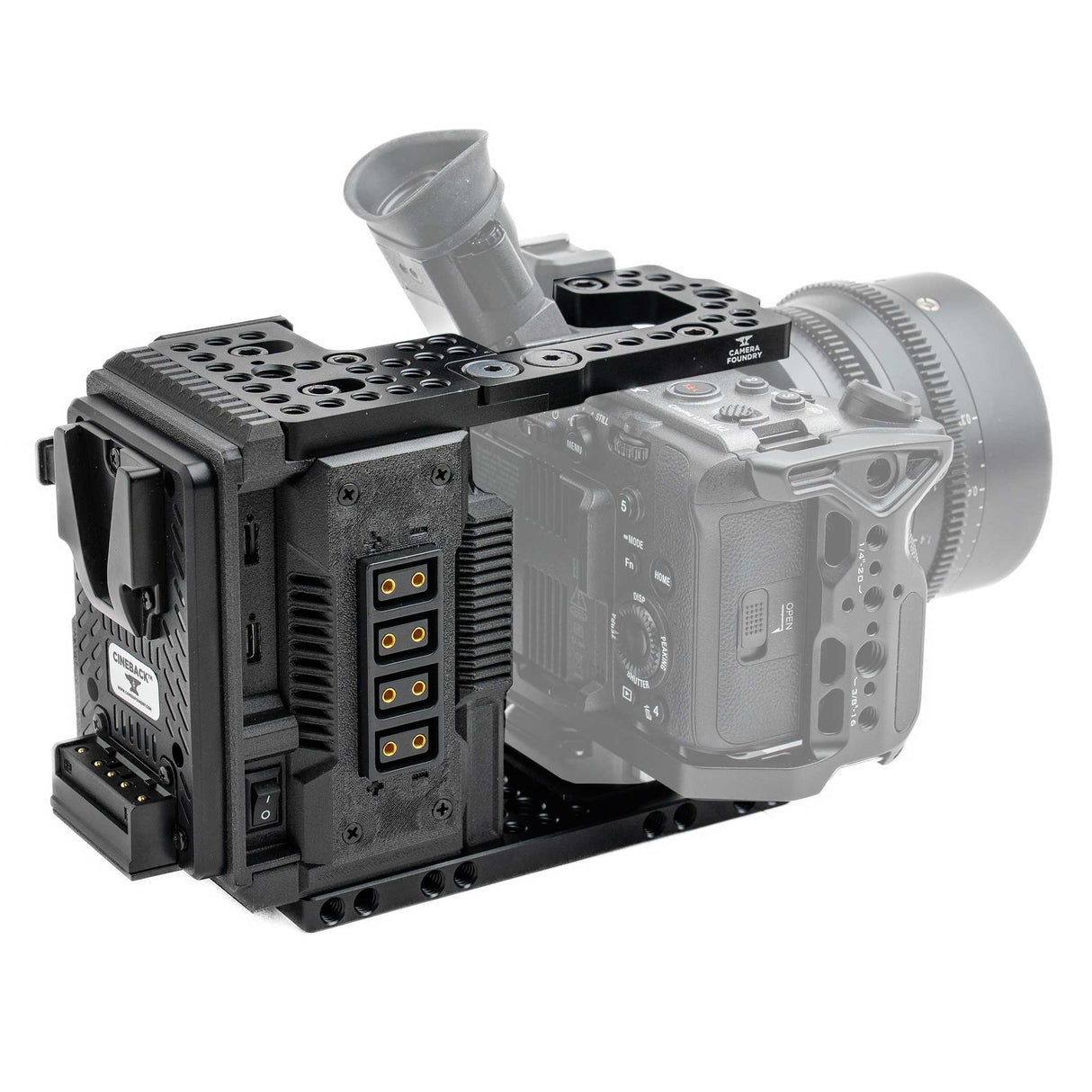

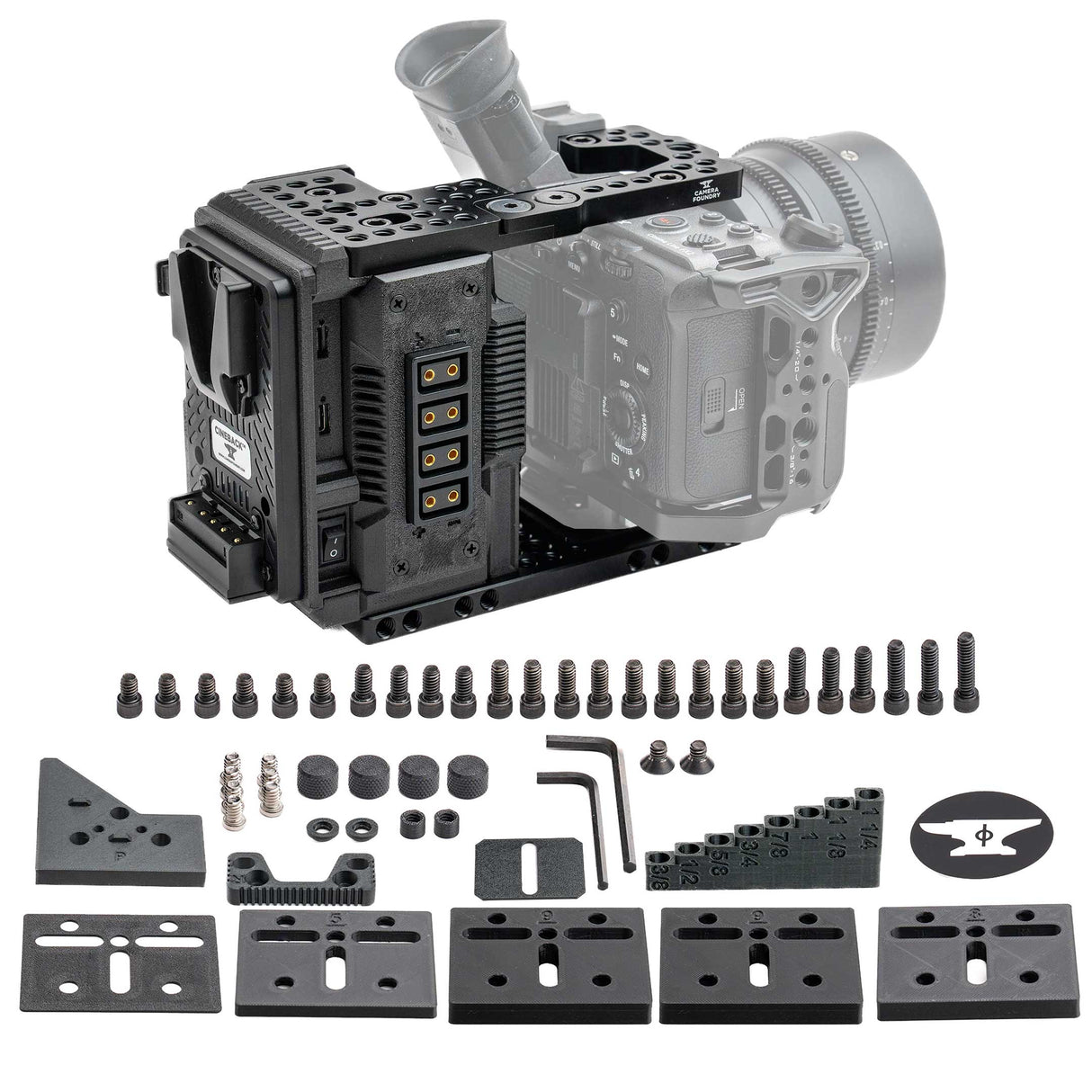

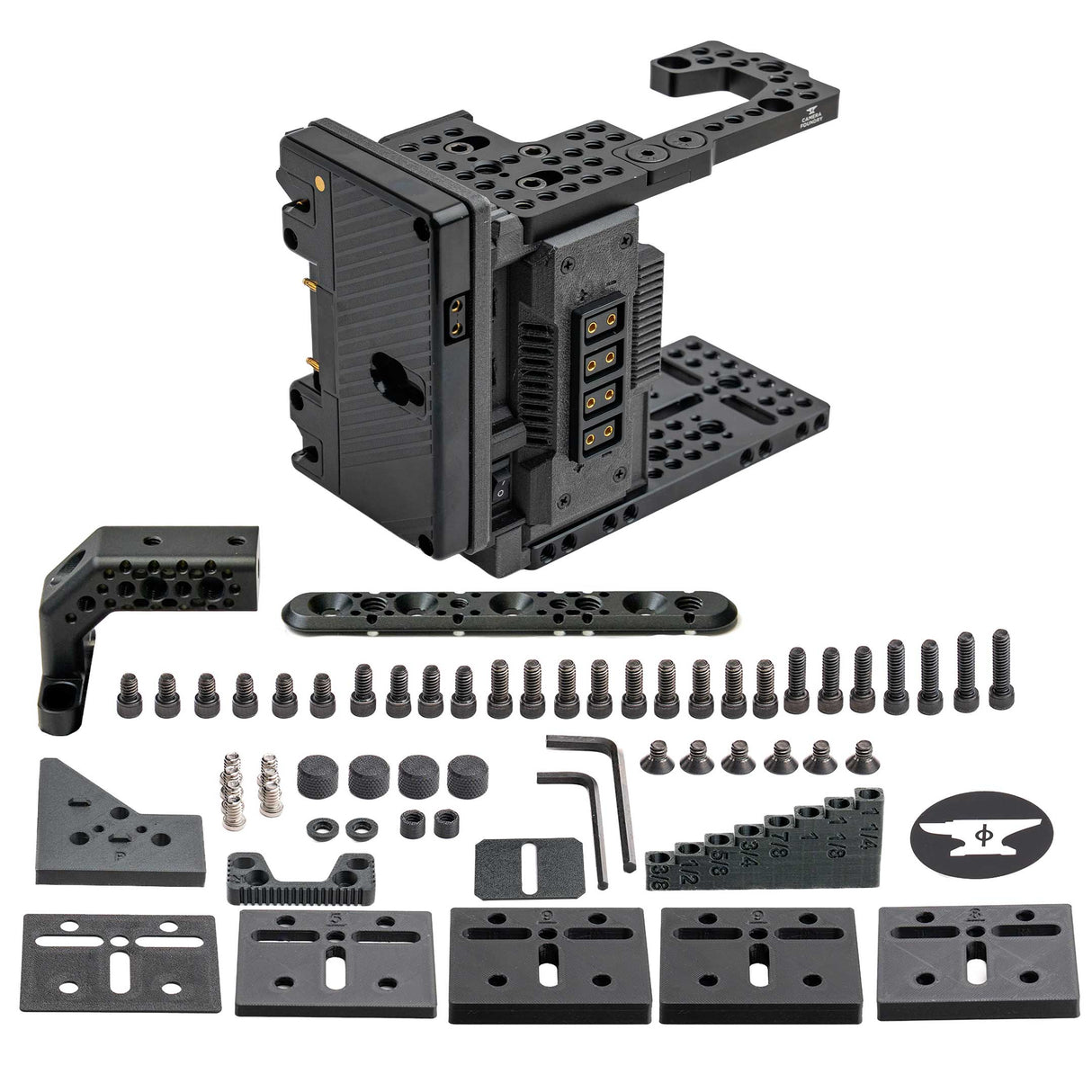

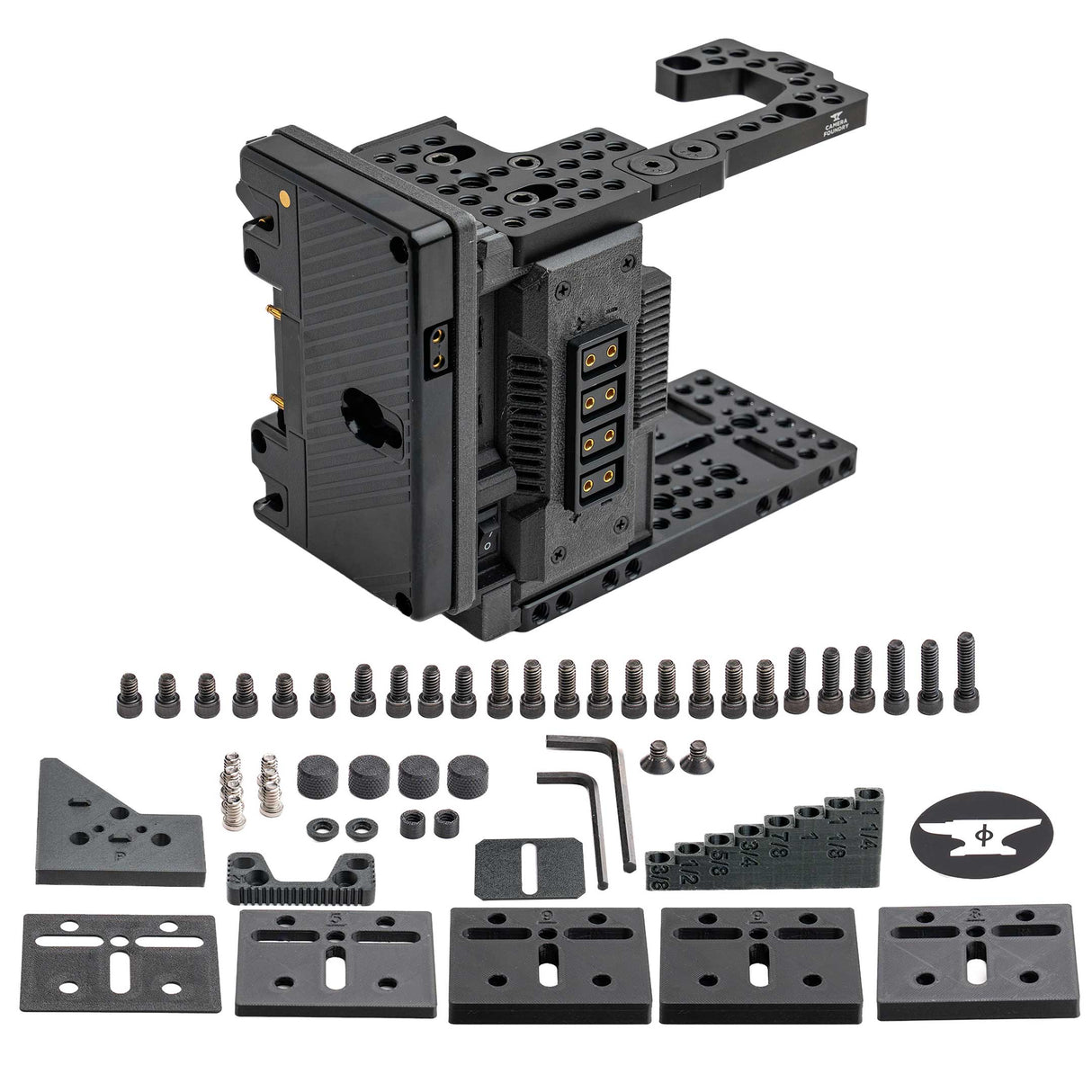

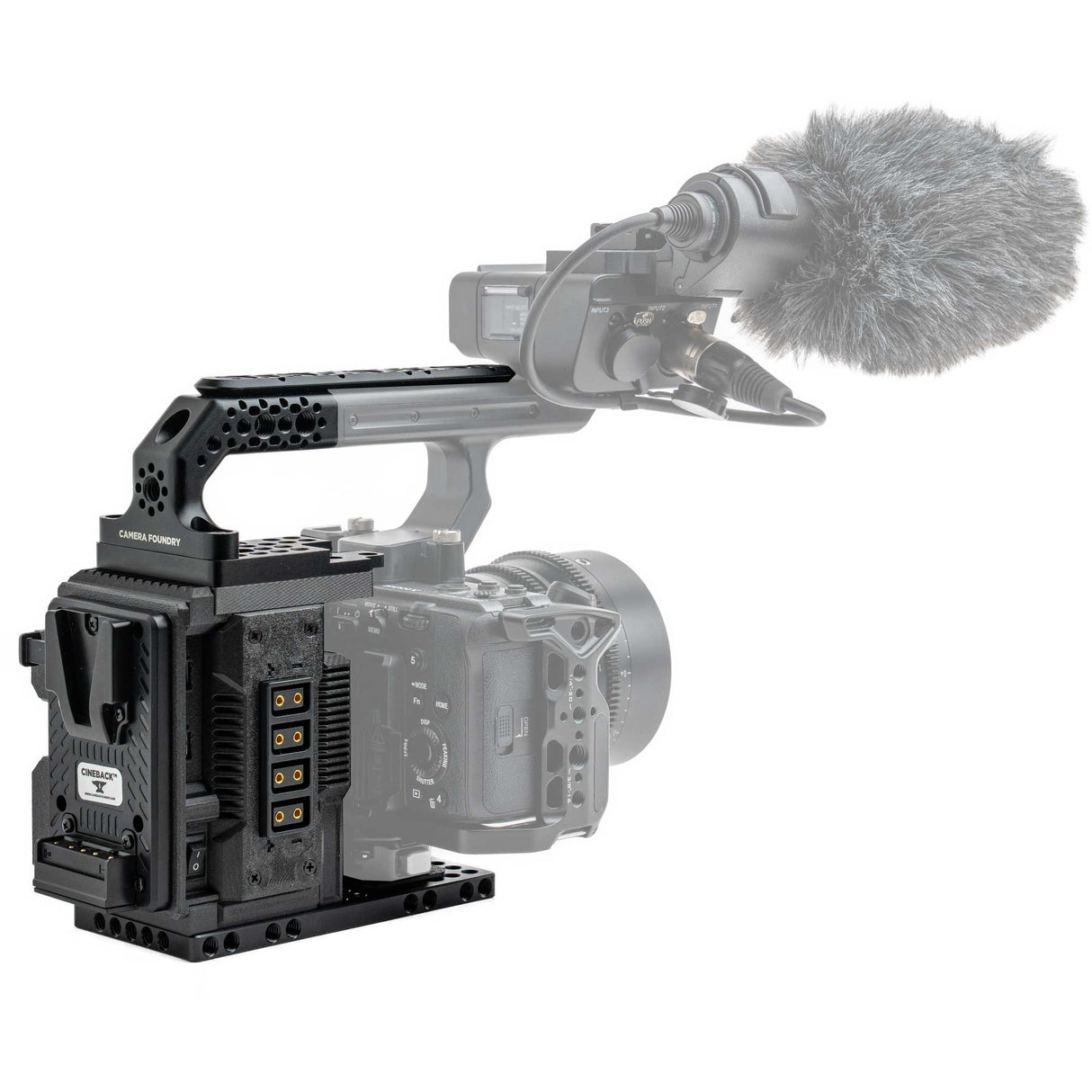

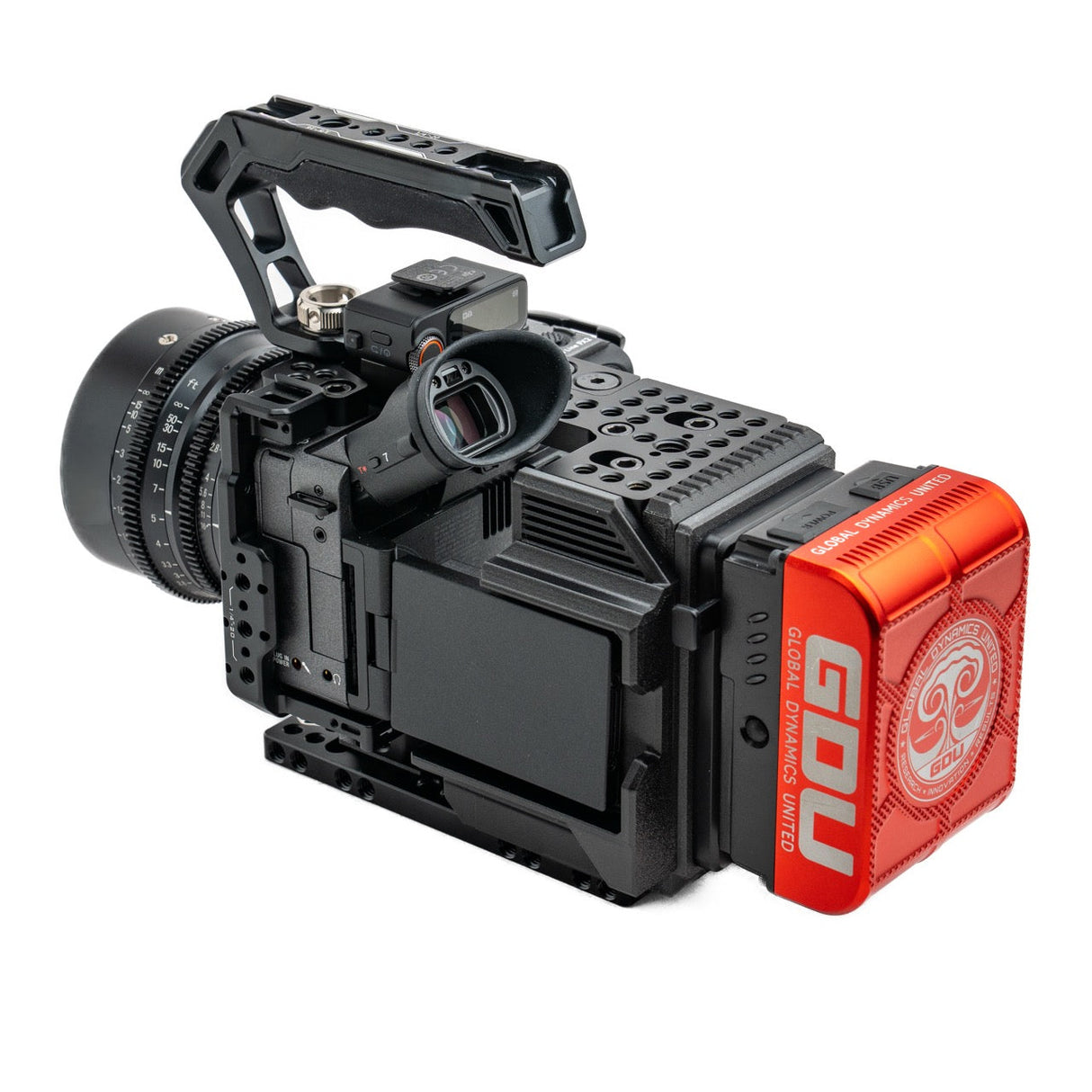

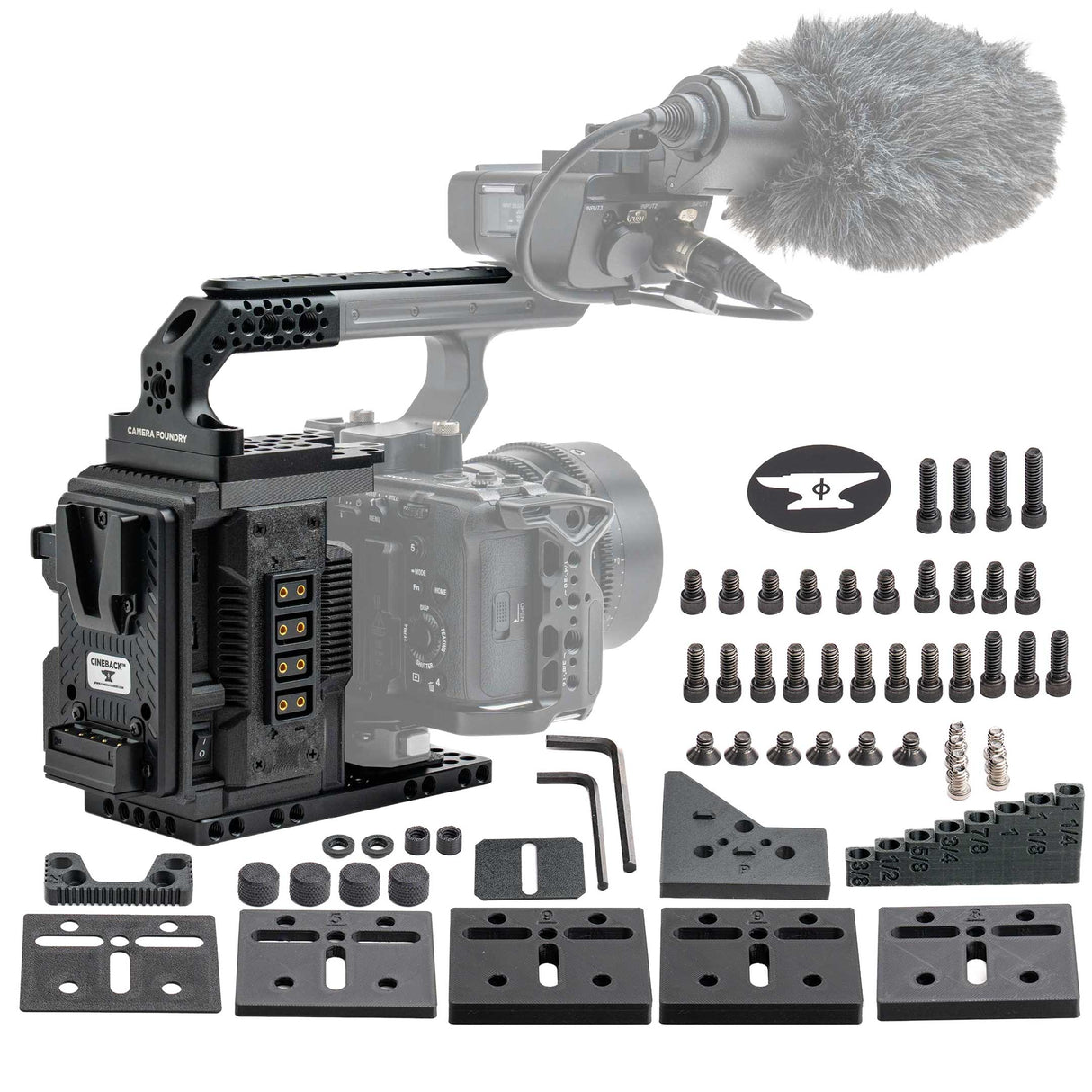

CineBack® for Sony FX2

Turn your Sony FX2 into a cinema camera with CineBack®!

CineBack® is a camera rig that bolts onto the back of your camera giving you tons of mounting options, power choices and other features that you can learn about in the video and description below.

Just add one of the supported cages below and you have a cinema camera!

CineBack® Sony FX2 Features

• V-Mount or Gold Mount battery plate for longer run time
• Dual USB-C Power Delivery power jacks for powering your camera and other devices (right angle USB-C cables here)
• Rotating D-Tap splitter with 4 outputs to power your camera and other accessories
• Works with the Sony XLR Handle
• Quick release compatible when you use the Falcam F38 or SmallRig HawkLock H38 quick release.
• Compatible with the DJI MIC 2 and DJI MIC 3 receivers.
• Cable management and storage compartment and with cable routing built in.
• Power switch to completely cut power so there is no battery drain
• Screen side mount allowing you to use your camera screen in cine mode, open or closed
• Top and bottom cheese plates for mounting accessories and other rigging gear
• Modular with future accessories possible (see all CineBack® accessories here).

Required Gear

To get this version of CineBack® working, you will need one of the following cages:

• SmallRig FX2 Full Cage (Model 5587)
• SmallRig FX3 Half Cage (Model 5591)
• Tilta FX2 Full Cage (Model TA-T88-FCC-B)

Specifications

• USB-C Jack (Each)
• Output: Automatically adjusts between 3.3V~12V when connected to USB-C PD (Power Delivery) compatible devices (input voltage should be higher than output voltage). 65W max (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)
• Output over-current protection
• Short-circuit protection
• Over-temperature protection
• D-Tap 4x Splitter
• Output: Whatever voltage you connect to the V-Mount or Gold Mount. Often 14.8v
• 10A Max output current.
• Weight: TBD (no camera, battery or camera cage)
