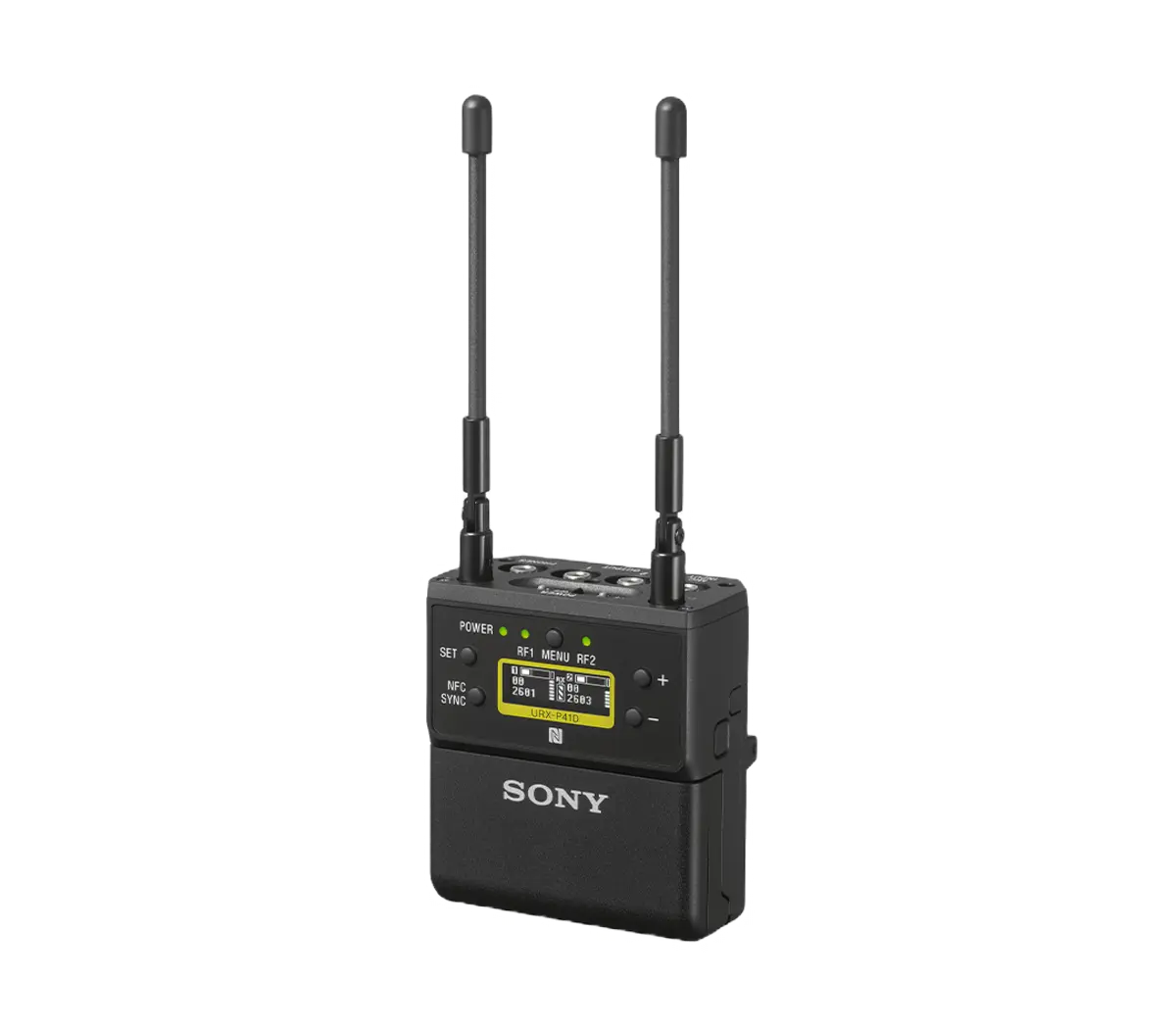

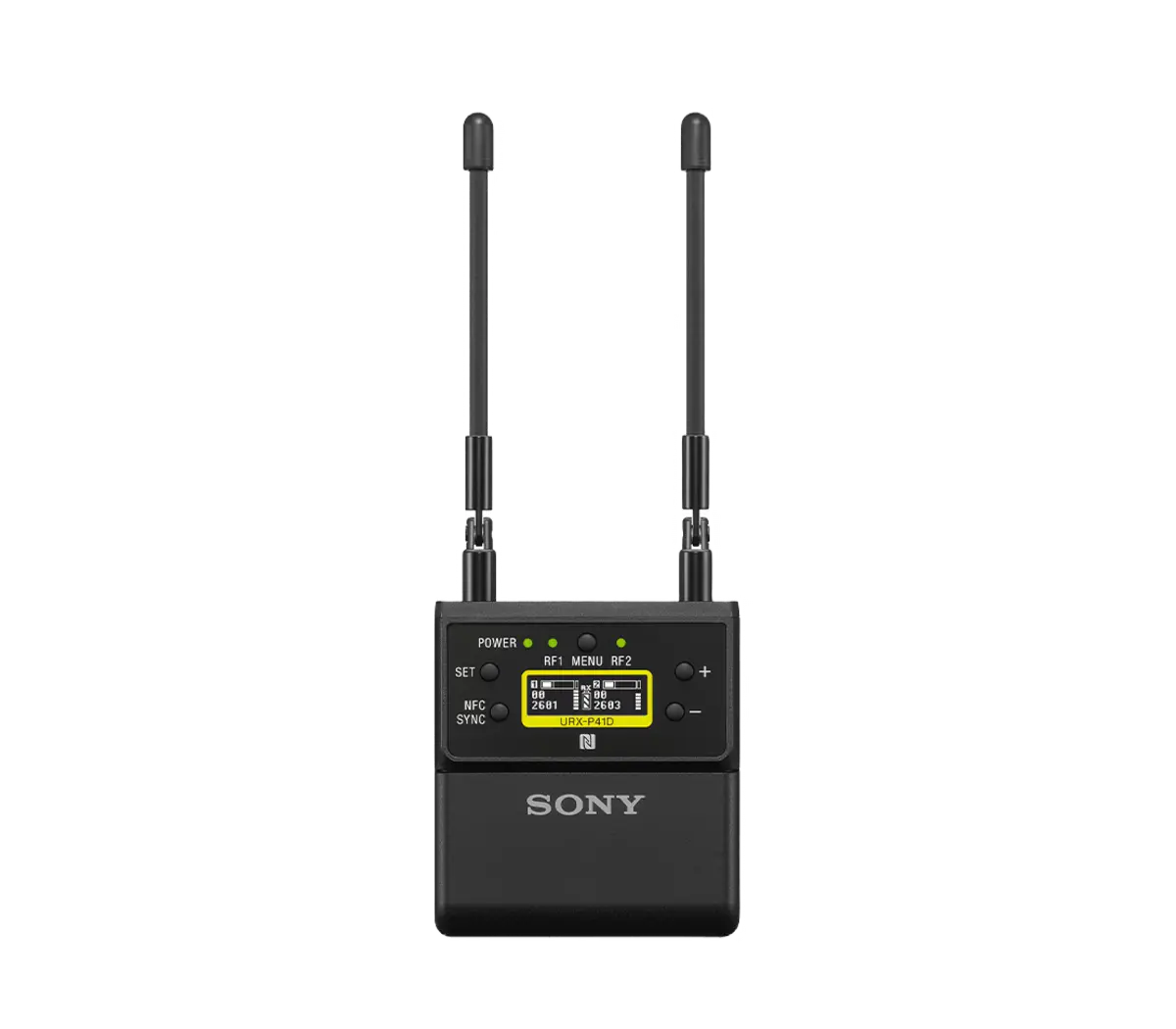

| Urx p41 d dual channel portable receiver carrier frequencies:
|
14 UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) 25 UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25–36) 42 LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42–51) 90 U: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21 CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21–29) 33 CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33–40) 42 CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42–48) 29 CN: 638.025 MHz to 694.000 MHz (UHF-TV channels 29–35) E: 794.125 MHz to 805.875 MHz BJ: 806.125 MHz to 809.750 MHz KR: 925.125 MHz to 937.375 MHz |
| Urx p41 d dual channel portable receiver distortion:
|
0.9% or less (1-k Hz sine wave, 5-k Hz modulation) |
| Urx p41 d dual channel portable receiver audio delay:
|
Approx. 0.35 ms (analog output) Approx. 0.24 ms (digital output) |

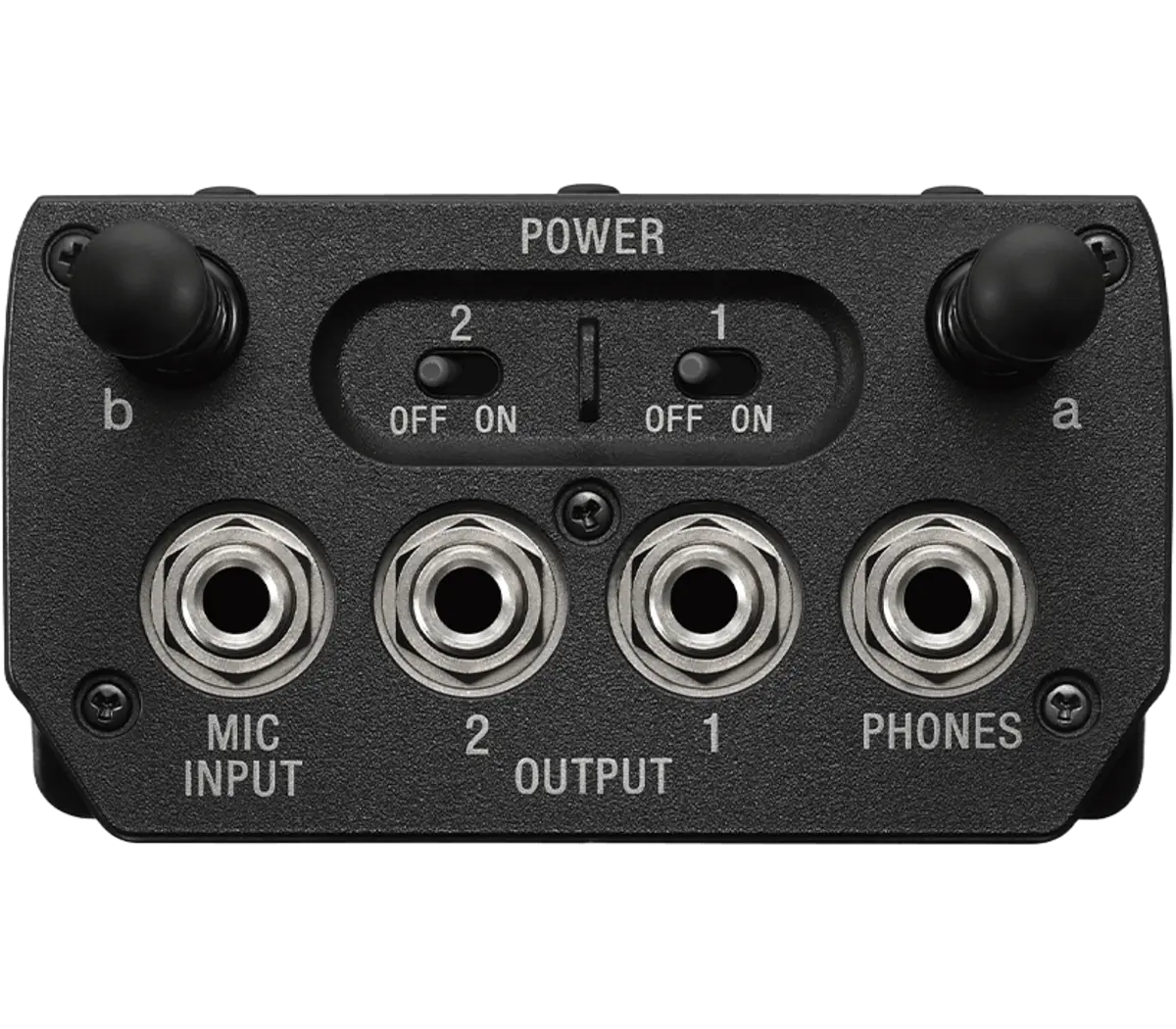

| Urx p41 d dual channel portable receiver analog input:
|
3.5-mm diameter three-pole locking mini-jack (unbalanced) |
| Urx p41 d dual channel portable receiver analog input level:
|
-50 d BV (±12 d B Adjustable, 3-d B step) |
| Urx p41 d dual channel portable receiver headphone output connector:
|
3.5 mm diameter mini jack |
| Urx p41 d dual channel portable receiver headphone output level:
|
Max. 10 m W (16-ohm) |
| Urx p41 d dual channel portable receiver tone signal frequency:
|
In UWP-D compander mode: 32.382 k Hz In UWP compander mode: 32 k Hz In WL 800 compander mode: 32.768 k Hz |
| Urx p41 d dual channel portable receiver display:
|
OLED |
| Urx p41 d dual channel portable receiver power requirements:
|
DC 3.0 V (with two AA-size alkaline (LR 6) batteries) DC 5.0 V (supplied from USB Type-C connector) |
| Urx p41 d dual channel portable receiver storage transport temperature:
|
–20 °C to +55 °C (–4 °F to +131 °F) |
| Urx p41 d dual channel portable receiver mass:
|
Approx. 159 g (5.6 oz) (excluding batteries) |
| Utx b40 bodypack transmitter carrier frequencies:
|
14 UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) 25 UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) 42 LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51) 90 UC: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21 CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29) 33 CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) 42 CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) 38 CN: 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46) E: 794.125 MHz to 805.875 MHz BJ: 806.125 MHz to 809.750 MHz KR: 925.125 MHz to 937.500 MHz |
| Utx b40 bodypack transmitter rf output power:
|
30 m W/5 m W selectable (UC, U, CE, LA, CN models) 10 m W/2 m W selectable (J, E, KR models) |
| Utx b40 bodypack transmitter input connector:
|
3.5 mm diameter 3-pole locking mini jack |
| Utx b40 bodypack transmitter reference audio input level:
|
–60 d BV (MIC input, GAIN MODE set to NORMAL, 0-d B attenuation) +4 d Bu (LINE input) |
| Utx b40 bodypack transmitter distortion:
|
0.9% or less (–60 d BV, 1 k Hz input) |
| Utx b40 bodypack transmitter audio delay:
|
Approx. 0.35 ms |
| Utx b40 bodypack transmitter tone signal frequency:
|
In UWP-D compander mode: 32.382 k Hz In UWP compander mode: 32 k Hz In WL 800 compander mode: 32.768 k Hz |
| Utx b40 bodypack transmitter display:
|
OLED |
| Utx b40 bodypack transmitter power requirements:
|
DC 3.0 V (two LR 6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector) |
| Utx b40 bodypack transmitter storage transport temperature:
|
-20 °C to +55 °C (–4 °F to +131 °F) |
| Utx b40 bodypack transmitter mass:
|
Approx. 83 g (2.9 oz) (excluding batteries) |
