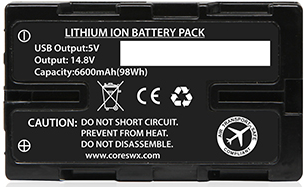

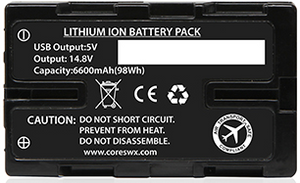

Core SWX Nano-U98 14.8V Battery with D-Tap for Select Sony Camcorders
Key Features
Description
Description
OVERVIEW
- 98Wh, 6600mAh Battery Pack
- For Sony FS5 & Select PMW/PXW Camcorders
- 12V SMBUS D-Tap Powers Accessories
- 1 x USB Port
- 4-LED Power Gauge
- 8-Hour Average FS5 Runtime
The Nano-U98 14.8V Battery from Core SWX is designed for use with the FS5 and other select Sony PMW/PXW cameras. This clever solution provides a 12V D-Tap port often found in larger pro-style Gold or V-mount batteries, but in the smaller form of the original battery type. The D-Tap is a smart port with the ability to transmit SMBUS battery data. One 5V, 3A USB port is also provided for powering compatible accessories.
Features of the Nano-U98 include a push button, four-LED power gauge, and compatibility with OEM battery chargers. When fully charged, this battery has an average runtime of 8 hours based off the draw of a Sony FS5.
- Features
- Compatible with the FS5 and other select Sony PMW/PXW cameras
- The average runtime is 8 hours based off the draw of a Sony FS5
- 12V, SMBUS D-Tap port for powering cine-style accessories
- 4-LED power gauge
- 98Wh, 6600mAh battery pack
- 1 x USB Port
SPECS
| Mount / Series Type | Sony BP-U Series |
| Chemistry | Lithium-Ion |
| Capacity (Wh) | 98 Wh |
| Amp-Hours | 6600 mAh |
| Output Voltage | 14.8 VDC |
| Accessory Port | 1 x D-Tap |
| USB Output | 5 V, 3 A |
| Dimensions (W x H x D) | 3.9 x 2.6 x 1.6" / 97.8 x 66.0 x 41.9 mm |
| Weight | 0.9 lb / 408.2 g |
| Packaging Info | |
|---|---|
| Package Weight | 1.15 lb |
| Box Dimensions (LxWxH) | 4.4 x 4.0 x 2.3" |
