| Maximum energy:
|
76 Ws |
| Light distribution:
|
Set in C.Fn-21 0: Standard A light distribution setting that balances light distribution and the guide number. 1: Guide number priority Prioritizes illumination at the center of the screen, the periphery may be dark. 2: Light distribution priority Light distribution that reduces peripheral darkness. |
| Recharge time:
|
Power Supply Recharge Time (approx.) Flash count (approx.) Normal Flash Quick Flash Flash Power Min. Max. Min. Max. Min. Max. Speedlite EL-1 0.1 sec. 0.9 sec. 01. sec. 0.8 sec. 335 2345 Speedlite EL-1 + CP-E 4 N (AA/LR 6 Alkaline batteries) 0.1 sec. 0.6 sec. 01. sec. 0.5 sec. 560 3920 Speedlite EL-1 + CP-E 4 N (AA/LR 6 Ni-MH batteries) 0.1 sec. 0.4 sec. 01. sec. 0.35 sec. 680 4760 * Based on Canon Testing Standards |
| Dot count:
|
Approx. 56,000 dots (320 x 176) |
| Personal functions:
|
9 Functions Function Number Setting P.Fn-01: AF-assist beam emission method 0 Infrared 1 Emmitting small series of flashes P.Fn-02: Quick flash 0 ON 1 OFF P.Fn-03: Flash firing during linked shooting 0 OFF 1 ON P.Fn-04: Change settings with the direct dial operation 0 OFF 1 ON P.Fn-05: FE memory 0 OFF 1 ON 2 ON / MODE: ETTL M P.Fn-06: Beep 0 ON 1 OFF P.Fn-07: Fan 0 ON 1 OFF P.Fn-08: Modeling lamp (brightness, color) Brightness: 5 levels Color: 5 levels P.Fn-09: Modeling lamp (lit time) 0 5 min. 1 30 min. 2 Unlimited |
| Dust and water resistance:
|
Supported *Water-resistant performance to EOS-1 D series |
| Transmission status display:
|
lamp LCD Panel Sender Receiver Connected Yes Yes On (in green) Sender, Receiver Not Connected 0.1 sec. 0.9 sec. Off Sender, Receiver Too many units/Error 0.1-0.6 sec. Blinking at 2 Hz (green) Sender, Receiver Sub-sender 0.1-0.4 sec. On (in green) Sub Sender Confirmation of linked shooting Yes On (in green) RELEASE |
| Wireless settings:
|
Sender Supported *Secondary and additional units serve as sub-senders and display a "SUB SENDER" icon. * Sub-senders cannot be remotely controlled by a receiver unit Receiver Supported |
| Techs specs detailed pdf:
|
View Full Details of Technical Specification |
| External power source:
|
Supported *Optional - Supports CP-E 4 N Battery Pack |
| Modeling lamp 999br illumination time:
|
Approx. 3 hr 20 min. Continously *With P.Rn-09 set to [2], and using a fully charged Battery Pack LP-EL |
| Feb:
|
±3 stops, in 1/3-stop or 1/2-stop* increments. * FEB is automatically deactivated after three shots. * Can be used with flash exposure compensation and FE lock. * 1: Corresponds to exposure level increments on the camera. |
| Remote control from a receiver:
|
Functions on sender units that can be controlled remotely from receiver units: • Remote release • Test flash • Modeling flash * Sub-senders cannot be controlled remotely |
| Communication functions:
|
Compliance standards IEEE 802.15.4, ARIB STD-T 66 Communication method Primary modulation: OQPAK Secondary modulation: DS-SS Transmission frequency 2405-2475 MHz Channel Channel 1-15 Setting: Auto / Manual Wireless radio ID 0000 to 9999 Setting: Manual Transmission range** Approx. 98.4 ft. / 30 m Groups Up to 5 groups (A-E) * Sender units are set to Group A Number of possible units for communication Up to 16 units of senders and receivers in total Max. sender units Up to 15 * Secondary and additional units serve as sub-senders Max. receiver units Up to 15 * 1: Without any obstructions between senders and receivers, and without radio interference from other devices. * 2: Transmission range may be shorter depending on factors such as how units are arranged, the surrounding environment, and weather conditions. |
| Linked functions:
|
Supports linked shooting with automatic shutter release of up to 16 cameras (sender:1, receivers:15) linked to shutter release on the sender camaera. *Shooting is not simultaneous, because receiver cameras shoot slightly afterthe sender camera shutter release timing. |
| Compatible cameras:
|
Type-A EOS cameras (E-TTL II/E-TTL autoflash) |
| Wireless:
|
Overview of optical wireless firing control Sender flash firing On: Fires as Group A Channel 1-4 OFF: Does not fire. * Firing (optical transmission) to control receivers may be visible in shots. Flash mode E-TTL II / E-TTL autoflash Manual flash Stroboscopic flash |
| Modeling lamp:
|
Brightness* Manual setting: 1 (Low) to 5 (High) *Default setting: 5 (High) Color temperatue* Manual setting: 1 (Orange) to 5 (White) *Default setting: 1 (Orange) On Illuminated in response to the following operations • Pressing the button • Pressing the shutter button halfway twice (with C.Fn-18 set to 1). Off Off under the following conditions • Releasing the shutter button • Pressing the button • Pressing the shutter button halfway twice (with C.Fn-18 set to 1) • Timer: 5 min. / 30 min. / Unlimited (can be changed in P.Fn-09) *1: set in P.Fn-08 Higher LED temperatue from prolonged illumination triggers the following safety functions Temperature in-crease LCD Panel Modeling Lamp Operation Icon display Illumination Level 1 On Modeling lamp brightness is lowered one level, if at the maximum level Level 2 Blinking (2 Hz) Modeling lamp is turned off |
| Power source:
|
Battery Pack LP-EL *AA/LR 6 Alkaline Batteries and Ni-MH batteries cannot be used. |
| Af assist beam:
|
System: Infrared AF-assist beam Compatible AF System:- TTL second image formation phase-difference AF Supporting 1–191 AF points (28 mm or longer focal length) • Phase-difference AF during viewfinder shooting Effective Range (Approx.): At center: 2.0–32.8 ft./0.6–10.0 m At periphery: 2.0–16.4 ft./0.6–5.0 m |
| Fe memory:
|
Supported • Stores the flash output of E-TTL II / E-TTL autoflash and automatically sets the stored output level if users switch the flash mode to manual flash. * Flash output may vary slightly between E-TTL autoflash and manual flash. • Colors may vary between E-TTL autoflash and manual flash under the following conditions: * When the color temperature of the Speedlite light differs greatly from that of ambient lighting and flash exposure compensation is set toward the negative end. * When E-TTL balance is set to (Ambience priority). • Differences in colors between E-TTL autoflash and manual flash may be reduced by taking one of the follow steps: * Using the provided color filter. * Setting white balance to an option other than AWB. 0: Off Disabled 1: On Enabled 2: On / Mode ETTL - M Enabled/ One-touch switching between E-TTL autoflash and manual flash |

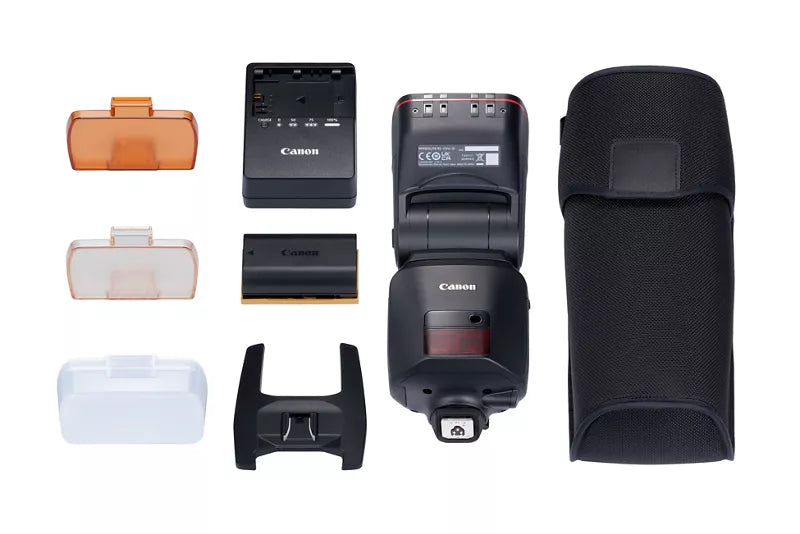

| In the box:
|
Speedlite EL-1; Soft Case (for Body/SBA-EL/SCF-EL); Stand; Bounce Adapter SBA-EL; Color Filter SCF-ELOR 1 (Light Orange); Color Filter SCF-ELOR 2 (Dark Orange); Battery Pack LP-EL; Battery Charger LC-E 6 |
| Wireless firing control:
|
via radio transmission Flash Mode E-TTL II / E-TTL autoflash Manual flash Stroboscopic flash Group firing E-TTL II / E-TTL autoflash Manual flash Auto external flash metering |
