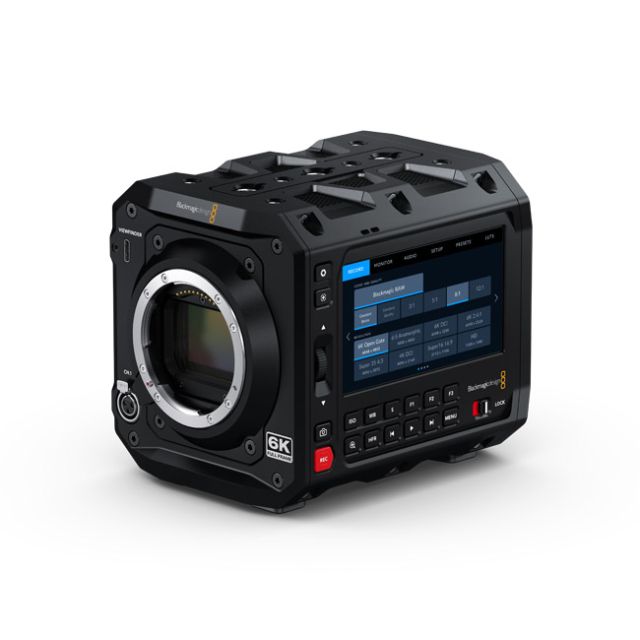

Blackmagic Design PYXIS 6K (L-Mount)

Blackmagic Design PYXIS 6K (L-Mount) Blackmagic Design's PYXIS 6K is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 6048 x 4032 full frame HDR sensor with built in optical low pass filter, dual native ISO, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. The PYXIS 6K is available in three different models with fixed L-Mount, PL or locking EF lens mounts! Camera Features Effective Sensor Size 36mm x 24mm (Full Frame) Lens Mount Active L-Mount. Lens Control Iris and focus on supported lenses. Dynamic Range 13 Stops. Dual Native ISO 400 and 3200 Shooting Resolutions 6048 x 4032 (Open Gate 3:2) up to 36 fps /4832 x 4032 (Anamorphic 6:5) up to 36 fps /6048 x 3200 (6K DCI 17:9) up to 48 fps /6048 x 2520 (6K 2.4:1) up to 60 fps /4096 x 3072 (Super 35 4:3) up to 50 fps /4096 x 2160 (4K DCI 17:9) up to 60 fps /2112 x 1184 (Super 16 16:9) up to 100 fps /1920 x 1080 (1080 HD 16:9) up to 120 fps Frame Rates Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD. Focus Auto focus available using compatible lenses. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses. Screen Dimensions 4" 1920 x 1080. Screen Brightness 1500 nits Screen Type LCD capacitive touchscreen. Metadata Support Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. Controls Touchscreen menus on 4 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button, 1 x Playback Button, 1 x Next Clip Button, 1 x Previous Clip Button, 1 x Lock Switch. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours. Connections Total Video Inputs None Total Video Outputs 1 x 12G-SDI up to 2160p60 1 x Viewfinder USB-C with power, /data, video and locking connector. Analog Audio Inputs 1 x mini XLR analog audio in, switchable between /mic with phantom power support and line level /(up to +14dBu). 1 x 3.5mm Stereo Input. Analog Audio Outputs 1 x 3.5mm headphone jack. Reference Inputs Tri-Sync/Black Burst and Timecode. Computer Interface USB Type-C for external drive recording, /PTP camera control and software updates. Ethernet 1 x 1Gb/s RJ"˜45 connector supporting 10/100/1000 BASE-T. Audio Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker. Media Media 2 x CFexpress Type B card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and H.264 Proxy Recording.
